Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1T2119
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Part Number :
1T2119
Compressed Height :
82 MM
Extended Height :
290 MM
ContiTech :
6 6.5B-11 S 027
Material :
Rubber
Sample :
Available
Working Temperature :
-40℃+70℃
Description

Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag

Product Corresponding Models

Firestone W01-358-2119

Firestone W013582119

Firestone W01 358 2119
UPC 767555002124
Rowe Truck Number ASC1400HL
Hendrickson Trailer Number: S-2394 / B2394
Granning Number: 5122
ContiTech Bellows Number: 6 6.5B-11
ContiTech Number: 6 6.5B-11 S 027, 68108
Goodyear Bellows Number: 566-18-3-003

Goodyear Bellows Number: 566183003

Goodyear Bellows Number: 566 18 3 003
Goodyear Part Number: 1R9-065

Goodyear Part Number: 1R9065

Goodyear Part Number: 1R9 065
Firestone Bellows Number: 1T14C-1

Product Detailed Datas

[1] Mounting thread of top plate: 1/2-20UNF
[2] Mounting thread of piston: 1/2-13UNC
[3] Cover plate diameter: 160 mm
[4] Minimum height: 82 mm
[5] Maximum height: 290 mm
[6] Center-to-Center distance: 86 mm
[7] Natural diameter: 185 mm
[8] Air hole: 1/4NPTF, 3/4-16UNF
[9] Working stroke: 208 mm
[10] Piston width: 179 mm

The Structure of Complete Air Springs

1. Stud

A permanent part of the bead palte assembly, used to attach the air springs to the suspension.

2. Combo Stud

Combination mounting stud and air fitting.

3. Blind Nut

A permanent part of the bead plate assembly, used to attach the air spring to the suspension.

4. Air Fitting Hole

A tapped hole that provides an air entrance for the part.

5. Bead Plate

Steel plate, permanently crimped to the bellows to form an airtight assembly.

6. Bellows

The air spring bellows is a flexible, airtight composite of rubber and reinforced fabric, which allows the assembly to roll up and down, providing an air-cushioned spring effect within the suspension.

7. Bumper (Option)

A solid, molded rubber fail-safe device used on many suspension applications. Prevents excessive damage to vehicle and suspension in the case of sudden air pressure loss.

8. Piston

The lower section of 1T style of air spring made from aluminum, steel, or fiber reinforced composite. Provides lower mounting arrangement for the air spring in the form of tapped holes or studs.

9. Piston Bolt

Attaches the piston to the bellows assembly. Extended on the bottom of the piston, in some cases, to serve as a means of attaching the spring to the suspension.

10. Girdle Hoop

A ring molded into the bellows of the convoluted type air spring.

Other Kinds of Complete Rubber Air Bellows

Firestone Bellows No. Firestone Part Number Firestone Bellows No. Firestone Part Number
1T14C1 W01-358-2119 1T14C1 W01-358-2120
1T14C1 W01-358-2131 1T14C1 W01-358-5311
1T14C1 W01-358-5323 1T14C1 W01-358-5343
1T14C3 W01-358-5405 1T14C3 W01-358-5406
1T14C3 W01-358-5408 1T14C3 W01-358-5410
1T14C3 W01-358-5412 1T14C3 W01-358-5414
1T14C3 W01-358-5422 1T14C3 W01-358-5423
1T14C3 W01-358-5434 1T14C3 W01-358-9478
1T14C5 W01-358-5335 1T14C5 W01-358-5336
1T14C5 W01-358-5345 1T14C5 W01-358-5354
1T14C5 W01-358-8868 1T14C6 W01-358-5439
1T14C6 W01-358-5730 1T14C6 W01-358-8977
1T14C6 W01-358-8979 1T14C7 W01-358-5426
1T14C7 W01-358-5702 1T14C7 W01-358-5710
1T14C7 W01-358-5712 1T14C6 W01-358-8979
1T14C7 W01-358-5426 1T14C7 W01-358-5702
1T14C7 W01-358-5710 1T14C7 W01-358-5712

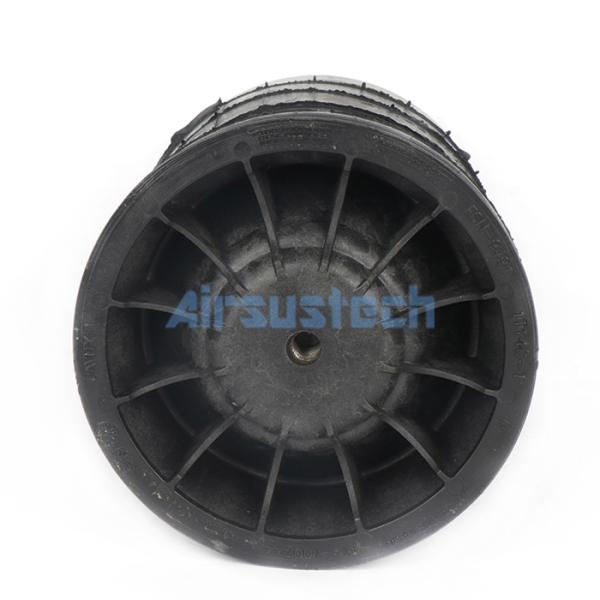

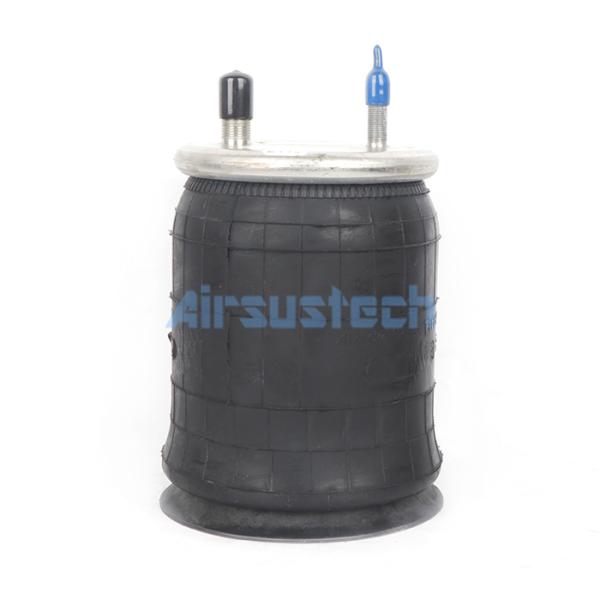

The Related Pictures of 1T2119

Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air BagDurable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag

Factory Workshop
Durable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air BagDurable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air BagDurable Rowe Truck Suspension Air Spring ASC1400HL Firestone W01-358-2119 Air Bag
