Product Description:

Our air suspension kits are designed to provide excellent load support, improving your vehicle's stability and handling. Air suspension components are rigorously tested to ensure they meet the highest quality standards, giving you peace of mind on the road.

With an assembled weight of 16.5 kg, our suspension air springs are easy to install and use. Designed to provide a reliable and durable solution for your air suspension needs.

Our suspension air springs have an operating stroke of a minimum of 115 mm to a maximum of 495 mm, ensuring you get the perfect ride height and comfort for your vehicle. Our suspension air springs also come with a one-year warranty, giving you the assurance you need when investing in our products.

Our suspension air springs are packed in sturdy cartons to ensure they are well protected during transportation. With our suspension air springs, you can be assured of a high-quality product that will last.

Features:

• Product Name: Suspension Air Springs
• Working Stroke: 380 MM

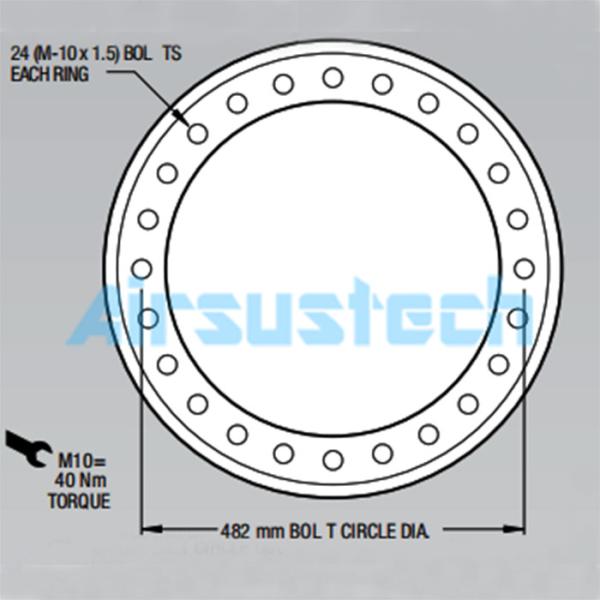

• Bolts Distance D: 482 Mm
• Working Stroke: MIN 115 MM To MAX 495 MM
• Durability: High Durability
• Cross Reference: Firestone W01-358-7324
• Cross Reference: Firestone W01 358 7324
• Cross Reference: Firestone W013587324

Technical Parameters:

AIRSUSTECH introduces its latest air spring, the 3H520312-482. This air spring is designed to provide exceptional performance and durability. Here are some of its specifications:

• Recommended max working height: 390mm
• Clamp ring diameter: 517mm
• Mounting bolts: 48x 3/8
• Temperature range: -40 to + 70°C
• Style: 320
• Stroke: 369mm
• Max. load at 7 bar: 156.73kn
• Max diameter at 7 bar: 569mm
• Max height: 483mm
• Min height: 114mm

This air spring is recommended for various types of heavy-duty machinery. Its ability to sustain high loads at high pressure and temperature ranges make it a reliable and efficient choice for industrial applications. Its dimensions and mountings make it easy to install and maintain.

Support and Services:

The Suspension Air Springs product technical support and services include:
