Specifications
Brand Name :
AIRSUSTECH Air Springs
Model Number :
1B 4 1/2 P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Cover Plate Diameter :
110 MM
Bellows Natural Diameter :
125 MM
Operation :
Gas-Filled
Bolts Type :
3×M6
Material :
Rubber+Aluminum
Other OEM :
4 1/2"X1
Description

W01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air Suspension

Product Description:

One common use for AIRSUSTECH Air Bags is with compressors in the transportation industry. Whether you're hauling heavy loads or transporting equipment, these air bags can help ensure a smooth ride and prevent damage to your vehicle or cargo. With their durable construction and reliable performance, they are a great choice for anyone looking to improve their transportation operations.

Specifications and Technical Parameters: 1B 4 1/2 P

Specifications:

Air Hole G 3/8
Nuts Type 3×M6
Distance Air Hole Betweeen Nuts 46.5 MM
Top Cover Plate Diameter 110 MM
Bottom Cover Plate Diameter 110 MM
Bellow MAX. Diameter 125 MM
Installation Diameter 140 MM
Minimum Height 50 MM
Maximum Height 90 MM
Pressure Ability 3-8 Bar
Mini Pressure 0 Bar

Technical Parameters:

Pressure [bar] 3 4 5 6 7 8 Vol. V [I]
Force (Load) [kN] 1.5 2.1 2.7 3.2 3.8 4.4 0.27
Spring Rate [N/mm] 112 141 169 198 226 253
Natural frequency [Hz] 4.2 4.1 4.0 3.9 3.8 3.8

Pressure [bar] 3 4 5 6 7 8 Vol. V [I]
Height H [mm] 80 1.02 1.44 1.87 2.3 2.74 3.2 0.32
70 1.58 2.15 2.7 3.3 3.88 4.5 0.27
60 2.17 2.89 3.62 4.34 5.08 5.85 0.22


Cross References:

Firestone

W01-R58-4050, W01R584050, W01 R58 4050

WO1-R58-4050, WO1R584050, WO1R584050
Contitech

FS 44-5 DI, FS 44 5 DI, FS445DI, FS44-5 DI

FS44-5DI, FS 445 DI, FS 44-5DI, FS 445DI
NORGREN PM/31041
PARKER 9109400
DUNLOP PNEURIDE 4 1/2" x 1
DUNLOP SPRINGRIDE SP2334, SP 2334

Support and Services:

  1. Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
  2. We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
  3. Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

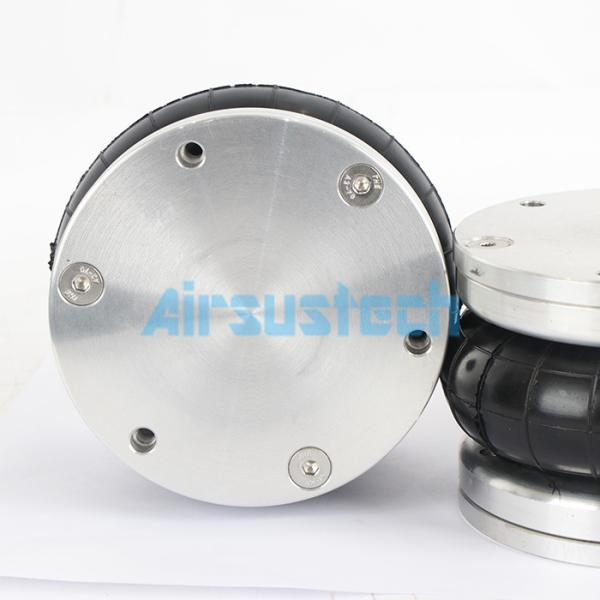

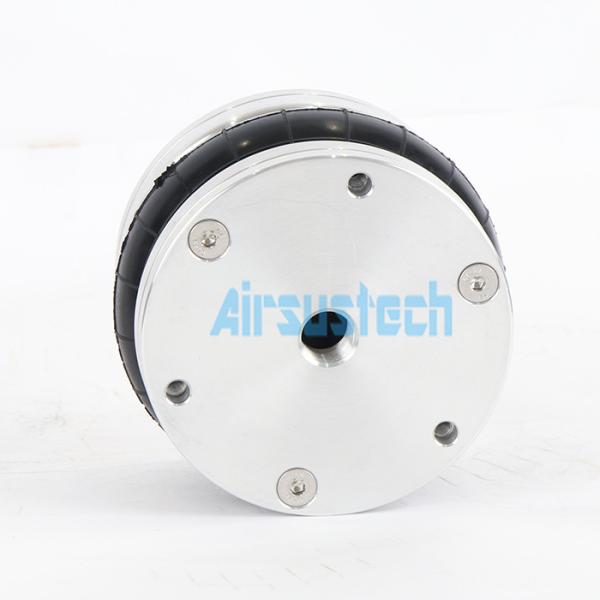

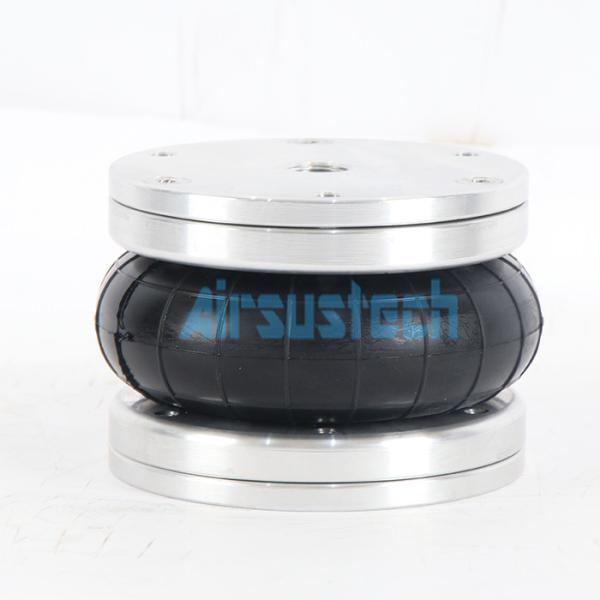

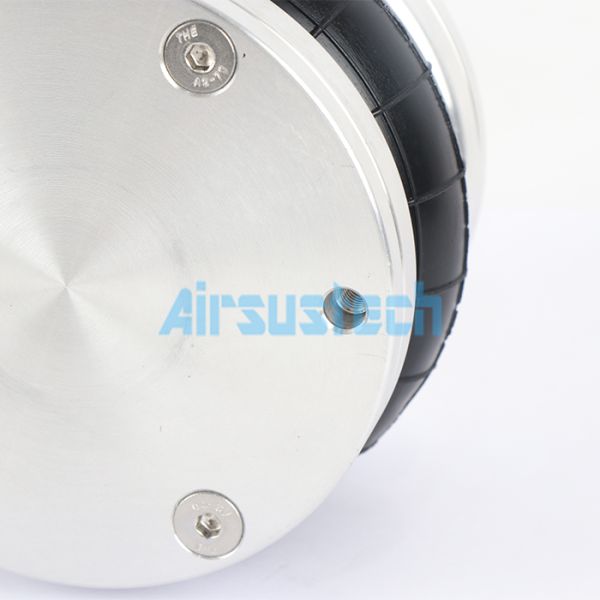

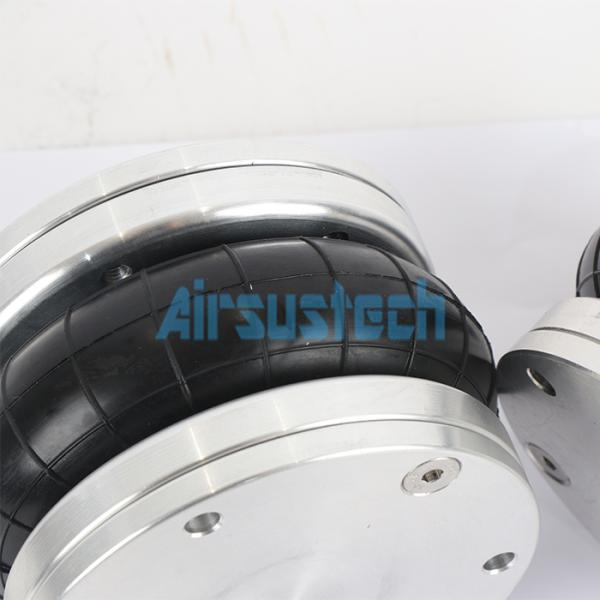

The Real Pictures of 1B4 1/2P:

W01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air SuspensionW01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air Suspension
