FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B200-10
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Air fitting :
G 1/4
Compressed Height :
51 MM
Max Expanded Height :
140 MM
Bellow Type :
Single Convolution
Quality Assurance :
12 Months
Product Name :
AIRSUSTECH Air Springs
Product Number :
1B200-10
Samples :
Avaliable
Description

FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator

Product Description:

The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convolute Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Technical Parameters:
Product Specifications: FS 200-10 G 1/4
Gas Hole G 1/4
Top Plate Hole/Stud Qty 2×M10×1.5
Bottom Plate Hole/Stud Qty 2×M10×1.5
Top Cover Plate Diameter 160 mm
Bottom Cover Plate Diamtere 160 mm
MAX. Diameter 220 mm
Distance Gas Hole Between Nut 44.5 mm
Distance Between Nuts 89 mm
Natural Height 110 mm

Product Specifications: FS 200-10 G 3/4
Gas Hole G 3/4
Top Plate Hole/Stud Qty 2×M8×1.5
Bottom Plate Hole/Stud Qty 2×M8×1.5
Top Cover Plate Diameter 160 mm
Bottom Cover Plate Diamtere 160 mm
MAX. Diameter 220 mm
Distance Gas Hole Between Nut 38 mm
Distance Between Nuts 89 mm
Natural Height 110 mm


Cross References:

Contitech

FS 200-10, FS 200 10, FS200-10, FS20010

Firestone

W01-M58-6374, W01 M58 6374, W01M586374

WO1-M58-6374, WO1 M58 6374, WO1M586374

Phoenix

SP 1B 12, SP1B 12, SP 1B12, SP1B12

Bosch

822419004

Dunlop(FR)

9’’1/4x1 S09101

Festo

EB-250-85, EB 250 85, EB25085

Norgren

PM/31091(81/4x1)

​

Applications:
The 1B200-10 Air Springs give your trucks, trailers and buses a new high in productivity and long life. The AIRSUSTEHC Air Springs provide constant comfort and deliver trouble-free service. The 1B200-10 air springs are typically used in applications such as:
  • Material Handling Industry
  • Lumber Industry
  • Aluminum Can Recycling
  • Container Manufacturers
  • Paper Industry
  • Press Manufacturing
  • Vibrating Equipment & Conveyors
Air Spring Installation:
  1. Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
  2. Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
  3. If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
FAQ:
Q1: What is your warranty term?
A1: There is a 12 months warranty for our export products has run out from the date of the shipment.
Q2: Can I use my own logo?
A2: Sure. We can do as per the customer's requirements.
Q3: I can not find out the items what I want from your website, can you offer the products i need?
A3: YES. One of our service term is sourcing the products that our customers need, so please tell us the details information of the item.
Q4: How do you guarantee quality?
A4: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

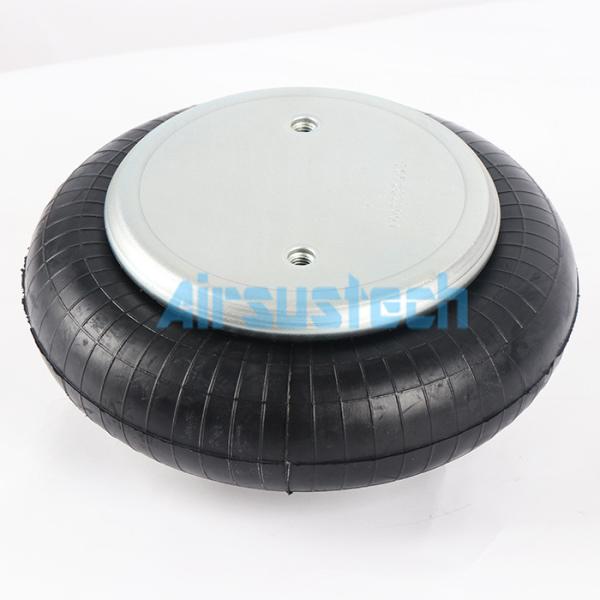

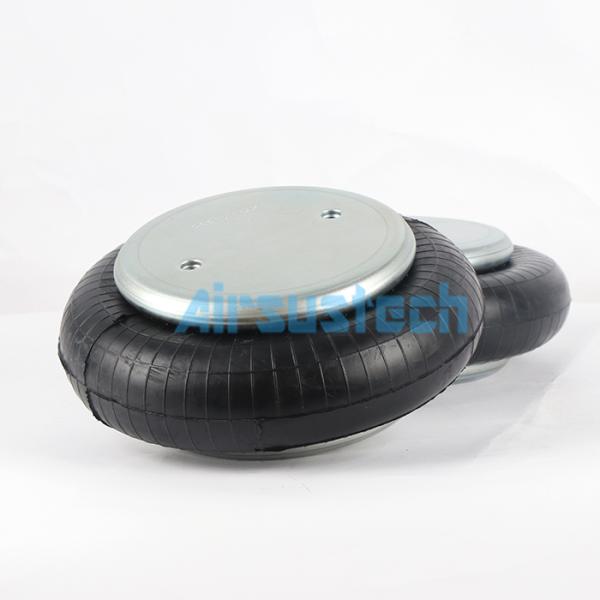

The Real Pictures of 1B200-10 Air Springs

FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator

FS 200-10 Contitech Suspension Air Bags 220MM Diameter Rubber Bellows Air Actuator
