Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Number :
2B7070
Other OEM NO. :
Festo 36491
Bellow Type :
Double Convoluted
Design Height :
162 MM
Screw Type :
2×M8
Material :
Rubber And Steel
Warranty :
12 Months
Description

AIRSUSTECH 2B7070 Air Suspension Cross Festo 36491 For Industrial Machine

Product Description

AIRSUSTECH rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.

Product Specifications

Top Cover Plate Diameter 105 MM
Screw Center Distance of Top Cover Plate 44.5 MM
Bottom Cover Plate Diameter 105 MM
Screw Center Distance of Bottom Cover Plate 44.5 MM
Gas Hole G 1/4
Rubber Bellow Natural Diameter 146 MM
Design Height 160MM

Product Techniacal Data

Force F[kN]

Pressure p [bar] 3 4 5 6 7 8
Height H[mm] 180 1.6 2.3 2.9 3.5 4.1 4.7
160 2.4 3.2 3.9 4.7 5.6 6.4
140 2.9 3.9 4.8 5.8 6.8 7.8
120 3.4 4.5 5.7 6.8 7.9 9.2
100 3.9 5.2 6.5 7.8 9.1 10.4
80 4.3 5.7 7.1 8.5 10.0 11.4

Other OEM Number

Festo 36 491, 36494
Festo EB-165-125, EB 165 125, EB165125


Support and Services

  1. The Suspension Air Springs product technical support and services include:
  2. Expert troubleshooting assistance to diagnose and resolve technical issues
  3. Guidance on proper installation and maintenance procedures
  4. Product documentation, including user manuals and technical specifications
  5. Product training and education for customers and service technicians
  6. Warranty and repair services, including replacement parts and exchange programs
  7. Customer support for urgent technical issues or service needs

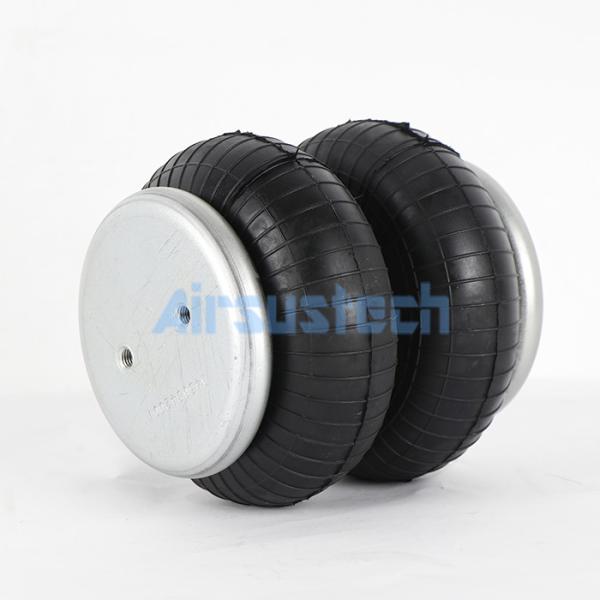

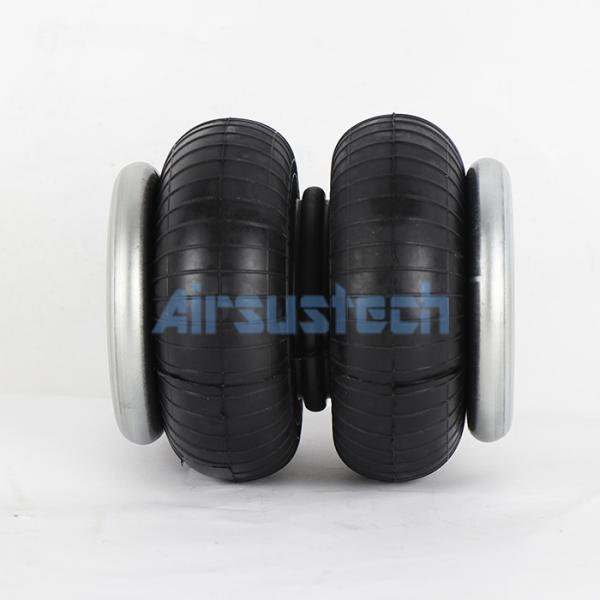

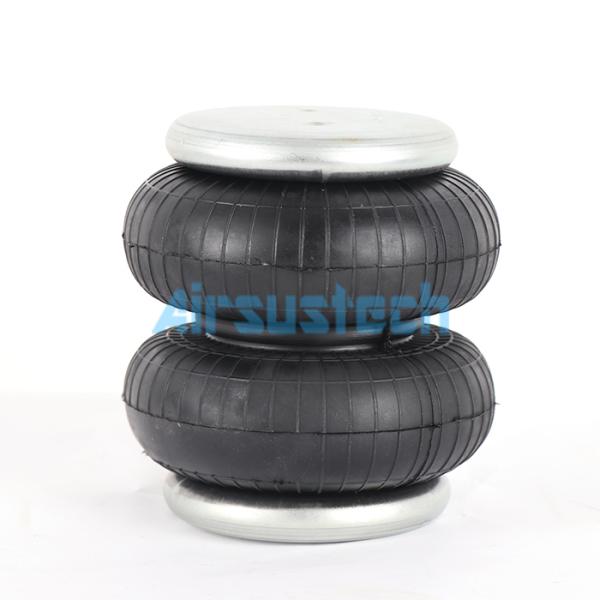

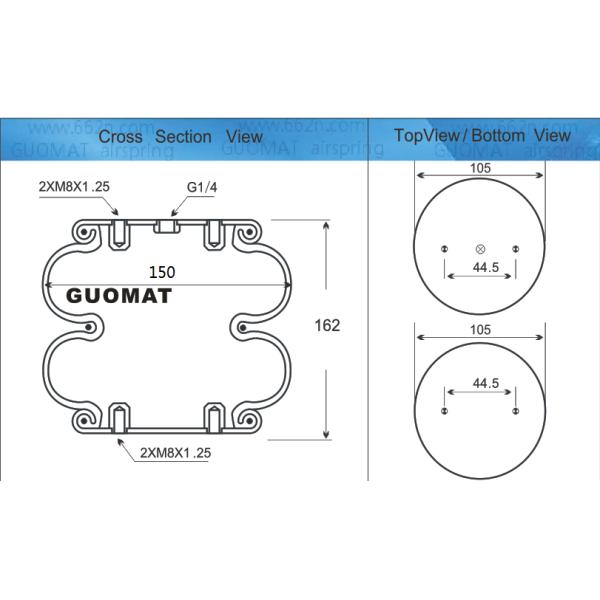

The Drawing And Real Pictures of 2B7070

AIRSUSTECH 2B7070 Air Suspension Cross Festo 36491 For Industrial Machine

AIRSUSTECH 2B7070 Air Suspension Cross Festo 36491 For Industrial Machine
