Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B12×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Product NO. :
2B12×2T
OEM NO. :
Dunlop 12" x 2
Operation :
Gas-Filled
Max. Diameter :
330 MM
Space Required :
345 MM
Working Temperature :
-40℃+70℃
Vibration Frequency :
2.7 Hz
Description

Industrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension

Product Details

Top Cover Plate Diameter 260 mm
Screw Center Distance of Top Cover Plate 232 mm
Bottom Cover Plate Diameter 260 mm
Screw Center Distance of Bottom Cover Plate 232 mm
Top Cover Plate Screw (Nut) Tooth 4×M10
Bottom Cover Plate Screw (Nut) Tooth 4×M10
Gas Gole/Gas Fitting/Air Hole/Air Inlet
Air Inlet 1/2 BSP
Rubber Bellow Max. Dia 330 mm
Minimum Height 74 mm
Maximum Height 240 mm
Bellows Structure Double Convoluted
Design Height 160 mm

Parts Interchanges

Norgren OEM NO. M/31122
M 31122
M31122
Firestone OEM NO. W01-R58-4061
W01 R58 4061
W01R584061
WO1-R58-4061
WO1 R58 4061
WO1R584061
Dunlop Pneuride OEM NO. 12" x 2
12' x 2
12x 2
Contitech OEM NO. FD 412-18 1/2 M10
FD412-18 1/2 M10
FD41218 1/2 M10
FD 41218 1/2 M10
FD 412 18 1/2 M10
FD412 18 1/2 M10
Parker OEM NO. 9109041

AIRSUSTECH Air Suspension Advantages


1. Excellent materials
2. Effective shock
3. In situ installation
4. Comfortable and stable
5. Long life
6. Slove the abnormal noise

Air Spring Installation

1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

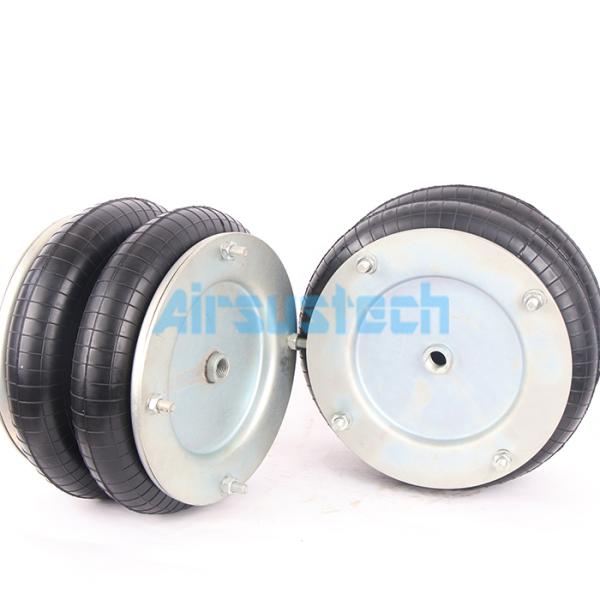

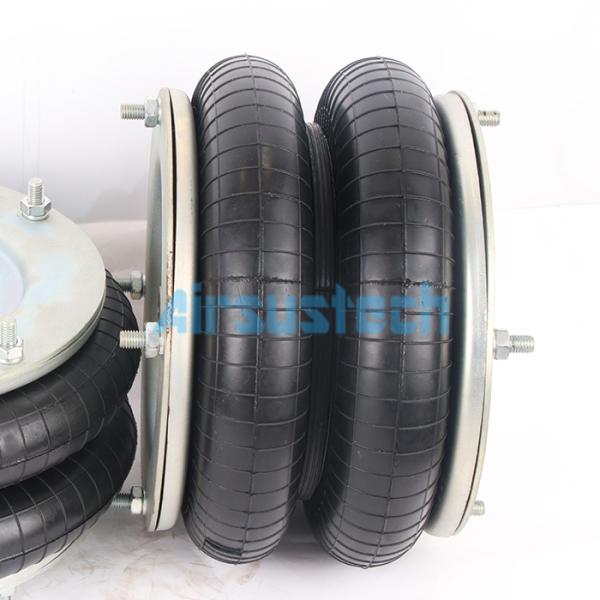

Real Pictures of 2B12×2T

Industrial Air Spring Parker 9109041 Double Convoluted Flange Air SuspensionIndustrial Air Spring Parker 9109041 Double Convoluted Flange Air Suspension
