Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B12-304
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Model NO. :
3B12-304
OEM NO. :
Leland Sc2132
Function :
Reduce Shock
Total Stroke :
13.2 In.
Air Inlet :
1/4NPTF
Bellows Type :
Triple Convoluted
Description

Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.



Product Details

  • Diameter of the Top Cover Plate: 9 in.
  • Center-to-Center Distance of Screws on the Top Cover Plate: 9 in.
  • Diameter of the Bottom Cover Plate: 9 in.
  • Center-to-Center Distance of Screws on the Bottom Cover Plate: 9 in.
  • Screw (Nut) Thread Count for the Top Cover Plate: 3/8-16UNC
  • Screw (Nut) Thread Count for the Bottom Cover Plate: 3/8-16UNC
  • Air Inlet: 1/4NPTF
  • Maximum Diameter of the Rubber Bellow: #
  • Minimum Height: 4.8 in.
  • Maximum Height: 18 in.


Cross References

Air Spring Supplier: Firestone
Competitor/Supplier Number: W01-358-8006, W01 358 8006, W013588006

Air Spring Supplier: Goodyear
Competitor/Supplier Number: 3B12-304, 3B 12-304, 3B12304, 3B12 304, 578933100

Air Spring Supplier: Triangle
Competitor/Supplier Number: 6334, 4430

Air Spring Supplier: Contitech
Competitor/Supplier Number: FT 330-29 430, FT 33029 430, FT330-29 430, FT33029 430

Air Spring Supplier: Leland
Competitor/Supplier Number: Sc2132

Air Spring Supplier: Arvin Meritor
Competitor/Supplier Number: 200320

Goodyear Other Type Air Springs

Single Convoluted Double Convoluted Triple Convoluted
1B12-305 1B12-313 2B6-530 2B6-531 3B12-304 3B12-305
1B14-350 1B14-351 2B6-532 2B6-535 3B14-351 3B14-353
1B14-352 1B14-362 2B6-536 2B7-540 3B14-354 3B15-375
1B14-364 1B15-375 2B7-541 2B7-542 3B15-376 3B15-377
1B15-376 1B15-377 2B7-545 2B7-546 3B15-378
1B15-378 2B8-550 2B8-552
2B8-553 2B8-554
2B9-200 2B9-201
2B9-204 2B9-205
2B9-216 2B9-250
2B9-251 2B9-253
2B12-309 2B12-218
2B12-425 2B12-429
2B12-437 2B12-416
2B14-352 2B14-353
2B14-354 2B14-355
2B14-362 2B14-363
2B14-452 2B15-375
2B15-376 2B15-377
2B15-378 2B19-8433
2B22-8539
Product Applications
  1. Centrifugal separators
  2. Large drying machines
  3. Vibratory conveyors
  4. Electronic equipment
  5. Compressors
  6. Conveyor loading points
  7. Textile looms
  8. Rotary shaft actuators
  9. Conveyor or transfer systems
  10. Vertical lift force for platforms and rotating tables
  11. Injection or ejection of parts in manufacturing equipment
  12. Scissor lifts
  13. Clutch and brake systems
  14. Amusement park rides

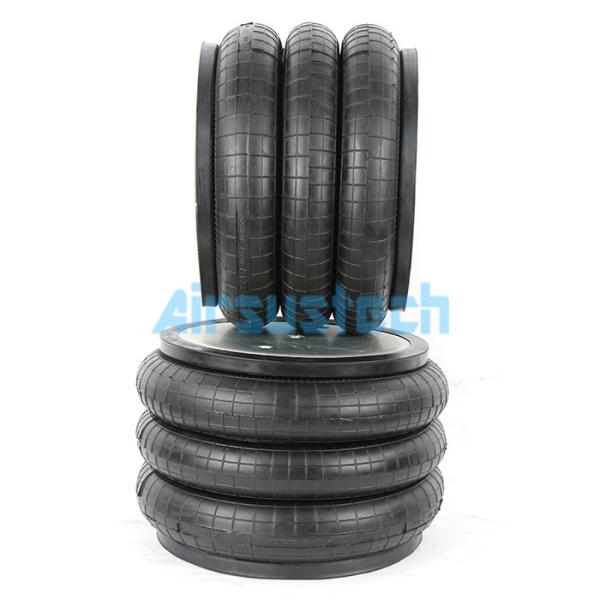

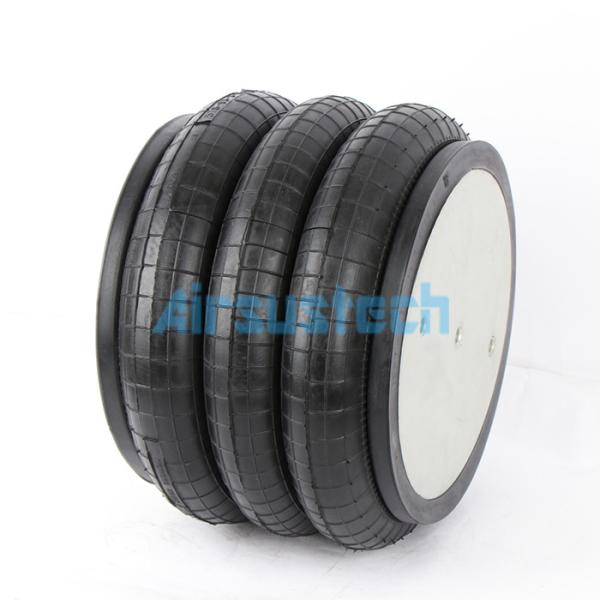

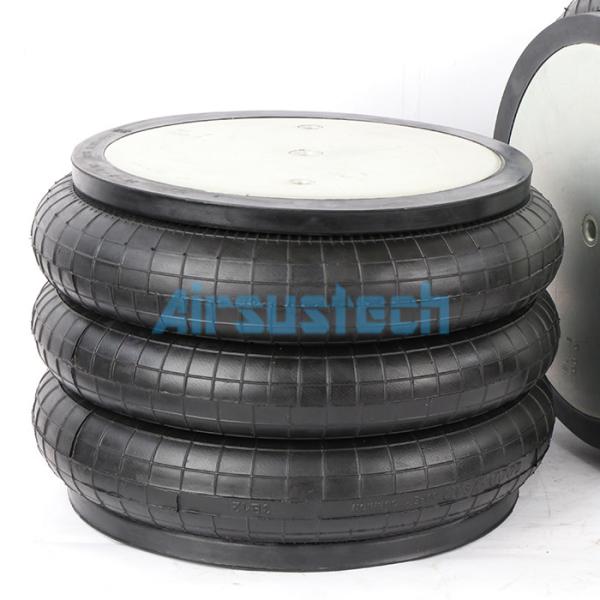

Product Images

Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.
