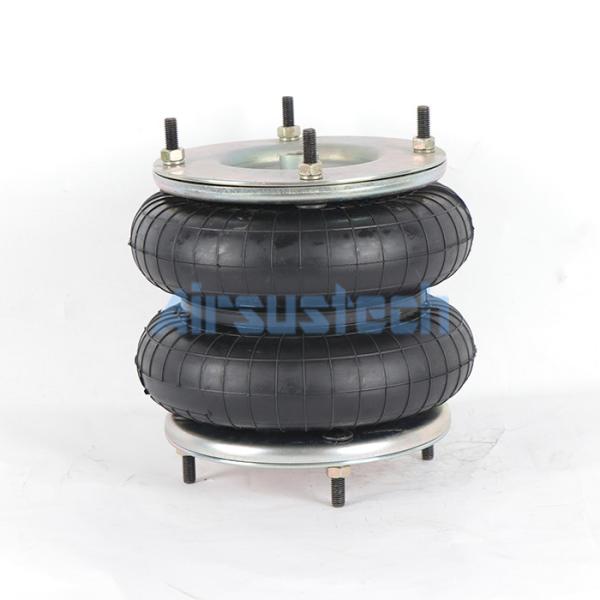

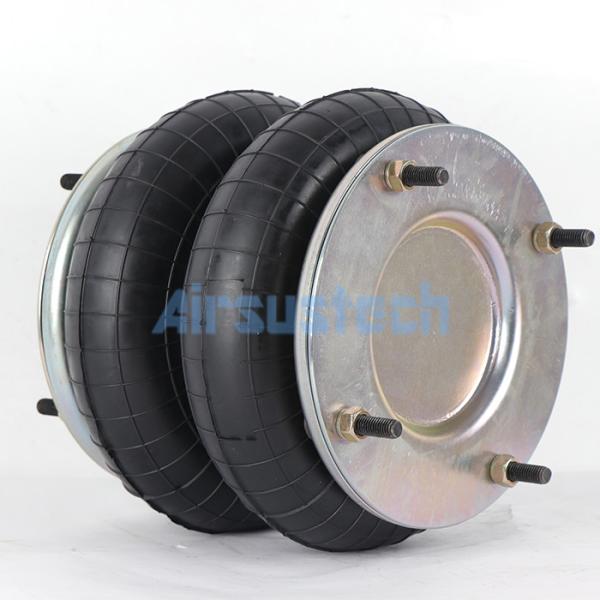

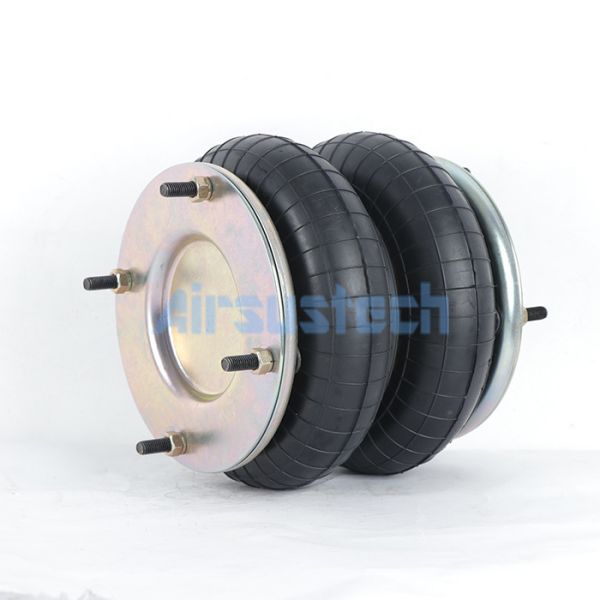

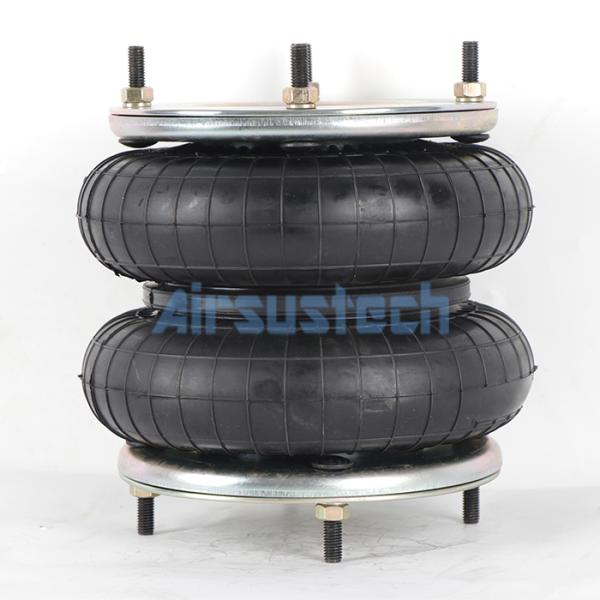

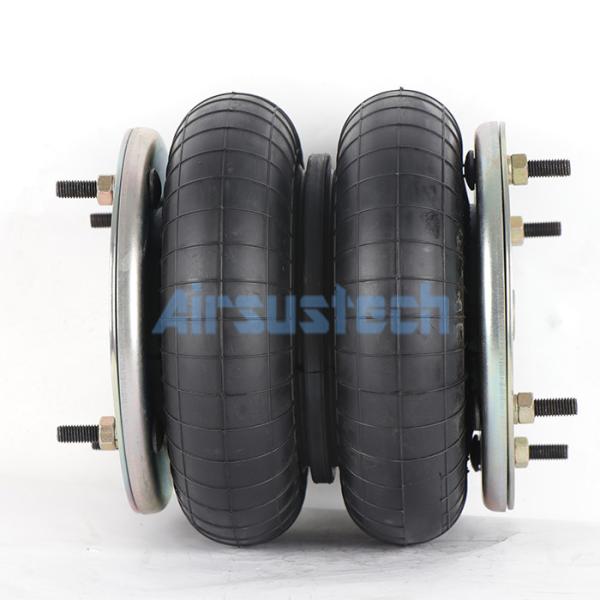

Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B10×2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Cross References :
Dunlop 10''×2
Total Stroke :
170 MM
Plate Diameter :
210 MM
Working Temperature :
-40℃+70℃
Quality :
100% Tested
Function :
Ruce Shock/Shock Absorber
Description

High Quality Parker 9109021 Air Suspension Dunlop 10''×2 Flange Air Rubber Bellow

AIRSUSTECH Air Spring Knowledges

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. 1B5330 air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.


Product Dimensions

Cover Plate
Top Cover Plate Diameter: 210 mm
Screw Center Distance of Top Cover Plate: 181 mm
Bottom Cover Plate Diameter: 210 mm
Screw Center Distance of Bottom Cover Plate: 181 mm
Nuts/Blind Nuts
Top Cover Plate Screw (Nut) Tooth: 4×M10
Bottom Cover Plate Screw (Nut) Tooth: 4×M10
Gas Gole/Gas Fitting/Air Hole/Air Inlet
Air Inlet: 1/2 BSP
Rubber Bellow
Rubber Bellow Max. Dia: 280 mm
Minimum Height: 70 mm
Maximum Height: 240 mm
Bellows Structure: Double Convoluted

2B10×2T OEM Number

Parker NO.: 9109021

Norgren NO.: M/31102, M 31102, M31102

Firestone NO.: W01-R58-4058, W01 R584058, W01R584058

WO1-R58-4058, WO1 R584058, WO1R584058

Dunlop Pneuride NO.: 10''×2, 10'×2, 10×2

Dunlop PNP NO.: 305450112

Airbag Man NO.: DB1028

Contitech NO.: FD 210-22 DS, FD 21022 DS, FD 210 22 DS

FD210-22 DS, FD210 22 DS, FD21022 DS

Dunlop Springride NO.: SP1538, SP 1538


Double Convoluted Flange Air Spring OEM NO.

AIRSUSTECH NO. Firestone Dunlop Pneuride Dunlop Springride Contitech Norgren Parker
2 3/4''×2 2 3/4''×2 SP2904 FD 22-4 DI 9109009
2B4.5×2 W01R584051 4 1/2''×2 SP2441 FD 44-10 DI PM/31042 9109401
2B4.5×2-E
2B6×2T(AI) W01R584070 6''×(AI) SP2917 FD 76-14 DI PM/31062 9109001A
2B6×2T(Steel) W01R584053 6''×2(Steel) SP1482 FD 76-14 DS M/31062 9109001
2B8×2T W01R584055 8''×2 SP1490 FD 138-18 DS M/31082 9109011
2B10×2T W01R584058 10''×2 SP1538 FD 210-22 DS M/31102 9109021
2B12×2T W01R584061 12''×2 SP1541 FD 412-22 DS M/31122 9109041
2B12''×2-E W01R584039 12''×2 Extend SP2782NB
2B14 1/2''×2T W01R584064 14'' 1/2×2 SP1556 FD 614-26 DS M/31142 9109061
2B16×2T W01R584067 16''×2 SP1557 FD 816-30 DS M/31162 9109171
2B21 1/2''×2T 21 1/2''×2 SP1408 M/31212 9109153
2B26''×2T 26''×2 SP2342 M/31262 9109159

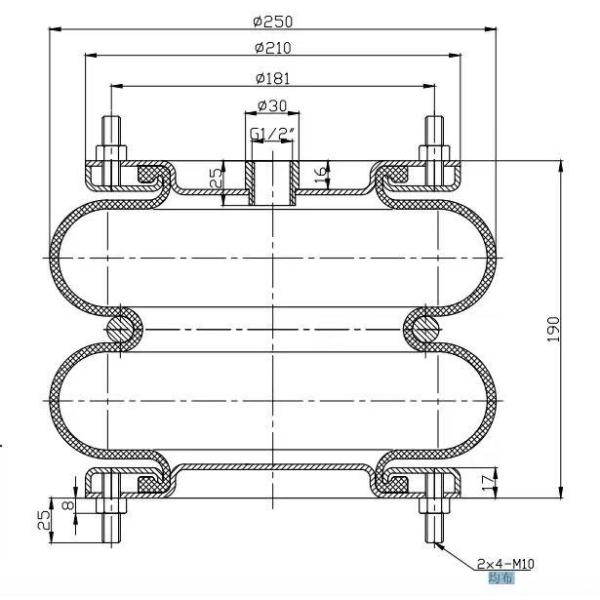

The Drawing of 2B10×2T


Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
Parker 9109021 Air Suspension Dunlop 10''X2 Flange Air Rubber Bellow
