Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Assembly Weight :
3.5 KG
Material :
Rubber And Steel
Product Name :
AIRSUSTECH
Compressed Height :
75 MM
Extended Hieght :
260 MM
Product NO. :
2B6910
Cross References :
W013586910
Structure :
Double Convolutions
Description

Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM

Product Features

Top Plate Hole/Stud Qty: 3
Top Plate Dia: 160
Distance Between Threaded Holes: 89
Distance Between Threaded Hole and Air Hole:44.5
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 160
Natural Outer Diameter: 224mm
Max.Outer Diameter: 251mm
Air Hole:1/4NPTF
Threaded Hole: 3/8-16UNC
Min Height: 75
Max Height: 260

Alternative Items

Firestone

W01-358-6910, W01 358 6910

W013586910, WO1-358-6910

WO1 358 6910, WO13586910

 Dayton 3546910
Contitech

FD 200-19 320, FD 200 19 320

FD20019320, FD 20019 320

FD 200 19320, FD 20019320

 Leland Sc2011
Goodyear 2B9-200/202/216
578423202		 Navistar 554783C1
Triangle 6325/4320 Hendrickson S8768/458433
Taurus KF218-6910 Ridewell 1003586910C
Brake & Wheel M3501 SAF Holland 57006910
Dina A812719/AZ812719 Trailers De 133128
Tuthill 1371 Watson & Chalin AS-0001/AS-0156G

Style 274, We Can Supply

Blind nuts, 1/4 NPT

W01-358-6910, W01 358 6910, W013586910, WO1-358-6910, WO1 358 6910, WO13586910
Blind nuts, 1/4 NPT, bumper
W01-358-6911, W01 358 6911, W013586911, WO1-358-6911, WO1 358 6911, WO13586911
Blind nuts, 3/4 NPT
W01-358-6900, W01 358 6900, W013586900, WO1-358-6900, WO1 358 6900, WO13586900
Blind nuts, 3/4 NPT, bumper
W01-358-6901, W01 358 6901, W013586901, WO1-358-6901, WO1 358 6901, WO13586901
Countersunk steel bead rings, 13/4 bolts, nuts, washers
W01-358-6923, W01 358 6923, W013586923, WO1-358-6923, WO1 358 6923, WO13586923
Rubber bellows only
W01-358-0138, W01 358 0138, W013580138, WO1-358-0138, WO1 358 0138, WO13580138

Product Description

  • Goodyear air springs 2B9-200, 2B9-216, 2B9-210, 2B9-206, 2B9-201, 2B9-245, 2B9-244, 2B9-240, 2B9-230 and 2B9-225 all have the same bellows number - 578-92-3-202. Although their top plate and bottom plate connections are different, the data sheets of these air springs are quite similar when loading up machines or cars.
  • The five air springs, 2B9-201, 2B9-206, 2B9-230, 2B9-244 and 2B9-245, all come equipped with a bumper inside them that is used to limit the minimum stroke of the air spring.
  • Goodyear air spring 2B9-240, however, is of the flange rings kind and does not come with a cover plate. The other air springs have a crimped cover plate fitted, which makes them easier to install with machinery.

The Drawing of 2B6910

Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM

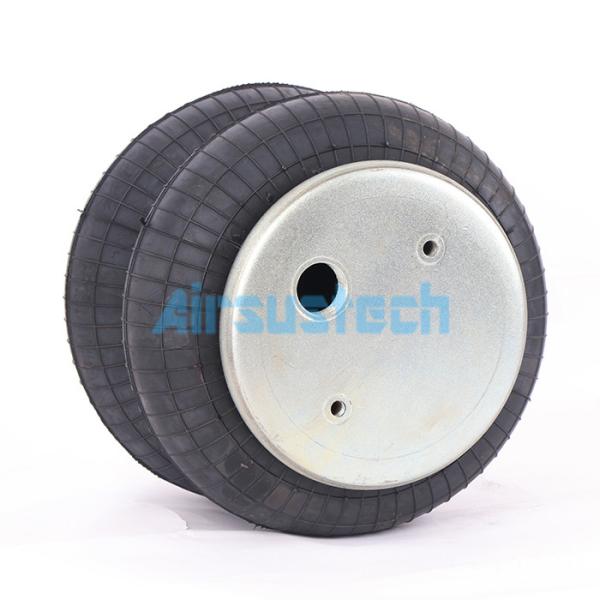

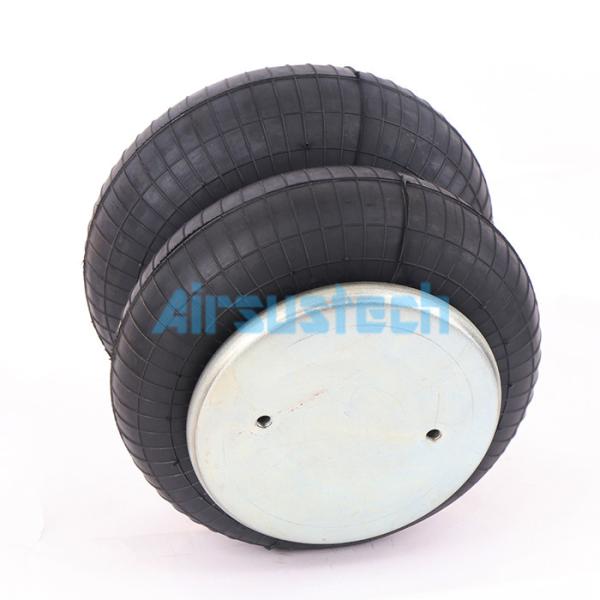

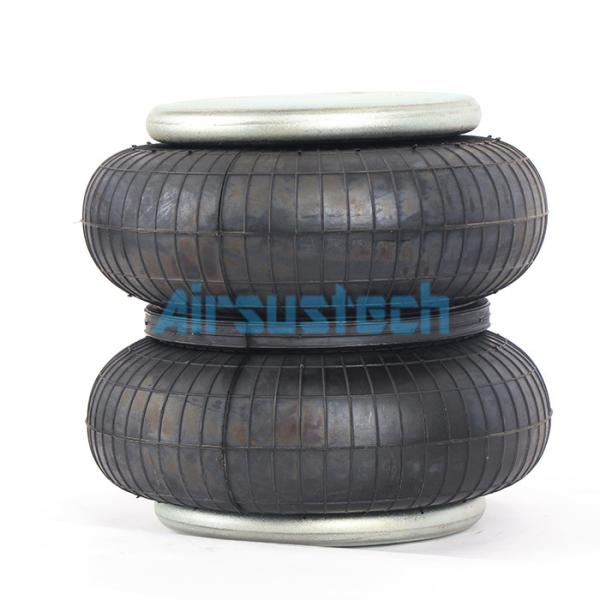

The Real Pictures of 2B6910

Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MMDayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM
