FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B1209
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Name :
AIRSUSTECH
OEM NO. :
1B1209
Minimum Height :
50 MM
Air Fitting :
G 3/4
Rubber Bellow Max Dia :
215 MM
Maximum Height :
115 MM
After-sales Service :
12 Months
Type of Goods :
Air Spring/Air bags/Air Ballons
Description

FS 120-9 Contitech Air Pneumatic Spring Cross Dunlop 8''×1 Air Spring Assembly

Product Information

  • Cover Plate

Top Cover Plate Diameter: 135 mm
Screw Center Distance of Top Cover Plate: 53 mm
Bottom Cover Plate Diameter: 135 mm
Screw Center Distance of Bottom Cover Plate: 53 mm
Distance Between Screw and Air Hole: 26 mm

  • Gas Hole/Air Inlet/Air Fitting

Gas Hole: G 3/4

  • Nut/Blind Nut

Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25

  • Rubber Bellow

Rubber Bellow Max Dia: 215 mm
Minimum Height: 50 mm
Maximum Height: 115 mm

Alternative Items

Contitech

FS 120-9, FS 120 9, FS120-9, FS1209, FS 1209

fs 120-9, FS 120 9, fs 120-9, fs 1209, fs 1209

Firestone

W01-M58-6165, W01 M58 6165, W01M586165

WO1-M58-6165, WO1 M58 6165, WO1M586165

W01-M58-6166, W01 M58 6166, W01M586166

WO1-M58-6166, WO1 M58 6166, WO1M586166

Dunlop

8''x1, 8'x1, 8x1, S08101, S 08101, S08100, S 08100

Bosch

822419003, 822419008

Festo

EB-215-80, EB 215 80, EB21580, EB215 80

Norgren

PM/31081, PM 31081, PM21081

Weforma

WBE 300-E1, WBE 300-E1, WBE300E1, WBE300-E1

WBE 300-E2, WBE 300-E2, WBE300E2, WBE300-E2

Airtech

140293, 111003, 1B-190FB, 1B 190FB, 1B190FB

Megatech

1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8


Storage Precautions
1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight
2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced
3. Air springs are best stored in a free state without any external force
4. Do not store in an environment with a temperature exceeding 50 degrees Celsius

Our Suspension Air Springs provide technical support and services forour customers. We have a team of experienced professionals to ensure that our products meet the highest standards of quality and performance. Our team is available to answer any questions or concerns you may have about our products. We also offer installation and repair services for our Suspension Air Springs. In addition, we provide a full range of spare parts and accessories to ensure that your product is always operating at its best.

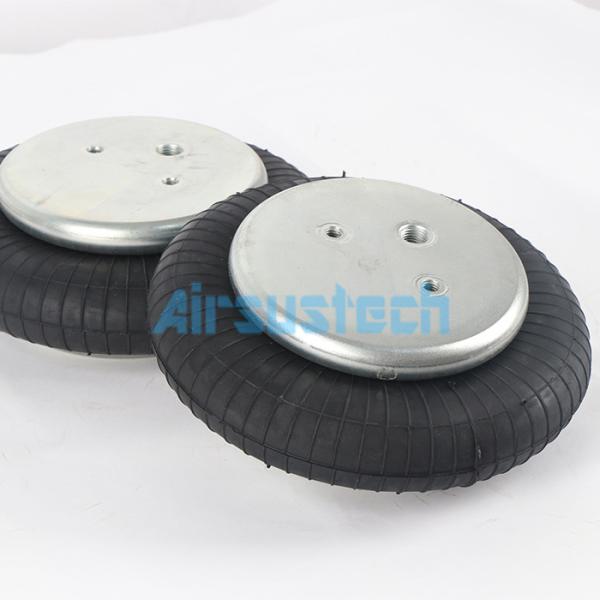

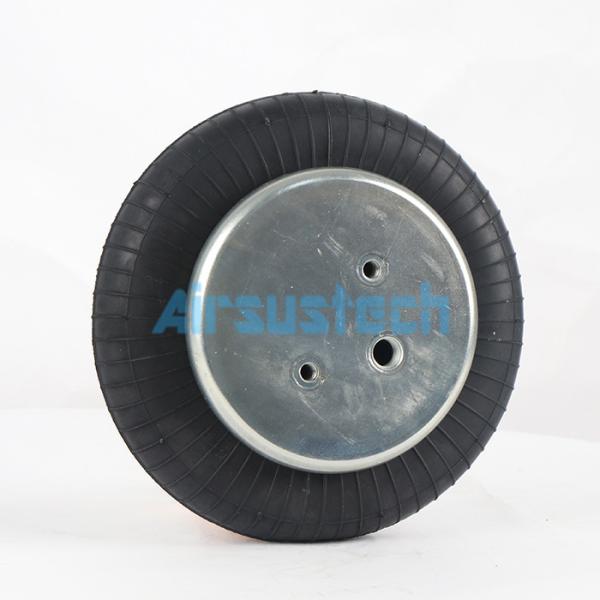

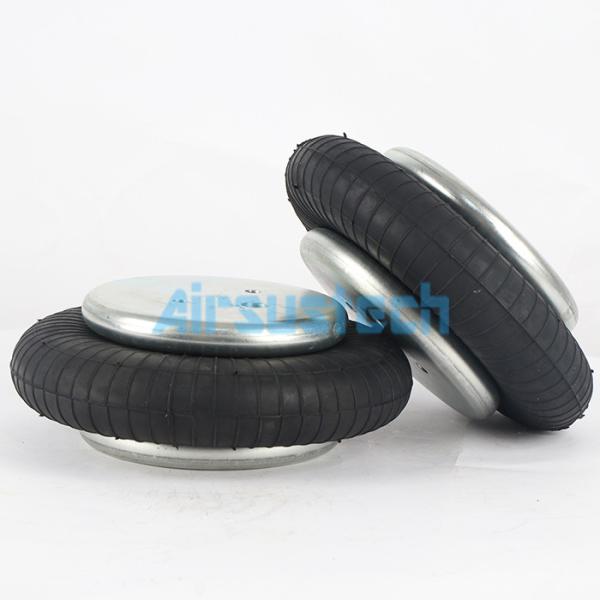

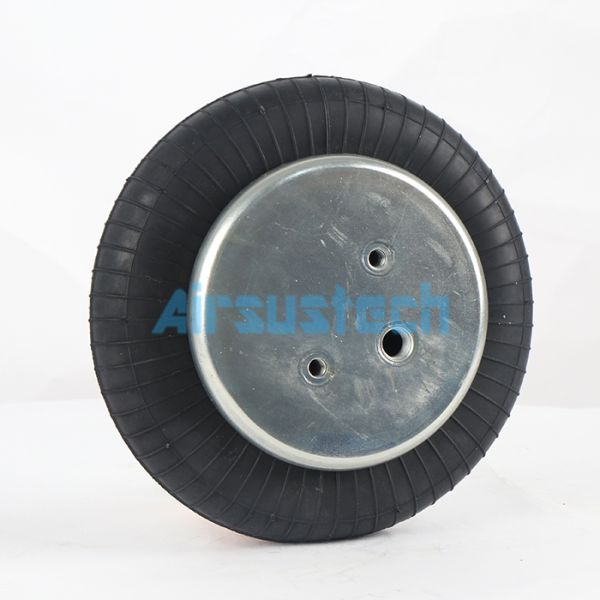

1B1209 Real Pictures
