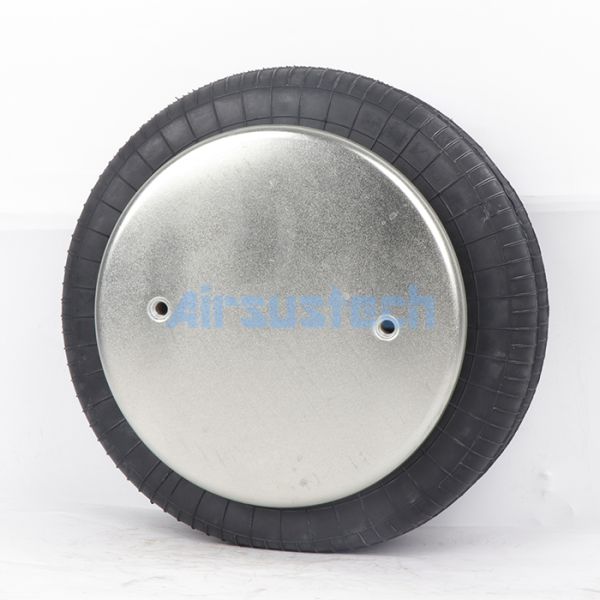

Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6330
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Advantage :
Simple to Install
Firestone :
W01-358-7180
Material :
Rubber+Steel
Purpose :
For Replace / Repair
Durability :
High
Bellows Type :
Double Convoluted
Operating Pressure :
0 Bar to 8 Bar
Condition :
Brand New
Description

Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows

Product Characteristics

① Gas Hole/Air Fitting/Port Size: 1NPTF

② Threaded Hole: 2X3/8-16UNC

③ Compressed Height: 81 mm

④ Max. Extended Height: 305 mm

⑤ Max. O.D.: 325 mm

⑥ Top and Bottom Cover Plate Diameter: 231 mm

⑦ C-to-C Distance Diameter: 157.5 mm

⑧ Distance Between Air Inlet and Hole: 73 mm

Alternative Items

Firestone W01-358-7180 / W01-358-7122
Contitech FD 330-22 363
Goodyear 2B12-425/311
Triangle 6316/4363
Airkraft 115061/3B-356
Vibracoustic VSP2B22R7180
EI Ride 8030190
Leland Sc2075
Navistar 1685179C1
Hendrickson 1VA1816
Ridewell 1003587180C
SAF Holland 57007180
Watson & Chalinl AS0154 1G/01881F
Peerless 0550 00001

The Advantages of AIRSUSTECH 2B6330 Pneumatic Air Spring

The AIRSUSTECH 2B6330 air bellows delivers key operational benefits that enhance system performance and reliability. Its seal-free design significantly reduces maintenance complexity and associated downtime. Furthermore, the AIRSUSTECH 2B6330 air spring maintains operational consistency across fluctuating pressure conditions, ensuring stable performance. Built with a robust construction, this model is engineered to withstand demanding industrial environments. Its design also offers flexible application potential across a diverse range of sectors.

These defining characteristics make the AIRSUSTECH 2B6330 rubber air suspension an ideal choice for automation equipment, material handling systems, and precision machinery, where dependable linear motion and effective vibration control are critical. The combination of versatile functionality and mechanical simplicity in the AIRSUSTECH 2B6330 suspension air spring provides engineers with a reliable and practical pneumatic solution for varied application demands.

Same Cover Plate Diameter 231 MM Other Air Spring OEM Numbers

AIRSUSTECH Number Cross References
2B7180 Firestone W01-358-7180/22
Contitech FD 330-22 363
Goodyear 2B12-425/311
Goodyear Bellows No. 578923309
Triangle 6316/4363
Airkraft 115061/3B-356
2B7181 Firestone W01-358-7181
Contitech FD 330-22 472
Goodyear 2B12-411
Goodyear Bellows No. 578923309
Triangle 6316/4472
2B7183 Firestone W01-358-7183
Contitech FD 330-22 471
Goodyear 2B12-412
Goodyear Bellows No. 578923309
Triangle 6316/4471
2B7344 Firestone W01-358-7344
Contitech FD 330-22 500
Goodyear 2B12-304
Triangle 6316/4500
2B7401 Firestone W01-358-7401
Contitech FD 330-22 337
Goodyear 2B12-320
Goodyear Bellows No. 578923309
Triangle 6316/4334
2B7403 Firestone W01-358-7403/22
Contitech FD 330-22 318
Goodyear 2B12-307/433/445
Goodyear Bellows No. 578923309


2B6330 AIRSUSTECH Industrial Air Spring Related Images

Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air BellowsAirkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows


Technicians Measure the Dimensions of AIRSUSTECH Air Springs
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows


Advanced Production Equipment
Airkraft 3B-356 115061 Pneumatic Air Spring FD 330-22 363 ContiTech Air Bellows
