Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B6910 M8-G1/4
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Color :
Black
Contitech :
FS 200-10
Compatibility :
Universal
Applications :
Industrial Machines or Others
Quality Assurance :
1 Year
Static Height :
110 MM
Operating Temperature :
-40℃+70℃
Air Spring :
Single Convoluted
Description
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Product Overview

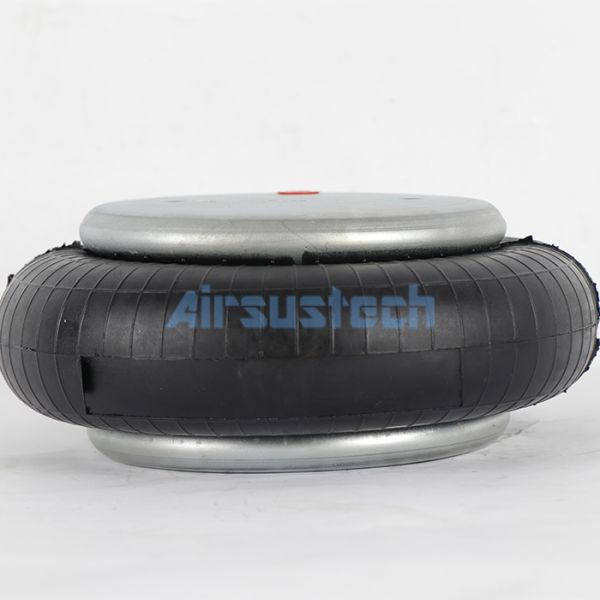

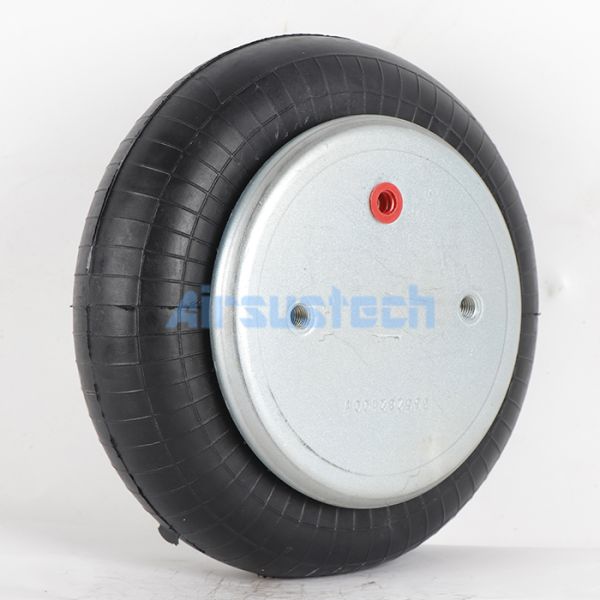

AIRSUSTECH 1B6910 Industrial Air Spring delivers reliable high-performance actuation with its robust crimped assembly for enhanced durability. Its core convoluted bellow, crafted from premium natural rubber, provides exceptional dynamic response and versatile operation across diverse conditions. Featuring zinc-plated steel end plates for superior corrosion resistance, the AIRSUSTECH 1B6910 maintains consistent quality in demanding environments. This compact, powerful pneumatic actuator combines strength, adaptability, and longevity, making it an ideal solution for industrial vibration isolation and precise motion control applications.

Product Specifications
  • Cover Plate
    Top Cover Plate O.D.: 160 mm
    Screw Center Distance of Top Cover Plate: 89 mm
    Bottom Cover Plate O.D.: 160 mm
    Screw Center Distance of Bottom Cover Plate: 89 mm
  • Nut/Blind Nuts
    Top Cover Plate Screw (Nut) Tooth: 2XM8X1.25
    Bottom Cover Plate Screw (Nut) Tooth: 2XM8X1.25
  • Gas Hole/Air Inlet/Air Fitting
    Air Hole: G3/4
  • Rubber Bellow
    Rubber Bellow Natural Diameter: 200 mm
    Natural Height: 110 mm
OEM Cross-Reference Numbers
1B6910 G3/4 with M8 Threaded Hole
Manufacturer Part Number Manufacturer Part Number
Contitech FS 200-10 Contitech FS 20010
Contitech FS 200 10 Firestone W01-M58-6374
Firestone W01M586374 Firestone W01 M58 6374
Firestone WO1-M58-6374 Firestone WO1M586374
Firestone WO1 M58 6374 Phoenix SP 1B 12
Phoenix SP 1B12 Phoenix SP1B12
Dunlop(FR) 9''1/4x1 S09101 Dunlop(FR) 9'1/4x1 S09101
Dunlop(FR) 9 1/4x1 S09101 Bos-ch 822419004
Festo EB-250-85 Festo EB25085
Festo EB 250 85 Norgren PM/31091(8 1/4X1)
Norgren PM31091(8 1/4X1) Norgren PM 31091(8 1/4X1)
1B6910 G1/4 with M10 Threaded Hole
Manufacturer Part Number Manufacturer Part Number
Contitech FS 200-10 Contitech FS 20010
Contitech FS 200 10 Contitech FS 200-10 G1/4
Contitech FS 200-10 M10 Contitech FS 200-10 G1/4 M10
AIRSUSTECH to Firestone Cross-Reference
AIRSUSTECH Number Firestone Number AIRSUSTECH Number Firestone Number
1B1209 M8-G3/4 W01-M58-6165 1B1209 M8-G1/4 W01-M58-6166
1B7731 W01-358-7731 1B6011 Bellow 131
1B6910 M8G-3/4 W01-M58-6374 1B5330 W01-358-7008
1B5330 with bump W01-358-7009 1B6994 W01-358-6994
1B6919 W01-358-6919 1B8X4 W01-358-7564
1B7725 W01-358-7725 1B7598 W01-358-7598
1B53014 3/4NPT W01-358-7094 1B53014 1/4NPT W01-358-7095
1B7551 W01-358-7551
Product Images
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
Single Rubber Air Spring W01-M58-6374 by Firestone Air Bellows Low Maintenance
