Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B8X2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
1 Year
Pressure Range :
0 Bar ... 8 Bar
Material :
Rubber+Steel
Cross :
Dunlop Pneuride 8''X2
Compatibility :
Universal
Number of Ply Bellows :
2 / Two
Color :
Black
Quality :
High Durability
Description
9109011 Parker Pneumatic Air Bellows Ø 200 FD 138-18 DS Contitech Double Air Spring
This double convoluted air spring is designed for reliable performance in industrial and vehicle suspension applications.
Product Specifications - 2B8X2T
General Specifications
Parameter Details
Spring Type Double Convoluted
Operation Gas-filled
Air Connection G1/2
Max Rubber Bellow Diameter 230 mm
Expanded Height 250 mm
Compressed Height 70 mm
Bottom Plate Specifications
Parameter Details
Type Steel
Alignment Parallel
Diameter 184 mm
Center to Center Diameter 155.5 mm
Hole Quantity 4 x M10
Top Plate Specifications
Parameter Details
Type Steel
Alignment Parallel
Diameter 3184 mm
Center to Center Diameter 155.5 mm
Hole Quantity 4 x M10
OEM Original Manufacturer
Parker Part Number: 9109011
Dunlop Part Number: 8''X2, 8'X2, 8X2, SP1490, SP 1490, PNP 305500112, PNP305500112
Firestone Part Number: W01-R58-4055, W01 R58 4055, W01R584055, WO1-R58-4055, WO1 R58 4055, WO1R584055
Contitech Part Number: FD 138-18 DS, FD 138-18 DS G1/2, FD 138-18 DS M10
Norgren Part Number: M/31082, M31082, M 31082
Oria Part Number: 8''X2, 8'X2, 8X2
Product Technical Parameters
Dynamic Characteristics Values
Pressure p [bar] 2 4 6
Force (load) [kN] 265 545 840
Stiffness [daN/cm] 48.8 88.2 128.1
Natural frequency [Hz] 2.2 2 2
Vol. V [cm3] 3420 3540 3660
Force F [daN]
Pressure p [bar] 3 4 5 6 7 8
Height H [mm] 70 943 1264 1586 1918 2229
100 836 1136 1425 1714 2014
150 664 889 1125 1318 1564
200 450 600 750 900 1061
250 236 300 386 450 536
AIRSUSTECH Can Replace These Parker Flange Air Bags
Ø (mm) (Inch Size) Parker No. Type Min. H. Max. H. Plate O.D. Max. O.D. Air Inlet
110 (4.1/2'') 9109400 4.1/2X1 45 90 110 125 G3/8
110 (4.1/2'') 9109401 4.1/2X2 65 145 110 125 G3/8
110 (4.1/2'') 9109402 4.1/2X3 100 200 110 125 G3/8
150 (6'') 9109004A 6X1 55 110 152.5 175 G1/2
150 (6'') 9109001A 6X2 75 195 152.5 175 G1/2
150 (6'') 9109007A 6X3 100 280 152.5 175 G1/2
150 (6'') 9109004 6X1 50 80 155 175 G1/2
150 (6'') 9109001 6X2 70 190 155 175 G1/2
150 (6'') 9109007 6X3 95 275 155 175 G1/2
200 (8'') 9109014 8X1 50 125 184 230 G1/2
200 (8'') 9109011 8X2 70 250 184 230 G1/2
200 (8'') 9109017 8X3 100 325 184 230 G1/2
250 (10'') 9109024 10X1 50 150 210 280 G1/2
250 (10'') 9109021 10X2 70 270 210 280 G1/2
250 (10'') 9109031 10X3 100 400 210 280 G1/2
300 (12'') 9109044 12X1 50 150 260 330 G1/2
300 (12'') 9109041 12X2 75 270 260 330 G1/2
300 (12'') 9109051 12X3 100 430 260 330 G1/2
370 (14.1/2'') 9109064 14.1/2X1 50 165 310 395 G1/2
370 (14.1/2'') 9109061 14.1/2X2 70 295 310 395 G1/2
370 (14.1/2'') 9109069 14.1/2X3 100 450 310 395 G1/2
410 (16'') 9109026 16X1 50 210 310 440 G1/2
410 (16'') 9109171 16X2 75 325 310 440 G1/2
410 (16'') 9109177 16X3 125 500 310 440 G1/2

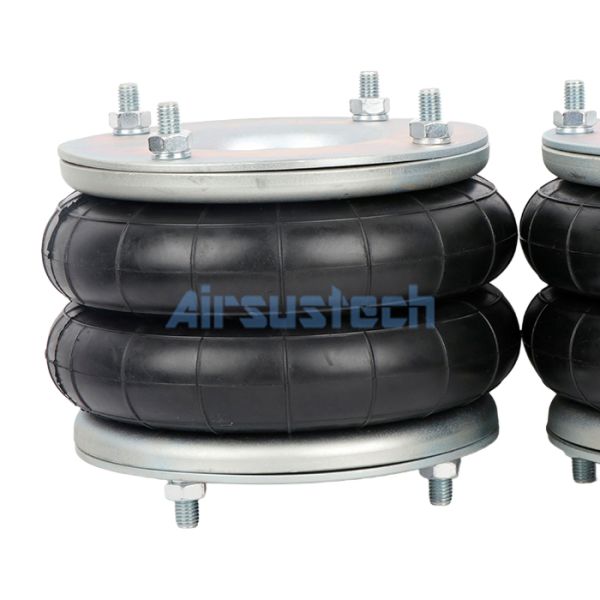

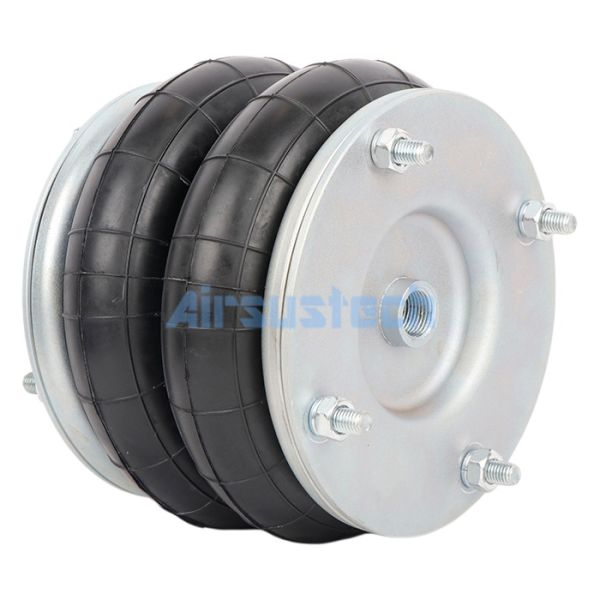

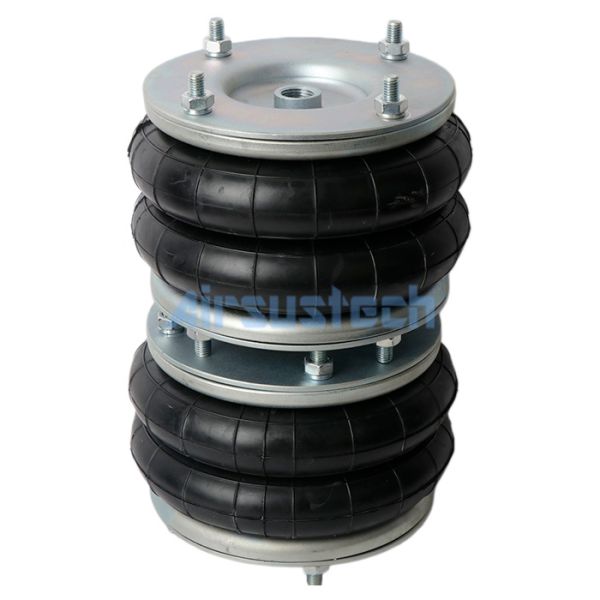

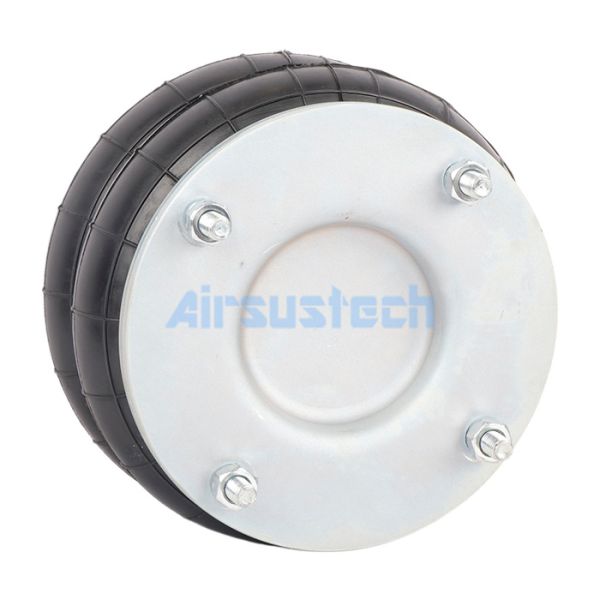

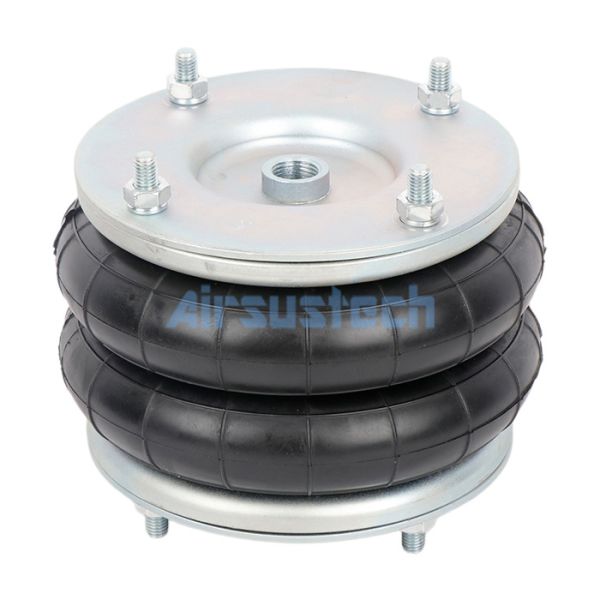

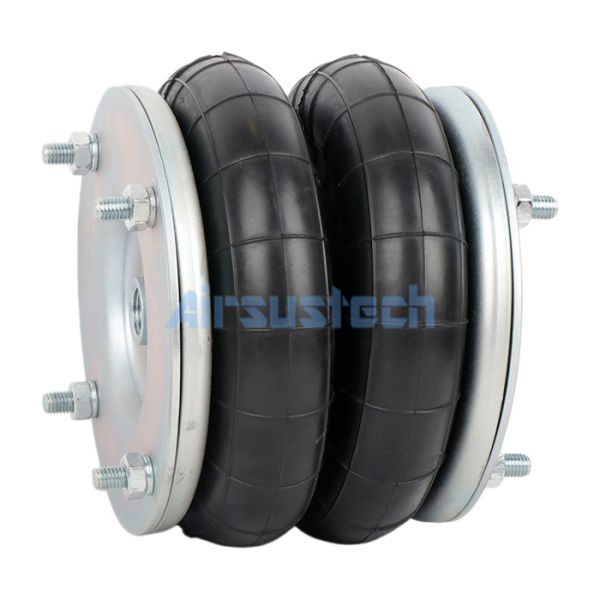

Product Images
