Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Durability :
High
Warranty :
1 Year
Ships From :
Any Port in China
Number of Ply Bellows :
2 / Two
Material :
Rubber and Steel
Condition :
New
Contitech :
FD 200-19
Stroke :
185 MM
Description
M-85-E Oria Double Type Air Spring Firestone W01-M58-6185 Air Bellow Suspension
M-85-E Oria Double Type Air Spring Firestone W01-M58-6185 Air Bellow Suspension
Cross References
Manufacturer Model Number
Oria M-85-E, M85E, M 85 E
Firestone W01-M58-6185, W01 M58 6185, W01M586185 WO1-M58-6185, WO1 M58 6185, WO1M586185
Contitech FD 200-19, FD 200-19 G3/4, FD 200-19 M8, 2682 045000, 2682045000
Festo EB-250-185, EB250185, EB 250 185
Norgren PM/31092, PM 31092, PM31092
Bos-ch 822419043
Weforma WBE 400-E1, WBE400-E1, WBE 400E1, WBE 400 E1, WBE400E1, WBE400 E
Technical Data
Cover Plate
  • Top Cover Plate Diameter: 160 mm
  • Screw Center Distance of Top Cover Plate: 89 mm
  • Bottom Cover Plate Diameter: 160 mm
  • Screw Center Distance of Bottom Cover Plate: 89 mm
Nuts/Blind Nuts
  • Top Cover Plate Screw (Nut) Tooth: 2XM8X1.25
  • Bottom Cover Plate Screw (Nut) Tooth: 2XM8X1.25
Gas Hole/Gas Fitting/Air Hole/Air Inlet
  • Air Fitting: G3/4
Rubber Bellow
  • Rubber Bellow Max. Dia: 251 mm
  • Rubber Bellow Natural Diameter: 224 mm
  • Minimum Height: 75 mm
  • Maximum Height: 260 mm
  • Bellows Structure: Double Convoluted
Technical Parameters
Vibration Isolation - Dynamic Characteristics Values
Pressure P [bar] 3 4 5 6 7 8
Force (Load) [kN] 6.1 8.2 10.3 12.5 14.5 16.5
Spring Rate [N/cm] 750 960 1110 1340 1510 1730
Natural Frequency [Hz] 1.8 1.7 1.7 1.6 1.6 1.6
Pneumatic Application - Static Characteristic Values
Pressure p [bar] 3 4 5 6 7 8
Height H [mm] 250 4.9 6.6 8.2 9.5 11.7 13.4
Height H [mm] 210 6.7 8.8 11.0 13.3 15.5 17.6
Height H [mm] 170 7.9 10.5 13.1 15.7 18.3 20.7
Height H [mm] 130 9.1 12.0 15.0 17.8 20.7 23.4
Height H [mm] 90 9.9 13.2 16.6 19.8 23.0 25.8
The Advantages of AIRSUSTECH Air Springs
As a professional air spring supplier, we provide a complete range of products to meet various application needs, including industrial air springs, truck air springs, bus air springs, car suspension air springs, and air suspension compressors. Our offerings cover multiple structural designs such as bellow type, rolling lobe type, sleeve type, and convoluted air springs. These industrial air bellows are constructed from durable, high-grade natural rubber to ensure long-lasting performance. We also offer full customization services—dimensions and specifications can be tailored according to your OEM part numbers or technical drawings. Committed to quality and value, we combine premium natural rubber materials with competitive pricing and reliable, fast delivery to support your business needs.
Oria Other Double Convoluted Air Bellows Technical Data
Model No. Ø Max. (mm) PCD (mm) Plate O.D. (mm) Bolts Min. Height (mm) Stroke (mm)
M-1214244.5114-7377
M-70-E16544.5114M874106
260019570135-78122
M-8021570135M875150
M-85-E24489160M875175
M-85-E26089160M875195
M-90310157.5230M881179
M-90-E338157.5230M882198
M-100380158.8287M878192
M-100-E410158.8287M879221
M-110430-384M1087163
M-110-E/4445-384M1087183
M-110-E/2460-384M1087213
M-60-2515-451M1080185
M-118-2575-517M1080200
M-130-2707-638M1080230
M-140-2950-890M10110225

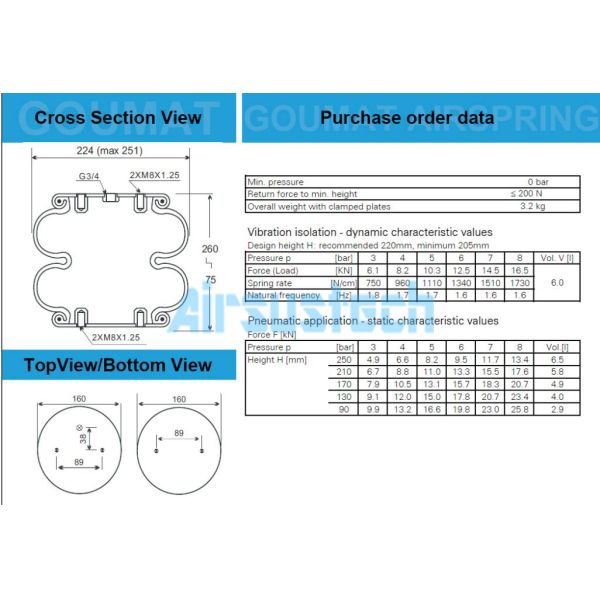

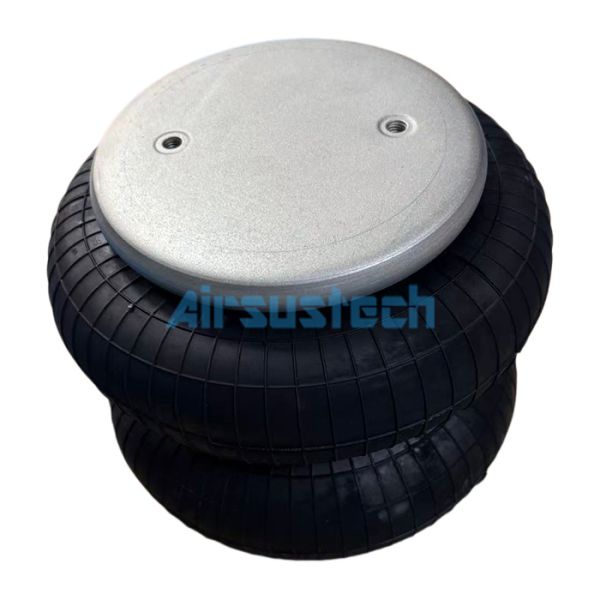

Product Drawings and Photos
M-85-E Oria Double Type Air Spring Firestone W01-M58-6185 Air Bellow Suspension
M-85-E Oria Double Type Air Spring Firestone W01-M58-6185 Air Bellow Suspension
