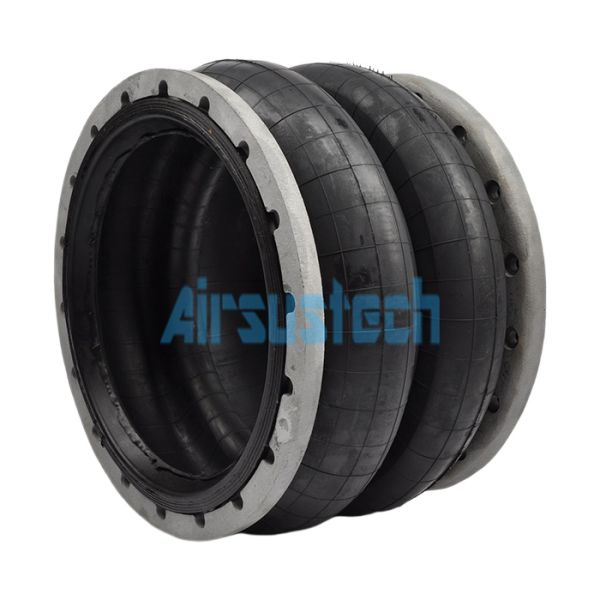

Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2H200142
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Max. Pressure :
7 Bar
Bellows Type :
Double Convoluted
Purpose :
For Replace / Repair
Material :
Rubber and Steel
Production Process :
Burst Resistance
Durability :
High
Working Temperature :
-40℃+70℃
Description
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
Product Specifications
Center Distance Between Two Farthest Screws: 152 mm
Flange Ring O.D.: 180 mm
Static Height: 142 mm
Minimum Height: 78 mm
Maximum Height: 183 mm
Full Stroke: 84 mm
Maximum Diameter of Rubber Bellows: 220 mm
Threaded Holes Type: 8-M10
Technical Data - Double Flange Air Springs
Product Number Nominal Diameter (mm) 0.7Mpa Max.Diameter Min. Height Max. Height Stroke Range Max. Outer O.D. (mm) Center Distance (mm) Bolts Quantity
2H1301428015072162901401126
2H15613011817070146761351156
2H160166100175821901081601356
2H16813212018572151791801528
2H20014215022078162841801528
2H220200148250902291392031758
2H230214150255882461582231858
2H23515218025080174942031758
2H235210180250802451652031758
2H250180185270842061221831458
2H252163192275822381562131758
2H260230170290902631732031758
2H2802142003058824615827523712
2H2902652053209030321325022012
2H3001702403208519511026022612
2H3102142303308824515730026312
2H3302142503558824615832228414
2H3302542303558829020230026312
2H3502552503809029520530927114
2H3602142803808824615824730916
2H3802213004059025516535832016
2H4002173204309024915939635818
2H4002553004309029520535832016
2H4302553304609029520539836018
2H4802174005108824916147643820
2H5202174405509024915950847024
2H5802145006008824615856853024
2H6302625306609030021061056030
2H6802625807109030221264260532
Technical Support and Services

Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.

We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.

Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

Flange Connection Air Bags OEM Numbers
1H086060
2H130142
3H200206
1H120060
2H156130
3H250260
1H150076
2H160166
3H255230
1H188102-A
2H168132
3H255322
1H215120
2H200142
3H310306
1H235118
2H220200
3H330306
1H235150
2H230214
3H360306
1H260135
2H235152
3H380316
1H260126
2H235210
3H400312
1H320124
2H252163
3H520312
2H260230
3H580306
2H280214
3H630376
2H290265
3H680376
2H300170
2H310214

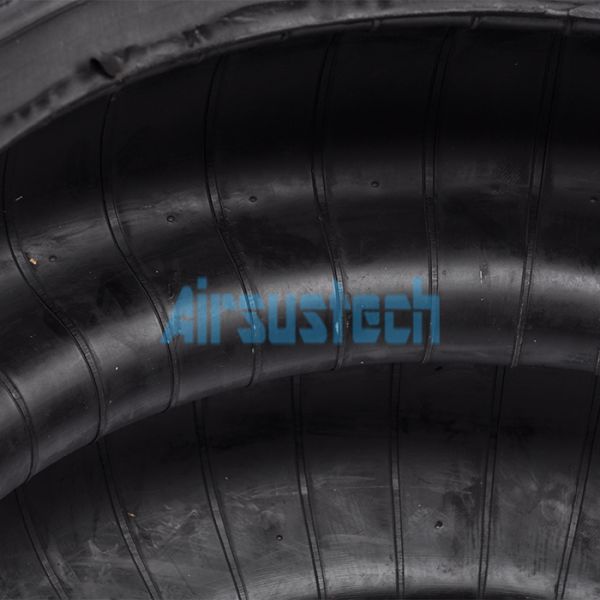

Product Images
Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws Stroke 84 MM Double Convoluted Industrial Air Spring 2H200142 with 8-M10 Screws
