Specifications
Brand Name :
AIRSUSTECH
Model Number :
2H200142
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Sample :
Availiable
Quality Assurance :
12 Months
Color :
Black
Advantages :
Serviceable
Max. Lifting Pressure :
7 Bar
Screws Type :
8-M10
Number of Ply Bellows :
Two / 2
Purpose :
For Replace / Repair
Description
Max. O.D. 220 MM Flange Connection Air Spring 2H200142 AIRSUSTECH Industrial Air Bag
Product Overview

Single Convoluted Pneumatic Air Actuator CF gomma 204626 GART 275.1.120 / T275

Flange air spring is an ideal choice for air suspension systems. This device provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, and motorcycles. Compared with traditional steel springs, flange air springs offer superior advantages and functionality.

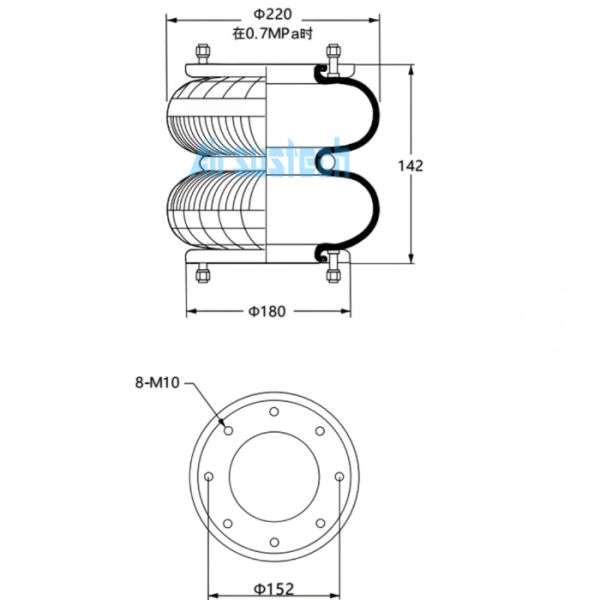

Product Dimensions
Specification Value
Natural Height 142 mm
Min. Compressed Height 78 mm
Max. Usable Height 183 mm
Screws Type 8-M10
PCD of Flange Rings 152 mm
Flange Ring Diameter 180 mm
Max. Outer Diameter 220 mm
Working Stroke 84 mm
2H200142 Technical Parameters
Load (kg) Installation Height (mm) Inflation Pressure
0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa
78 512 765 1025 1277 1537 1797 2057
93 448 667 901 1133 1360 1592 1826
108 392 593 801 1010 1216 1425 1633
123 360 552 745 934 1127 1316 1504
142 326 496 669 843 1019 1195 1371
162 270 415 564 710 860 1010 1162
183 213 323 449 568 686 812 938
Stiffness and Frequency at Design Height
Parameter 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa
Vertical Stiffness (Kg/cm) 72 96 121 146 168 194 218
Inherent Frequency (Hz) 2.35 2.20 2.13 2.08 2.03 2.02 1.99
Inherent Frequency (cpm) 141 132 128 125 122 121 119
Key Advantages of 2H200142 Rubber Air Bag
  • Efficient Vibration Absorption: Effectively absorbs vibration energy generated during equipment operation, reducing impact and wear between mechanical components to ensure stable performance.
  • Noise Reduction: The damping effect of the rubber shock absorber significantly lowers operational noise levels, contributing to a better working environment.
  • Equipment Protection: By minimizing vibration, it helps protect precision components inside vibration mills, extending the overall service life of the equipment.
AIRSUSTECH Double Flange Connection Air Springs
Product Number Nominal Diameter (mm) 0.7Mpa Max.Diameter Min. Height Max. Height Max. Outer O.D. (mm) Center Distance (mm)
2H130142 80 150 72 162 140 112
2H156130 118 170 70 146 135 115
2H160166 100 175 82 190 160 135
2H168132 120 185 72 151 180 152
2H200142 150 220 78 162 180 152
2H220200 148 250 90 229 203 175
2H230214 150 255 88 246 223 185
2H235152 180 250 80 174 203 175
2H235210 180 250 80 245 203 175
2H250180 185 270 84 206 183 145
2H252163 192 275 82 238 213 175
2H260230 170 290 90 263 203 175
2H280214 200 305 88 246 275 237
2H290265 205 320 90 303 250 220
2H300170 240 320 85 195 260 226
2H310214 230 330 88 245 300 263
2H330214 250 355 88 246 322 284
2H330254 230 355 88 290 300 263
2H350255 250 380 90 295 309 271
2H360214 280 380 88 246 247 309
2H380221 300 405 90 255 358 320
2H400217 320 430 90 249 396 358
2H400255 300 430 90 295 358 320
2H430255 330 460 90 295 398 360
2H480217 400 510 88 249 476 438
2H520217 440 550 90 249 508 470
2H580214 500 600 88 246 568 530
2H630262 530 660 90 300 610 560
2H680262 580 710 90 302 642 605
