Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Specifications
Material :
Rubber+Steel
Brand Name :
AIRSUSTECH
Phoenix :
SP 1 B 22
Durability :
Long Lasting
Packaging Details :
Strong Carton Box or as Customers Requirement
MOQ :
1 Piece
Flexibility :
Good
Model Number :
1B5330 M8-G3/4
Supply Ability :
1000 PCS/Week
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Certification :
ISO/TS16949:2009
Convolution Number :
One / 1
Max. Lifting Pressure :
0.7 MPa
Working Temperature :
-40℃+70℃
Place of Origin :
Guangzhou, China
Usage :
Industrial
Delivery Time :
3-8 Working Days
Description

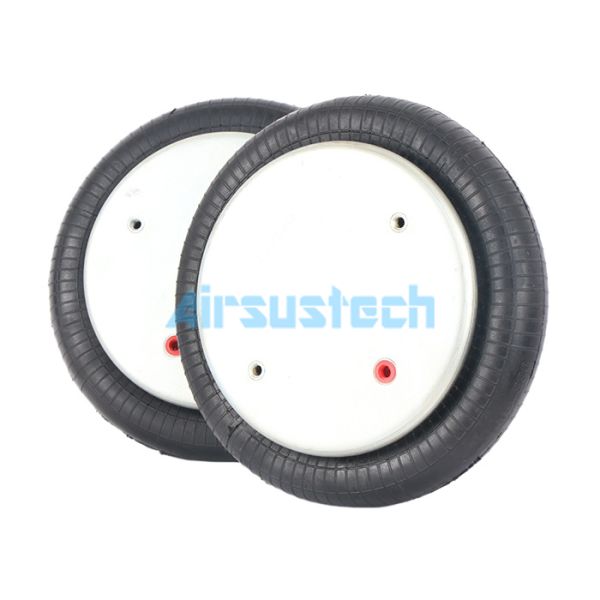

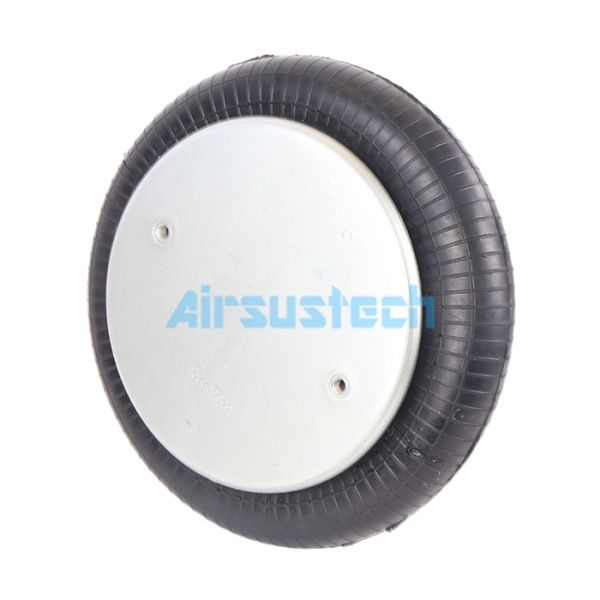

Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Technical Parameters
Air Fitting G3/4
Operation Gas-filled
Bottom Plate Center to Center Diameter 157.5 mm
Bottom Plate O.D. 231 mm
Bottom Plate Hole Quantity 2XM8
Bottom Plate Type Steel
Top Plate Center to Center Diameter 157.5 mm
Top Plate O.D. 231 mm
Top Plate Hole Quantity 2XM8
Top Plate Type Steel
Max. Expanded Height 160 mm
Min. Compressed Height 55 mm
Spring Type Single Convoluted
Max Rubber Bellow Diameter 325 mm
Cross Reference Codes
Phoenix SP 1 B 22
Phoenix SP1B22
Parker KY 9590
Parker KY9590
KY 9590 / SP 1 B 22
KY 9590/SP 1 B 22
KY 9590 / SP1B22
AIRSUSTECH Equivalent Models
Item Code Max. Diameter (mm) Max. Stroke (mm) Max. Load (kN) Standard Air Inlet
SP 1 B 04 142 60 6.0 G 1/4
SP 1 B 07 215 71 13.88 G 1/4
SP 1 B 12-1 248 100 17.3 G 3/4
SP 1 B 12-3 248 100 17.3 G 3/4
SP 1 B 22 340 120 31.22 G 3/4
SP 1 B 34 400 125 54.14 G 3/4
Design Features & Applications
  • Removable convoluted air bellows provide optimal short-stroke, high-thrust single-acting actuation solutions. Constructed from fabric-reinforced synthetic rubber, available in one, two, or three convolution configurations to meet specific stroke and model requirements.
  • Frictionless operation with no reciprocating metal parts ensures smoother performance and reduced wear compared to conventional pneumatic cylinders.
  • Single-acting units with return stroke partially assisted by natural spring action of bellows material, typically completed by external load. Robust construction delivers long, maintenance-free service life in demanding conditions.
  • Ideal for high-frequency vibration applications including precision device feeders, providing reliable damping and consistent actuation for optimal equipment performance.
Product Images
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
Quality Control & Manufacturing
Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate Adjustable Convoluted Air Spring SP 1 B 22 by Phoenix Air Bag Steel Metal Plate
