Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Specifications
Place of Origin :
Guangzhou, China
Supply Ability :
1000 PCS/Week
Packaging Details :
Strong Carton Box or as Customers Requirement
Certification :
ISO/TS16949:2009
Gas Hole :
G3/4
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Max. O.D. :
325 MM
Cross References :
KY 9590 / SP 1 B 22
Advantages :
Serviceable
Delivery Time :
3-8 Working Days
Operating Temperature :
-40℃+70℃
Durability :
Long Lasting
Price :
Negotiable
Flexibility :
Good
Pressure Ability :
0 Bar to 8 Bar
Model Number :
1B5330 M8-G3/4
Brand Name :
AIRSUSTECH
MOQ :
1 Piece
Description
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows

Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows

Other OEM Number
  • Parker KY 9590
  • Parker KY9590
  • Phoenix SP 1 B 22
  • Phoenix SP1B22
  • KY 9590 / SP 1 B 22
  • KY 9590/SP 1 B 22
  • KY 9590/SP1B22
1B5330 M8-G3/4 Technical Parameters
Minimum Installation H. 55 MM
Maximum Installation H. 160 MM
Gas Hole/Air Fitting G3/4
Mounting Hole 2XM8X1.25
C-to-C Distance Diameter 157.5 MM
Distance Between Air Hole and Screws 69.5 MM
Max. Outside O.D. 325 MM
Working Stroke 105 MM
Top and Bottom Plate Diameter 231 MM
AIRSUSTECH Air Spring Applications
Air Springs Used As an Actuator:
  • Scissor lift
  • Direct force
  • Hot foil stamping press
  • Quick lock device
  • Short stroke mechanical linkage
  • Roller tensioning
  • Reel tensioning
  • Platform lift
  • Web tensioning device
Air Springs Used As an Isolator:
  • Hopper vibration and damping
  • Commercial laundry machine
  • Wheel suspension
  • Mechanical handling stop
  • Impact absorption
  • Machine isolation
FAQ
Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
Q: How do you correctly identify the products you need?
A: Supply part number, we can check directly. Engine and gearbox parts; if you don't know part code, try to found engine or gear model and number.
Q: Is it possible to receive a proforma invoice?
A: Yes, we will send you a proforma invoice if you choose for the payment method: 'Bank Transfer Payment' at the check out. You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the payment.
Q: Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

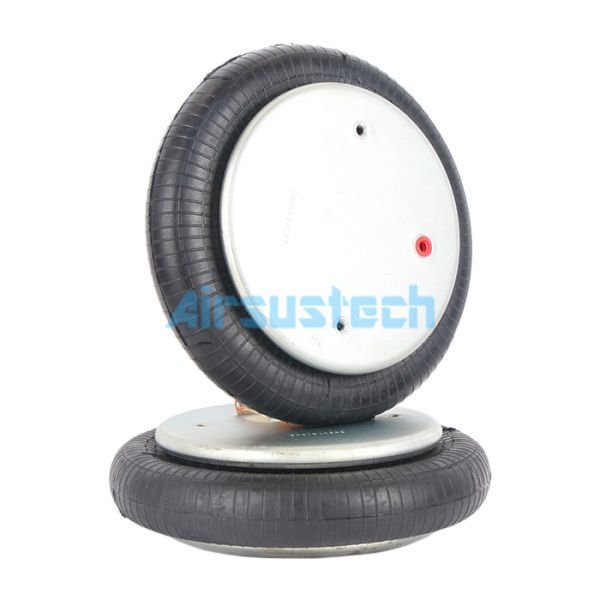

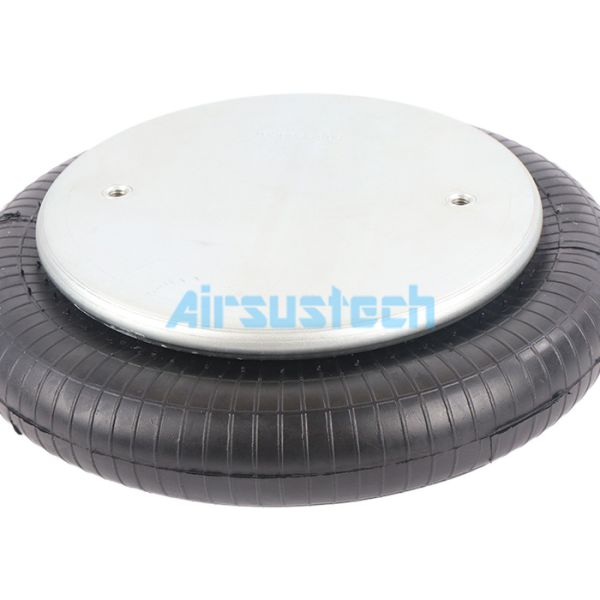

1B5330 M8-G3/4 Suspension Air Spring Actual Pictures
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Technicians Measure the Dimensions of AIRSUSTECH Air Springs
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
Advanced Production Equipment
Suspension Air Bag Parker KY 9590 Air Spring Assembly SP1B22 Phoenix Air Bellows
