Goodyear Flex No. 579913501 Max. Stroke 70MM Rubber Air Spring Low Maintenance


OEM Part Numbers

Goodyear Flex No.: 579-91-3-501
Goodyear Flex No.: 579913501
Goodyear Flex No.: 579 91 3 501
Goodyear: 1B5-510
Goodyear: 1B5510
Goodyear: 1B5 510
Enidine Imperial: YI-1B5-510
Enidine Imperial: YI1B5510
Enidine Imperial: YI 1B5 510


The Characteristics of AIRSUSTECH 1K130090

• This single convolution pneumatic air spring is constructed from premium natural rubber and reinforced steel mounting plates. It provides a minimum compressed height of 50 mm, a maximum extended height of 120 mm, delivering a working stroke of 70 mm.
• For model 1k130090, the mounting plate features a diameter of 150 mm with a center-to-center distance of 44.5 mm. When operating at 0.7 MPa, the rubber bellows attains a maximum outer diameter of 85 mm.
• This industrial pneumatic bellows functions by gas pressurization. It is equipped with a 1/4''BSP air port and utilizes fasteners sized 2X3/8''UNC.

Key Benefits of AIRSUSTECH Convoluted Air Springs

1. Simplified Design and Broad Compatibility
Featuring a straightforward construction, a single size of AIRSUSTECH air spring can accommodate varying load requirements. This eliminates the need for system re-design when load conditions change.

2. Optimized Displacement and Mounting Flexibility
With a maximum displacement of 0.39 in. permissible between its end plates, this industrial air bag allows for installation flexibility without the need for costly machining of mounting holes.

3. Angular Misalignment Accommodation
The design of convoluted air spring permits a maximum tilt angle of 25°, reducing the necessity for expensive alignment correction devices. For specific technical assistance, please contact AIRSUSTECH.

4. Compact and Sealing-Free Design
Requiring minimal space and no external sealing, the AIRSUSTECH pneumatic air actuator offers a significantly lower minimum installed height compared to conventional pneumatic cylinders of equivalent stroke, providing a compact and efficient solution.


Other Goodyear Bellows OEM Number Quick Chart

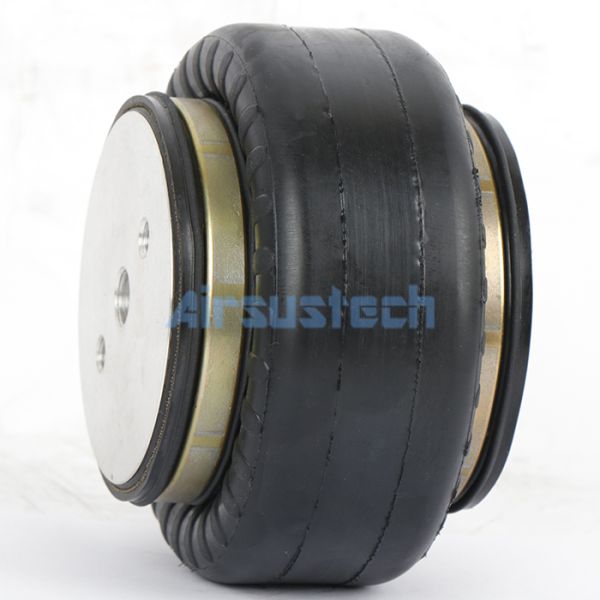

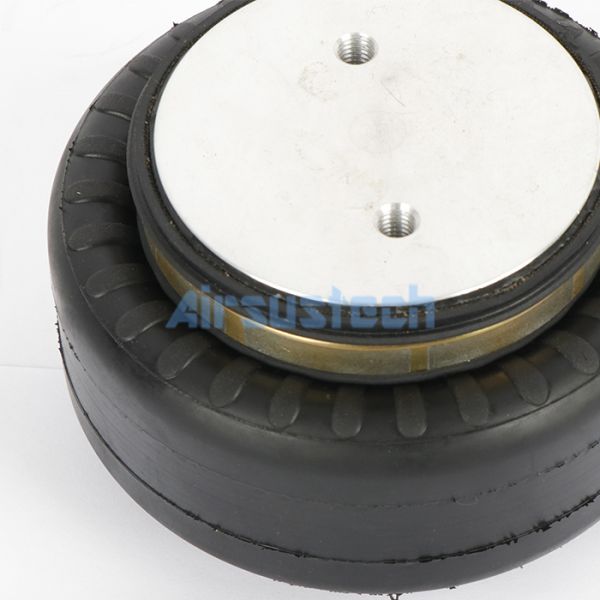

AIRSUSTECH 1K130090 Single Convolution Air Spring Photos
