Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B9X5
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Factory Warranty :
One Year
Pressure :
0-8 Bar
Gas Hole :
1/4NPTF
Specification :
Imperial Inch Size
PCD :
89 MM
Sample :
Availiable
Travel :
100 MM
Compatibility :
Universal
Description
Goodyear 1B9-202 578913201 Rubber Air Spring
Product Overview

Goodyear 1B9-202 578913201 Rubber Air Spring with minimum height of 60 mm and interchangeable part number Goodyear 1B9-204.

Performance Characteristics
Operating Temperature: -40℃ to +70℃
Working Pressure: 0 to 8 bar
Air Hole: 1/4NPTF
Maximum Diameter: 240 mm
Number of Convolutions: 1
Working Stroke: 100 mm
Operation: Gas filled
Materials - Body: Natural rubber and steel
Min. Height: 60 mm
Max. Height: 160 mm
Country of Origin: China
Part Interchanges
Goodyear 1B9-202 Goodyear 1B9202 Goodyear 1B9 202
Goodyear 1B9-204 Goodyear 1B9204 Goodyear 1B9 204
Goodyear 578-91-3-201 Goodyear 578913201 Goodyear 578 91 3 201
Firestone W01-358-7460 Firestone W013587460 Firestone W01 358 7460
AIRSUSTECH Air Spring Features
  • Nonlinear characteristics with stiffness that changes with load, maintaining nearly constant natural frequency under any load condition
  • Excellent high-frequency vibration absorption and sound insulation performance
  • Capable of simultaneously withstanding axial and radial loads
  • Adjustable bearing capacity through internal pressure regulation
  • Versatile design that meets the needs of various load requirements
Other Goodyear Single Convolution Air Bellows
Goodyear Bellows No. Goodyear Goodyear Bellows No. Goodyear
578-91-3-301 1B12-301 579-91-3-501 1B5-510
578-91-3-301 1B12-305 579-91-3-532 1B8-564
578-91-3-301 1B12-306 578-91-3-351 1B14-350
578-91-3-301 1B12-313 578-91-3-351 1B14-351
578-91-3-301 1B12-322 578-91-3-351 1B14-373
578-91-3-352 1B14-358

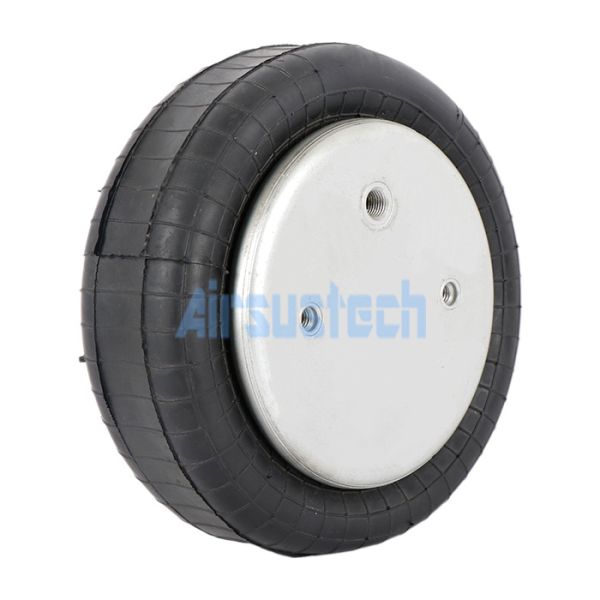

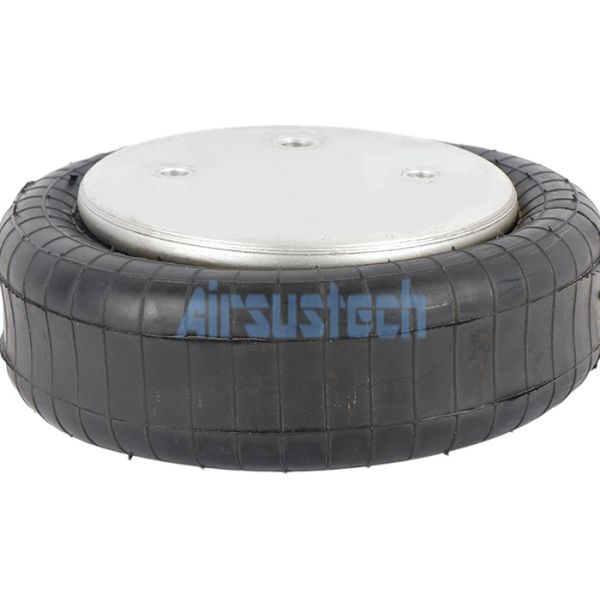

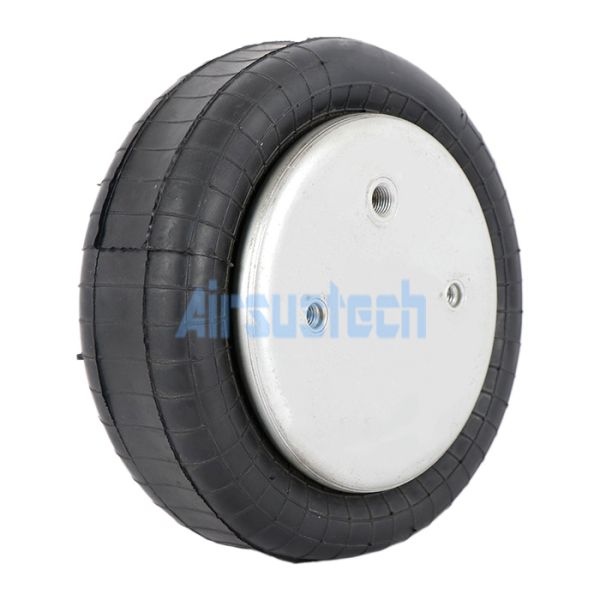

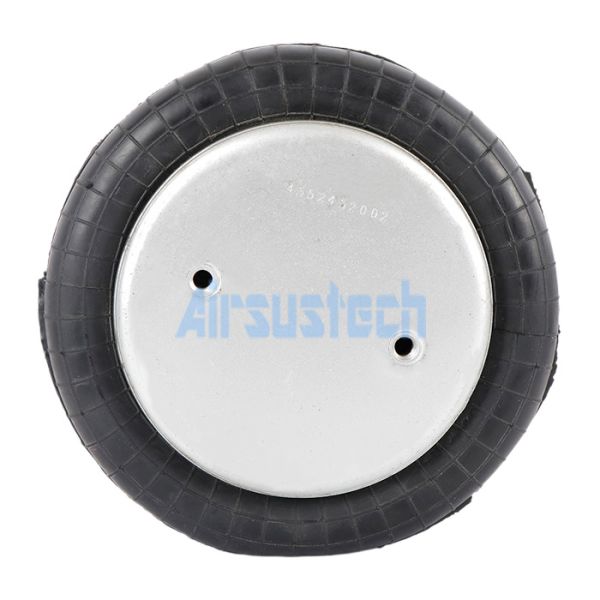

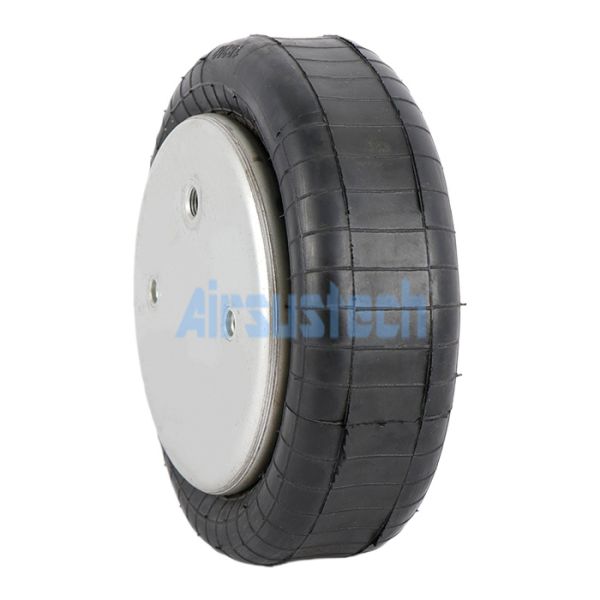

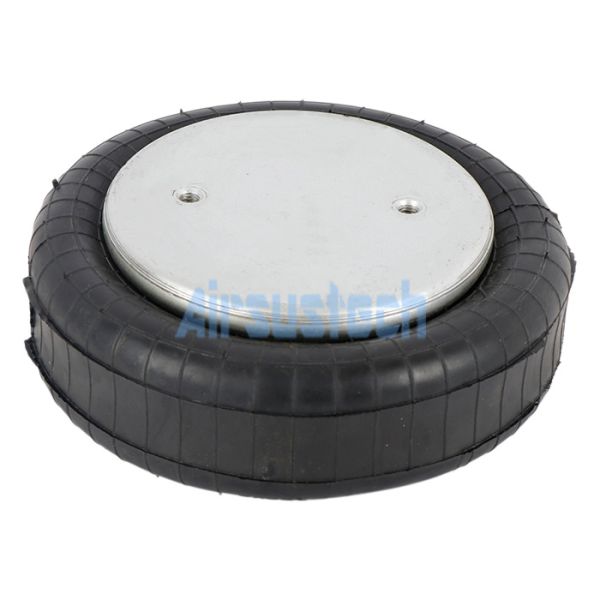

Product Images
Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204 Goodyear 1B9-202 578913201 Rubber Air Spring Min. H. 60 MM Goodyear 1B9-204
