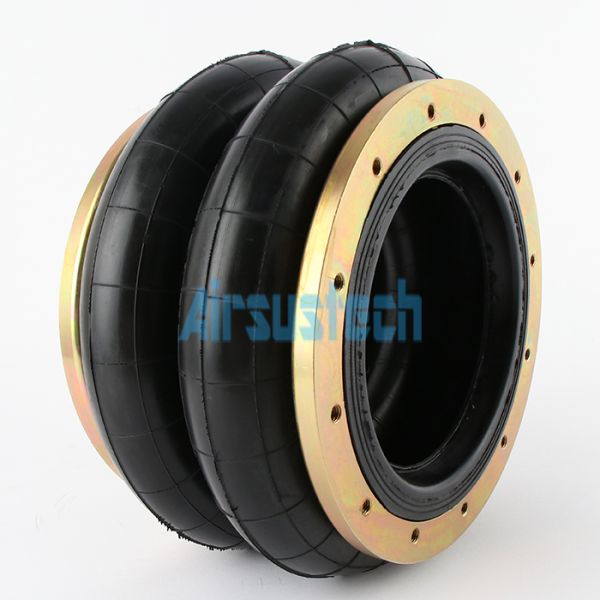

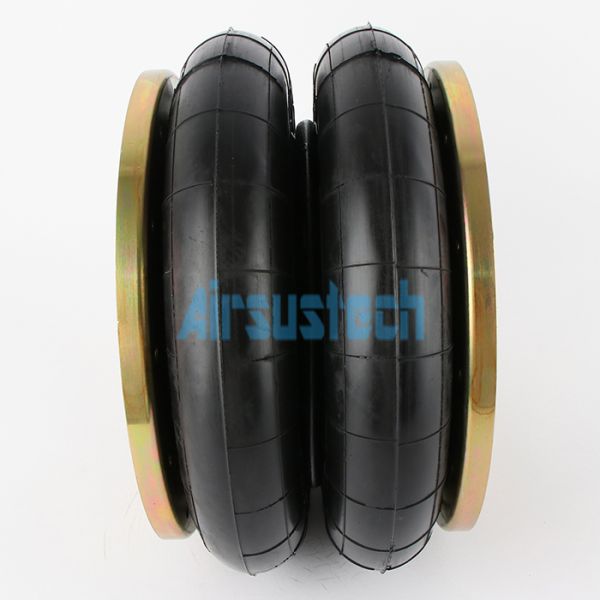

Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Specifications
Brand Name :
AIRSUSTECH
Model Number :
12X2P05
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Warranty :
One Year
Compatibility :
100% Accuracy of Fit
Temperature Rating :
-40°F...158°F
Quality :
High
Number of Ply Bellows :
2
Production Process :
Vulcanization
Maintenance :
Low / Minimal
Description
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Product Overview
Model No.: 12X2P05
Brand: AIRSUSTECH
Sample: Available
Origin: China
Packaging: Strong Brown Carton
Shipment: By FedEx/UPS/DHL/Air/Sea/Railway
Delivery Time: 6-8 Working Days
Technical Specifications
Parameter Value
PCD 245 MM
Flange O.D. 230 MM
Mounting Holes 12-M8
Design Height 164 MM
Inner Opening Diameter 176 MM
Outer Opening Diameter 210 MM
Type Double Convoluted
Natural Diameter 301 MM
Key Benefits
1. Adjustable Performance
Flange air springs are adjustable. By controlling the compressed air pressure, both the ride height and suspension stiffness can be modified. This allows drivers to adjust the suspension system based on road conditions and personal preferences, resulting in a more comfortable and stable driving experience.
2. Excellent Shock Absorption
Thanks to the compressibility of air, flange air springs effectively absorb and dissipate road vibrations, reducing the impact transmitted to the vehicle and its passengers. This leads to fewer bumps and less vibration during driving, improving overall comfort and stability.
3. High Reliability & Durability
Flange air springs are manufactured using high-strength rubber and metal materials, offering good wear resistance and corrosion resistance. This enables them to withstand significant pressure and loads while providing a long service life.
Compatible Air Spring Models
Model 1 Model 2 Model 3
4 1/2 X1 W01-R58-4050 DUNLOP SP 2334
4 1/2 X2 W01-R58-4076 DUNLOP SP 2895
6X1 W01-R58-4052 DUNLOP SP 1368
6X1 W01-R58-4078 DUNLOP SP 2913
6X2 W01-R58-4036 DUNLOP SP543
6X2 W01-R58-4053 DUNLOP SP 1482
6X3 W01-R58-4095 DUNLOP SP 2861
8X1 W01-R58-4054 DUNLOP SP 1637
8X2 W01-R58-4045 DUNLOP SP 253
8X3 W01-R58-4056 DUNLOP SP 2863
10X1 W01-R58-4057 DUNLOP SP 2623
10X2 W01-R58-4048 DUNLOP SP 1538
10X3 W01-R58-4059 DUNLOP SP 1539
12X1 W01-R58-4038 DUNLOP SP 1640
12X2 W01-R58-4044 DUNLOP SP 256NB
12X3 W01-R58-4046 DUNLOP 12X3
Product Images
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Quality Assurance
Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes Flange Connection Pneumatic Air Spring 12X2P05 with 12PCS M8 Threaded Holes
Our technicians perform precise dimensional measurements and utilize advanced production equipment to ensure the highest quality standards for all AIRSUSTECH air springs.
