Specifications
Brand Name :
AIRSUSTECH
MOQ :
1 Piece
Price :
Negotiable
Cross :
Goodyear 1S3-013
Quality Assurance :
One Year
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Purpose :
For Material Transfer
Stroke :
2 Inches
Model Number :
G3014
Shape :
Sleeve Air Spring
Working Temperature :
-40℃+70℃
Compatibility :
Easy to Replace
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Flexibility :
Good
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
Supply Ability :
1000 PCS/Week
Description
Firestone W02-358-3000 1/8NPT Sleeve Air Spring G3014 Industrial Bellows Actuator
G3014 Air Spring Dimensions
SpecificationValue
Air Inlet1/8NPT
Mounting Bolts5/8-11
Minimum Height1.5 inches
Maximum Height3.5 inches
Bottom Plate2.88 inches
Maximum Outer Diameter3.4 inches
Top Plate2.4 inches
Bolt Height1 inch
Dynamic Characteristics at 2.5 Inch Design Height
Gage Pressure (PSIG)Load (lbs.)Spring Rate (lbs./in.)CPMHZ
402103362353.92
603304672243.73
804506192203.67
1005707402143.57
Force Table
Assembly Height (in.)Volume @ 100 PSIG (in³)20 PSIG40 PSIG60 PSIG80 PSIG100 PSIG
2.06110230340460580
Part Interchanges
  • Firestone W02-358-3000, W02 358 3000, W023583000, WO2-358-3000, WO2 358 3000, WO23583000
  • Firestone W02-358-3001, W02 358 3001, W023583001, WO2-358-3001, WO2 358 3001, WO23583001
  • Goodyear 1S3-013, 1S3 013, 1S3013
  • ContiTech SK37-6P02, SK37 6P02, SK376P02
  • Prevost 950208
  • Endyne Bellow TI-1S3-013, TI1 S3 013, TI1S3013
Functions and Working Principles
  • Air Spring Support: Generates support force through air pressure, replacing traditional mechanical springs. Can withstand high loads while mitigating impact.
  • Vibration Absorption: Absorbs mechanical vibration during compression and rebound, protecting equipment lifespan.
  • Adjustable Height/Load Capacity: Changes support rigidity or vehicle height by adjusting air pressure.
  • Noise and Impact Reduction: Rubber air springs provide effective vibration isolation and cushioning.
Frequently Asked Questions
How is your delivery time?
Generally, it takes 5-8 working days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.
Do you offer any warranty?
Yes, we offer ONE YEAR warranty on all of our products (new and used).
What is the model number of the Sleeve Air Springs?
The model number of the Sleeve Air Springs is G3014.
Can you produce the product according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

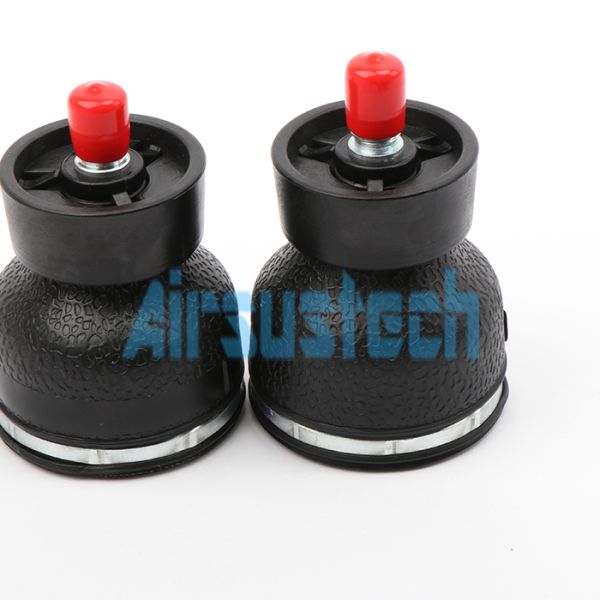

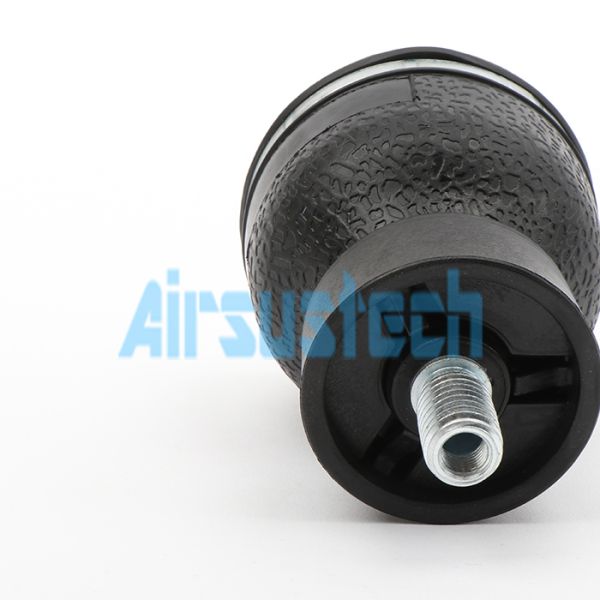

Product Images
Firestone W02-358-3000 1/8NPT Sleeve Air Spring G3014 Industrial Bellows Actuator Firestone W02-358-3000 1/8NPT Sleeve Air Spring G3014 Industrial Bellows Actuator
