Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B10X2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Purpose :
For Replace / Repair
Sample :
Available
Color :
Black
Structure :
Double Convolutions
Quality :
High
Origin :
Guangzhou, China
Cross :
Contitech FD 210-22 DS
Material :
Rubber and Steel
Description

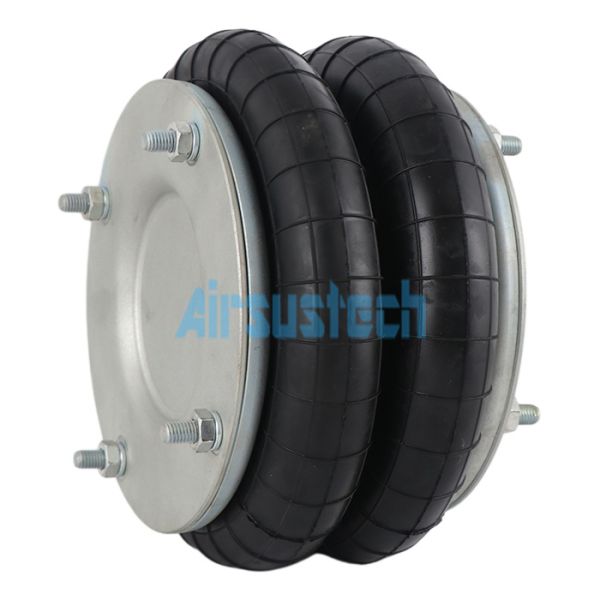

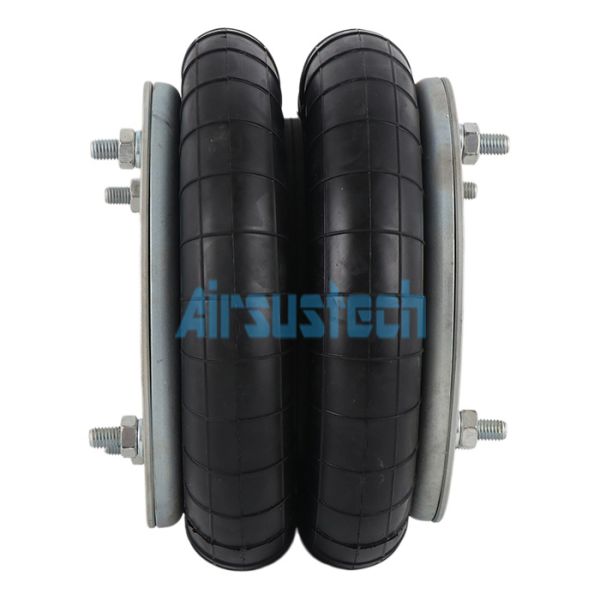

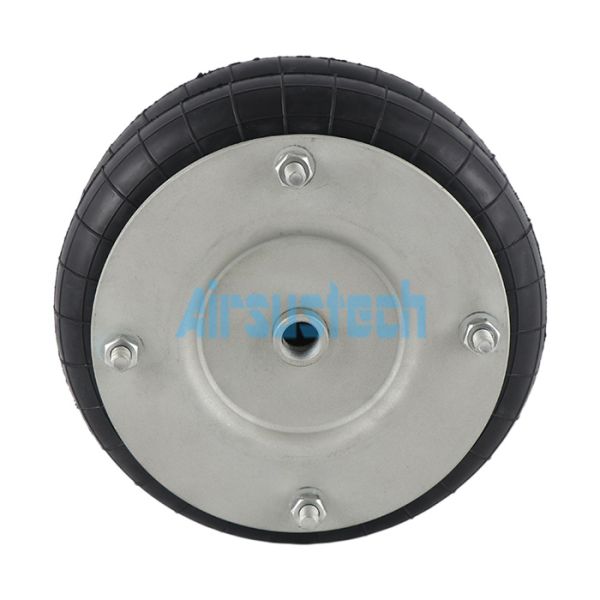

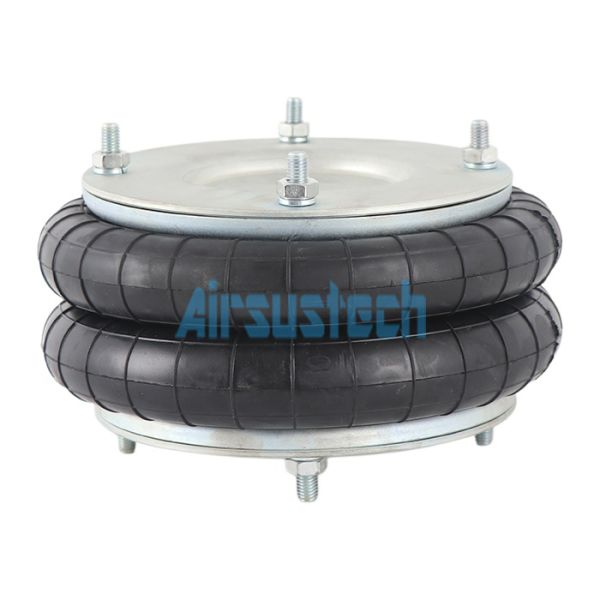

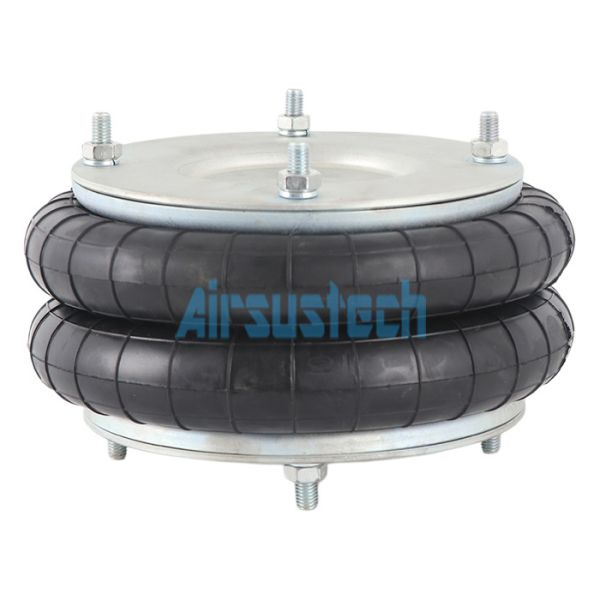

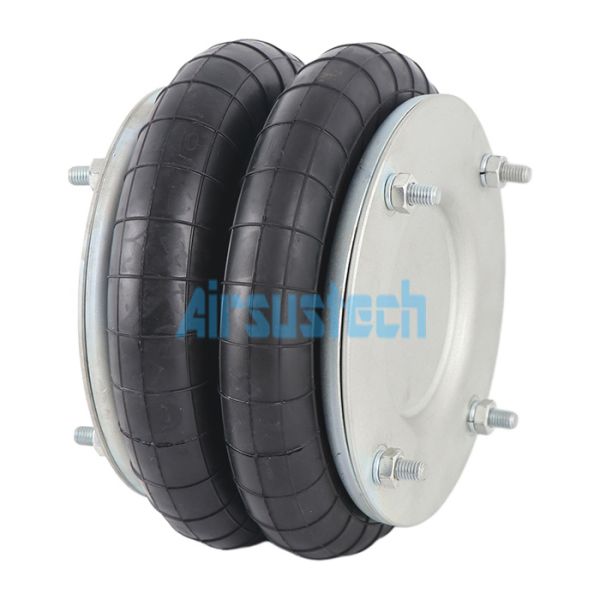

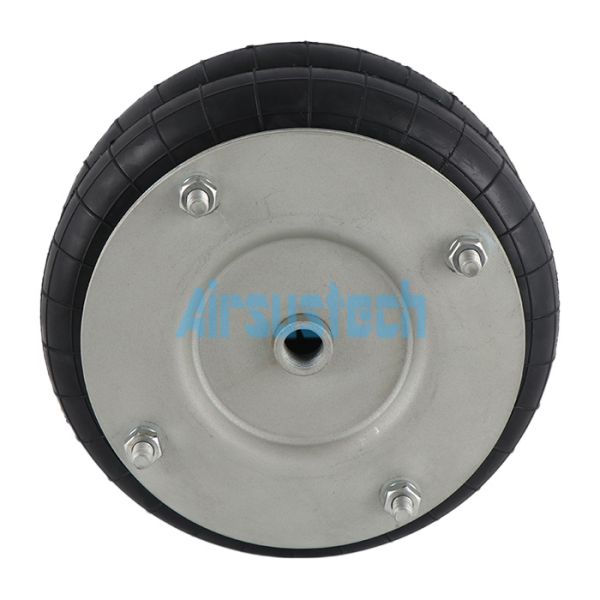

AIRSUSTECH 2B10X2T Air Spring with 4-M10 Studs
Replace Firestone W01-R58-4058 with compatible AIRSUSTECH 2B10X2T air spring featuring 4-M10 studs for industrial vibration reduction applications.
Product Specifications
PCD 181 MM
Flange Plate Diameter 210 MM
Design Height 190 MM
Air Port Size G1/2
Studs Type 4-M10
Rubber Material Natural Rubber
Number of Ply Bellows 2
HS Code 8708809000
Function Reduce Vibration
OEM Compatibility
Equivalent to Firestone W01-R58-4058
  • Firestone W01 R58 4058 / W01R584058
  • Dunlop Pneuride 10''X2 / 10'X2 / 10X2
  • Dunlop Springride SP1538
  • Dunlop PNP 305450112
  • Contitech FD 210-22 DS / FD 210-22 DS G1/2 / FD 210-22 DS M10
  • Norgren M/31102 / M 31102
  • Parker 9109021
  • Oria 10''X2 / 10'X2 / 10X2
  • Airbag Man DB1028
Safety and Operating Instructions
  1. Respect Stroke Limits: Do not exceed the specified stroke
  2. Inflation Restrictions: Do not inflate the assembly when unrestricted
  3. Pressure Limits: Do not exceed recommended pressures without consultation
  4. Height Requirements: Always respect maximum and minimum bellows heights
  5. Secure Mounting: Ensure bellows are properly fixed before use
  6. Air Pressure Requirement: Never operate without sufficient air pressure
AIRSUSTECH Cross-Reference Compatibility
AIRSUSTECH NO. Firestone Dunlop Pneuride Dunlop Springride Contitech Norgren Parker
2 3/4''X2P 2 3/4''X2 SP2904 FD 22-4 DI 9109009
2B4.5X2P W01-R58-4051 4 1/2''X2 SP2441 FD 44-10 DI PM/31042 9109401
2B6X2T(AI) W01-R58-4070 6''X2(AI) SP2917 FD 76-14 DI PM/31062 9109001A
2B6X2T(Steel) W01-R58-4053 6''X2(Steel) SP1482 FD 76-14 DS M/31062 9109001
2B8X2T W01-R58-4055 8''X2 SP1490 FD 138-18 DS M/31082 9109011
2B10X2T W01-R58-4058 10''X2 SP1538 FD 210-22 DS M/31102 9109021
2B12X2T W01-R58-4061 12''X2 SP1541 FD 412-22 DS M/31122 9109041
2B12''X2-E W01-R58-4039 12''X2 Extend SP2782NB
2B14 1/2''X2T W01-R58-4064 14'' 1/2X2 SP1556 FD 614-26 DS M/31142 9109061
2B16X2T W01-R58-4067 16''X2 SP1557 FD 816-30 DS M/31162 9109171
