2K142156 AIRSUSTECH Industrial Double Convoluted Air Spring Full Stroke 80 MM
2K142156 AIRSUSTECH Industrial Double Convoluted Air Spring Full Stroke 80 MM
2K142156 AIRSUSTECH Industrial Double Convoluted Air Spring Full Stroke 80 MM
2K142156 AIRSUSTECH Industrial Double Convoluted Air Spring Full Stroke 80 MM
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2K142156
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Color :
Black
Standard :
OEM Standard
Sample :
Available
HS Code :
8708809000
Type of Goods :
Convoluted Air Spring
Numbers of Convolutions :
Two / 2
Material :
Rubber and Aluminum
Factory Warranty :
12 Months
Description
2K142156 AIRSUSTECH Industrial Double Convoluted Air Spring Full Stroke 80 MM
2K142156 AIRSUSTECH Industrial Double Convoluted Air Spring Full Stroke 80 MM
Product Characteristics
Minimum Height 80 mm
Maximum Height 169 mm
Full Stroke 80 mm
PCD 70 mm
Cover Plate Diameter 105 mm
Design Height 156 mm
Max. Outer Diameter 155 mm
Air Inlet ZG1/4''
Mounting Hole M8
Product Technical Parameter Table
Load (kg) Installation Height (mm) Inflation Pressure
0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa
80 201 311 427 537 670 763 918
99 188 287 382 483 597 693 808
118 167 256 341 420 509 600 704
137 138 173 238 292 340 470 488
156 51 98 140 175 207 240 299
169 36 60 94 126 162 197 237
Stiffness and Frequency at Design Height
Vertical Stiffness (Kg/cm) 37 57 73 80 82 84 91
Inherent Frequency Hz 4.31 3.83 3.61 3.38 3.15 2.97 2.76
cpm 259 230 217 203 189 179 166
Key Benefits of AIRSUSTECH Bellows Cylinders
  • Seal-Free Design: Reduces maintenance requirements and improves long-term reliability.
  • Consistent Performance: Maintains stable operation even under fluctuating pressure conditions.
  • Durable Construction: Built to withstand harsh industrial environments.
  • Wide Industrial Applications: Suitable for automation systems, material handling, and precision machinery.
Thanks to their functional versatility and straightforward design, AIRSUSTECH bellows cylinders offer an ideal solution for engineers seeking reliable linear motion control and vibration management in diverse pneumatic applications.
AIRSUSTECH Other K Series Air Spring Details
Part No. Max. O.D. at 0.7MPa (mm) Min. H. (mm) Safe H. (mm) Cover Plate O.D. (mm) PCD (mm)
1K130070 150 55 90 85 44.5
1K142146 155 55 150 105 70
1K155146 170 55 150 105 70
1K176120 195 55 130 127 70
2K130118 150 80 125 85 44.5
2K142156 155 80 160 105 70
2K142187 155 80 192 105 70
2K155181 170 80 190 105 70
2K176180 195 80 192 127 70

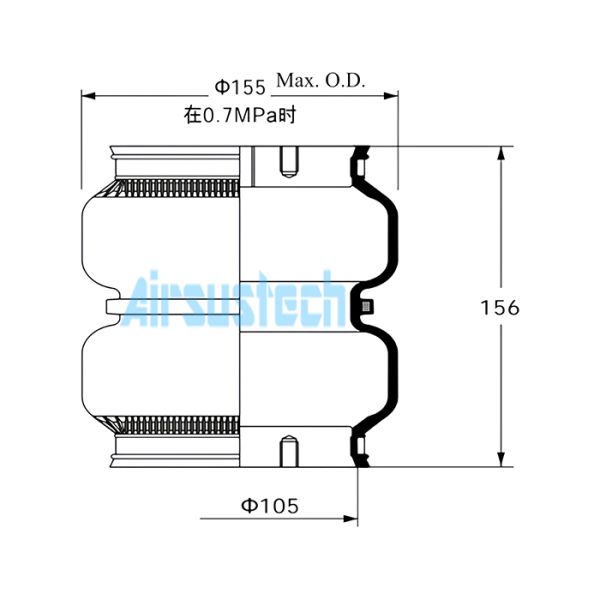

The Drawing of AIRSUSTECH 2K142156 Air Bags
2K142156 AIRSUSTECH Industrial Double Convoluted Air Spring Full Stroke 80 MM
