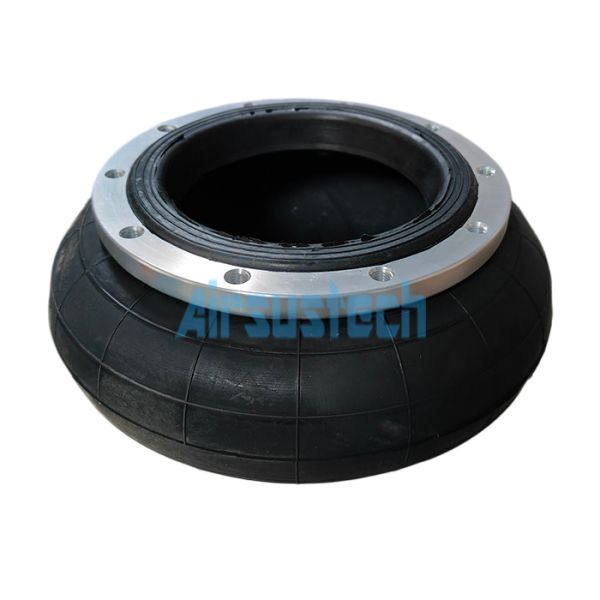

AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1H320124
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Type of Goods :
Flange Air Spring
Structure :
Single Convolution
Full Stroke :
90 MM
PCD :
197 MM
Color :
Black
Factory Warranty :
1 Year
Compatibility :
Easy to Replace
Standard :
OEM Standard
Description
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke

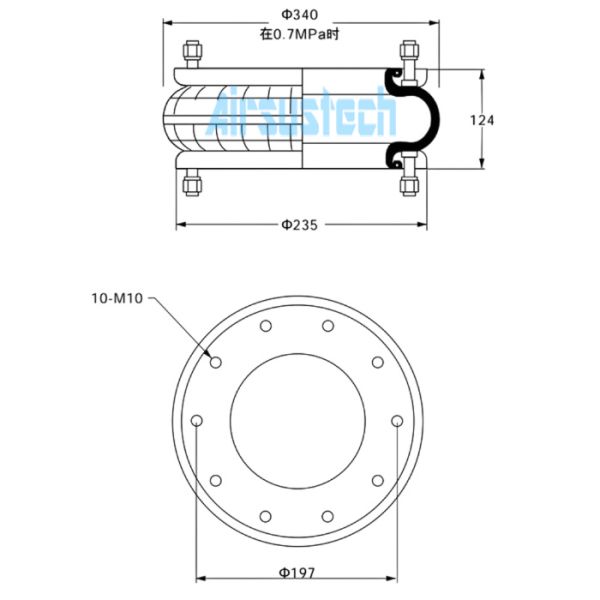

Product Specifications
Minimum Height 60 mm
Maximum Height 162 mm
Center Distance Between Two Farthest Bolts 197 mm
Flange Ring Diameter 235 mm
Max. Outer O.D. 340 mm
Design Height 124 mm
Mounting Bolts 10-M10
Safe Height 142 mm
AIRSUSTECH Single Flange Connection Air Spring Models
Product Number Nominal Diameter (mm) 0.7Mpa Max.Diameter Stroke Range Min. Height Max. Height
1H086060 50 110 42-90 42 90
1H120060 80 130 42-65 42 65
1H150076 104 160 46-85 46 85
1H188102-A 120 210 52-115 52 115
1H215120 125 233 42-140 42 140
1H235118 180 260 65-172 65 172
1H235150 180 260 65-172 65 172
1H260135 170 290 55-155 55 155
1H260126 195 300 50-144 50 144
1H320124 230 340 52-162 52 162
1H320214 Flange Air Spring Technical Parameters
Load (kg) Installation Height (mm) Inflation Pressure 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa
60 1168 1769 2371 2956 3575 4177 4788
77 1104 1660 2245 2810 3394 3960 4542
94 1021 1540 2067 2585 3121 3660 4195
111 921 1401 1861 2340 2837 3333 3829
124 798 1228 1647 2071 2520 2965 3428
142 657 1006 1367 1732 2098 2496 2903
162 514 797 1079 1380 1699 2035 2371
Stiffness and Frequency at Design Height
Parameter 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa
Vertical Stiffness (Kg/cm) 215 298 359 439 537 616 704
Inherent Frequency (Hz) 2.60 2.47 2.34 2.34 2.31 2.28 2.27
Inherent Frequency (cpm) 156 148 140 140 139 137 136
Key Functions in Industrial Applications
  • Shock Absorption
    Effectively dampens impact forces generated during equipment operation, reducing mechanical stress and preventing damage to sensitive components.
  • Vibration Isolation
    Isolates vibration transmission between machine parts and supporting structures, minimizing disruption to surrounding systems and enhancing precision.
  • Enhanced Equipment Stability
    By reducing unwanted motion and vibration, the 1H320124 helps maintain consistent performance, especially in applications requiring high accuracy or continuous operation.
  • Improved Work Efficiency
    Stable operation leads to reduced downtime, fewer interruptions, and more consistent output, contributing to overall productivity gains.

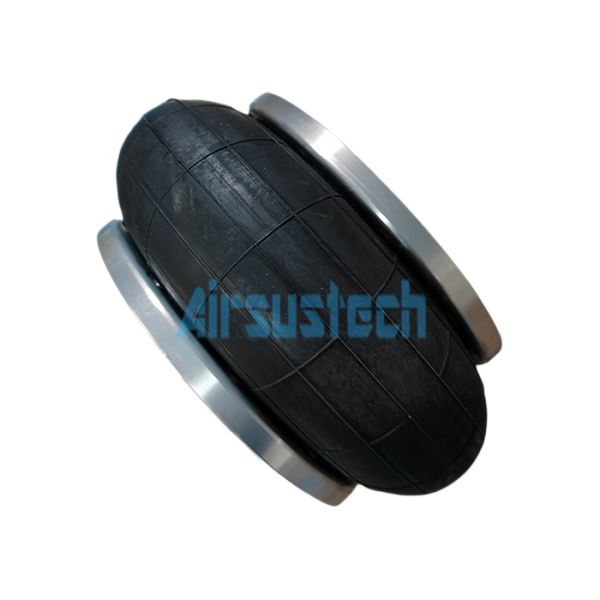

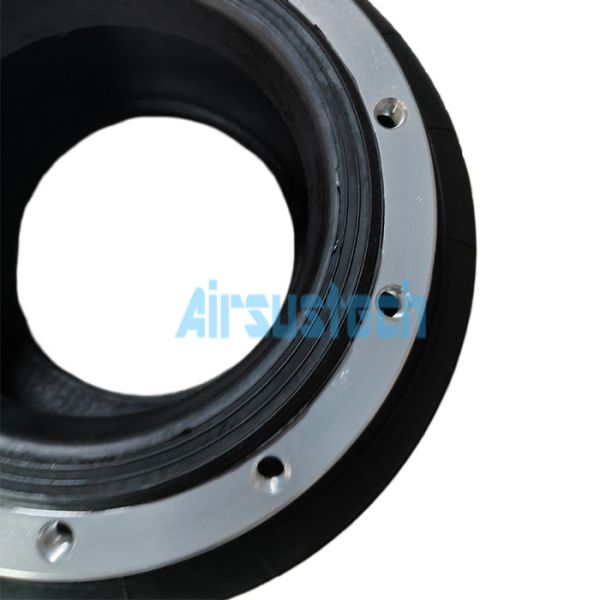

1H320124 AIRSUSTECH Flange Connection Air Spring
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
Quality Control and Manufacturing
AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke AIRSUSTECH Single Convoluted Air Bag 1H320124 with Flange Ring 90 MM Stroke
