Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7025
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber+Steel
Structure :
Double Convoluted
Cross :
Firestone W01-358-7025
Quality :
100% Inspected
HS Code :
8708809000
Advantages :
Safe and Durable
Flexibility :
Good
Natural O.D. :
146 MM
Description
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Product Overview

Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF

Product Characteristics
Specification Value
Port Size 1/4-18NPTF
Mounting Hole 2X3/8-16UNC
Minimum Height 65 mm
Maximum Height 175 mm
PCD 44 mm
Bead Plate O.D. 111 mm
Full Stroke 110 mm
Natural Diameter 146 mm
Max. O.D. 165 mm
Cross References
  • Firestone W01-358-7025
  • Firestone W01 358 7025
  • Firestone W013587025
  • Firestone WO1-358-7025
  • Firestone WO1 358 7025
  • Firestone WO13587025
Firestone Style 268 Air Spring Details and Part Numbers
Configuration Part Numbers
Blind nuts, 1/4 NPT W01-358-7025, W01 358 7025, W013587025
WO1-358-7025, WO1 358 7025, WO13587025
Blind nuts, 3/4 NPT W01-358-7047, W01 358 7047, W013587047
WO1-358-7047, WO1 358 7047, WO13587047
Blind nuts, 1/4 NPT both ends W01-358-7035, W01 358 7035, W013587035
WO1-358-7035, WO1 358 7035, WO13587035
3/4 NPT both ends (no blind nuts) W01-606-7025, W01 606 7025, W016067025
WO1-606-7025, WO1 606 7025, WO16067025
Socket head aluminum bead rings (bolts, nuts, washers not included, use cap screws) W01-358-0030, W01 358 0030, W013580030
WO1-358-0030, WO1 358 0030, WO13580030
3/4 NPT (only) upper plate, blind nuts lower plate W01-358-7030, W01 358 7030, W013587030
WO1-358-7030, WO1 358 7030, WO13587030
Rubber bellows only W01-358-0319, W01 358 0319, W013580319
WO1-358-0319, WO1 358 0319, WO13580319
AIRSUSTECH 2B7025 Cross W01-358-7025 Rubber Air Spring Description

Upgrade your heavy-duty vehicle suspension with the AIRSUSTECH 2B7025 Cross W01-358-7025 rubber air spring, designed to deliver unmatched durability, stability, and driving comfort. Crafted from high-strength synthetic rubber, this air spring offers exceptional resistance to aging and wear, ensuring reliable performance even in the most demanding road and work conditions.

Why Choose AIRSUSTECH 2B7025 Air Springs?
  • Automatic Load Adaptation: Precision valve system adjusts stiffness based on vehicle load, maintaining stable ride performance on any terrain.
  • Superior Shock Absorption: Effectively reduces road impact and vibrations, providing a smoother and more comfortable ride for drivers.
  • Long-Lasting Durability: High-quality rubber materials withstand harsh environments, reducing maintenance and downtime.
  • Enhanced Vehicle Stability: Improves handling, safety, and control for trucks, buses, and special engineering vehicles.

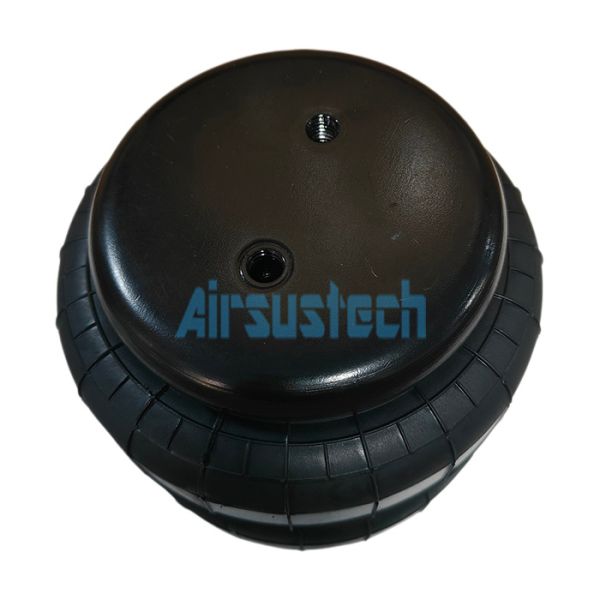

AIRSUSTECH 2B7025 Cross W01-358-7025 Air Spring Physical Pictures
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
Firestone Style 268 Air Bellow W01-358-7025 Double Convoluted Air Spring 1/4NPTF
