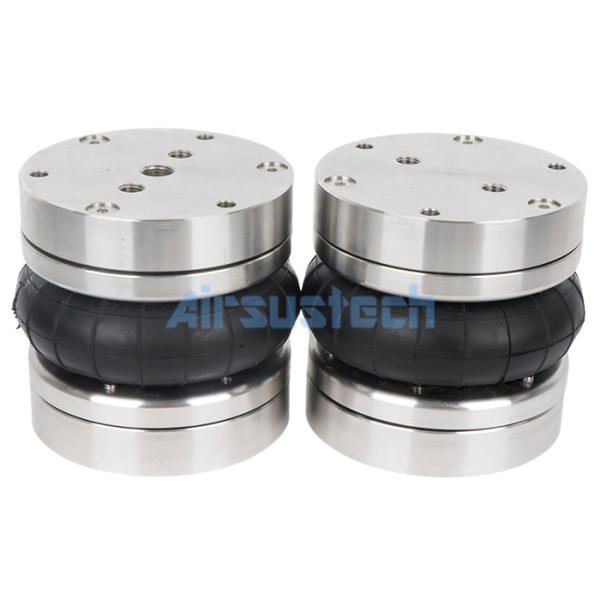

4.5×1 Air Spring Actuator Parker 9109400 Pneumatic Air Bellows for Anti-Vibration Table

Product Introduction

AIRSUSTECH air springs represent a premium solution for both actuation and vibration isolation needs, combining exceptional durability with precision engineering and cost-effectiveness. These components are designed to deliver superior performance across various industrial applications through proven designs and robust construction. The air springs feature fabric-reinforced Neoprene or Natural Rubber flex members, complemented by corrosion-resistant end retainers, ensuring long-term reliability and consistent operation. Our comprehensive product range includes Single, Double, and Triple Convoluted Bellows, along with Rolling Lobe and Sleeve Type configurations, available in multiple sizes to suit specific application requirements.

The Features of 1B4.5×1P Air Bag

• This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 45 mm, a maximum extended height of 90 mm, and a working stroke of 45 mm.
• For the 1B4.5×1P model, the cover plate diameter is 125 mm, and the center-to-center distance is 110 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 125 mm.
• The industrial convoluted rubber air spring operates via gas filling. Its air connection is 3/8 BSP, and the screw nut size is M6.

Corresponding International Models

Packaging & Shipping

Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

The Detailed Pictutres

Our Technicians Measure the Air Springs

Production Equipments
