Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6×2P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Product Number :
2B6×2P
Threaded Hole :
4-M8
Total Stroke :
115 MM
Structure :
Double Convoluted
Firestone :
W01-R58-4070
Operating Temperature :
-40℃+70℃
Operation :
Gas-filled
Description

Norgren PM/31062 G1/2 M8 Stamped Flange Suspension Air Spring for Roller Tensioning

Product Specifications and Technical Datas

Diameter of the Top Cover Plate: 152.5 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 127 mm
Diameter of the Bottom Cover Plate: 152.5 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 127 mm
Screw (Nut) Thread Count for the Top Cover Plate: 4×M8
Screw (Nut) Thread Count for the Bottom Cover Plate: 4×M8
Air Inlet: G1/2
Max Diameter of the Rubber Bellow: 178 mm
Installation Space: 195 mm
Design Height: 160 mm
Maximum Height: 195 mm
Minimum Height: 80 mm

Vibration isolation - dynamic characteristics values

Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 2.6 3.5 4.5 5.5 6.5 7.6 2.0
Spring Rate [N/cm] 675 855 1035 1215 1395 1570
Natural Frequency [Hz] 2.5 2.4 2.4 2.3 2.3 2.3

Pneumatic application - static characteristic values

Pressure p [bar] 3 4 5 6 7 8 Vol.[l]
Height H [mm] 160 2.6 3.5 4.5 5.5 6.5 7.6 2.0
140 3.3 4.5 5.6 6.8 8.1 9.3 1.7
120 3.9 5.2 6.6 8.0 9.4 10.8 1.5
100 4.6 6.2 7.8 9.4 11.1 12.8 1.2

OEM Cross References

Air Spring Supplier: Norgren

Supplier Number: PM/31062, PM31062, PM 31062

Air Spring Supplier: Firestone

Supplier Number: W01-R58-4070, W01R584070, W01 R58 4070

Air Spring Supplier: Dunlop Pneuride

Supplier Number: 6"x2 (Al), 6x2 (Al), 6'x2 (Al)

Air Spring Supplier: Dunlop Springride

Supplier Number: SP2917

Air Spring Supplier: Contitech

Supplier Number: FD 76-14 DI, FD 7614 DI, FD 76 14 DI

Air Spring Supplier: Parker

Supplier Number: 9109001A

Safety Considerations​​ of AIRSUSTECH Air Springs

  1. Regularly inspect for signs of wear or fatigue
  2. Use only manufacturer-approved mounting hardware
  3. Follow prescribed maintenance intervals

​​Failure to observe these guidelines may result in:​​

  1. Premature component failure
  2. Safety hazards to personnel
  3. Voided product warranties

For clarification on any operational parameter, consult the official product manual or contact technical support.

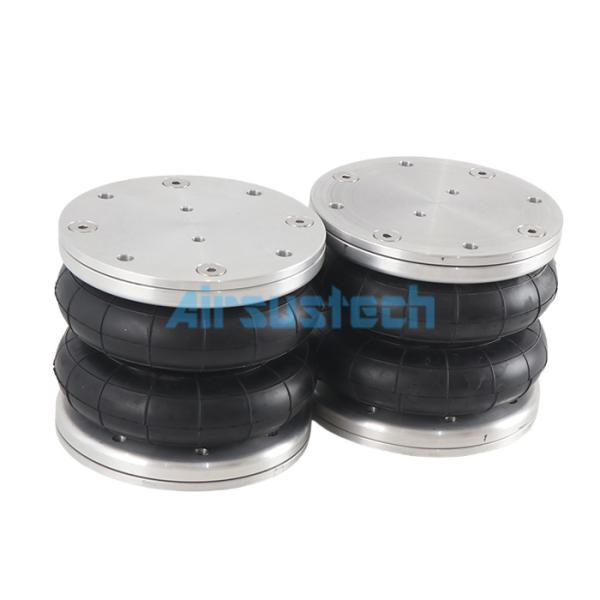

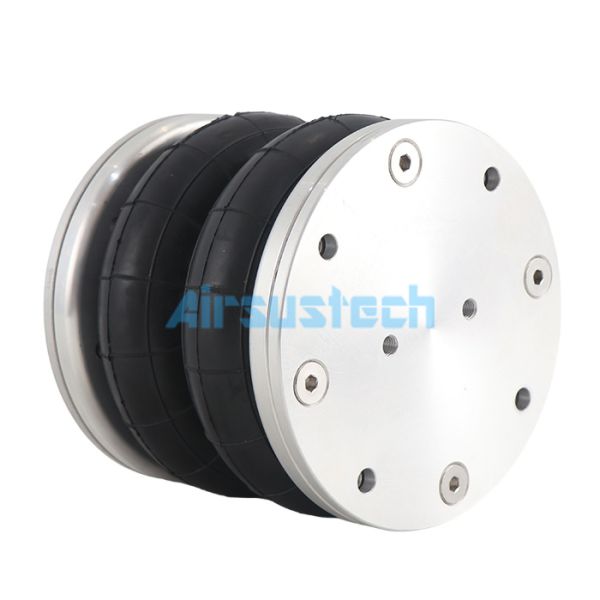

The Detailed Photos

Norgren PM/31062 G1/2 M8 Stamped Flange Suspension Air Spring for Roller TensioningNorgren PM/31062 G1/2 M8 Stamped Flange Suspension Air Spring for Roller Tensioning

Manufacturing Facility
Norgren PM/31062 G1/2 M8 Stamped Flange Suspension Air Spring for Roller Tensioning
AIRSUSTECH production facility overview
Norgren PM/31062 G1/2 M8 Stamped Flange Suspension Air Spring for Roller Tensioning
Precision manufacturing equipment
Norgren PM/31062 G1/2 M8 Stamped Flange Suspension Air Spring for Roller Tensioning
Quality control inspection process
