Specifications
Brand Name :
AIRSUSTECH
Part Number :
1B8×6
Min. Height :
2 Inches
Max. Height :
7 Inches
Material :
Rubber+Steel
Gas Filled :
1/4NPT
Manufacturer Warranty :
One Year
Working Temperature :
-40℃+70℃
Model Number :
1B8×6
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Description
Firestone W01-358-7598 1/4NPT Single Convoluted Rubber Air Spring for Reduce Shock
Product Specifications
Attribute Value
Brand Name AIRSUSTECH
Part Number 1B8×6
Min. Height 2 Inches
Max. Height 7 Inches
Material Rubber+Steel
Gas Filled 1/4NPT
Manufacturer Warranty One Year
Working Temperature -40℃+70℃
Detailed Specifications: AIRSUSTECH VS. Firestone
Model Number 1B8×6 W01-358-7598
Compressed Height 60 MM 2 Inches
Extended Height 180 MM 7 Inches
Center Distance 70 MM 2.75 Inches
Cover Plate Width 135 MM 5.31 Inches
Air Fitting 1/4-18NPT 1/4NPT
Threaded Hole 3/8-16UNC 3/8-16UNC
Maximum Outside Diameter 240 MM 9.6 Inches
OEM Part Numbers
Firestone W01-358-7598 1/4NPT, WO1-358-7598 1/4NPT
Firestone W013587598 1/4NPT, WO13587598 1/4NPT
Firestone W01 358 7598 1/4NPT, WO1 358 7598 1/4NPT
Firestone W01-358-7605 3/4NPT, WO1-358-7605 3/4NPT
Firestone W013587605 3/4NPT, WO13587605 3/4NPT
Firestone W01 358 7605 3/4NPT, WO1 358 7605 3/4NPT
Goodyear 1B8-580
Goodyear 1B8580
Goodyear 1B8 580
Applications
  • Reel Tensioning
  • Machine Isolation
  • Direct Force
  • Impact Absorbtion
  • Roller Tensioning
  • Platform Lift
  • Short Stroke Mechanical Linkage
  • Hot Foll Stamping Press
  • Automation Technology
  • Conveyor Systems
  • Agricultural Machinery
  • Food Industry
  • Paper and Textile Equipment
  • Pantograph Drives
  • Sawmill Machinery
Features
  1. Impact and vibration absorption. Reduces the burdens placed on cargo, drivers, and passengers.
  2. Vehicle height adjustment function. Facilitates passenger boarding/disembarking and cargo receiving operations.
  3. Stabilization of vehicle height during travel. Maintains a consistent vehicle height by adjusting the air pressure.
  4. Increase in truck axle weight. Assists starting when on a slope, and raises driving force when traveling on two wheels.
  5. Reduction in part quantity (diaphragm type). Reducing the number of parts can contribute to weight reduction.
Cross Reference Numbers
AIRSUSTECH NO. Cross Code
1B130070 Contitech FS 50-5
Firestone W01-M58-6140
Firestone W01-358-0017
Firestone W01-358-0010
130070J-1
1B6910 Contitech FS 200-10
Firestone W01-M58-6374
Phoenix SP 1B 12
Dunlop(FR) 9''1/4x1 S09101
B osch 822419004
Festo EB-250-85
Norgren PM/31091(8 1/4x1)
1B1209 Phoenix SP 1 B 07
Firestone W01-M58-6165
Contitech FS 120-9
Dunlop 8''x1 S08101
B osch 822419003
Festo EB-215-80
Norgren PM/31081(8x1)
Weforma WBE 300-E1
Airtech 140293
Airtech 111003/1B-190FB
Megatech 1S120-9 3/4 M8
1B5330 Firestone W01-358-7008
Contitech FS 330-11 474
Goodyear 1B12-300/313
Triangle 6374 4474
Holland (Neway) 90557226

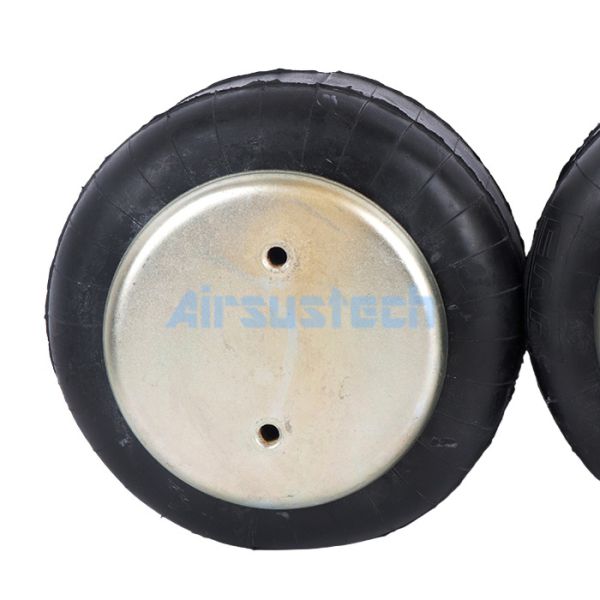

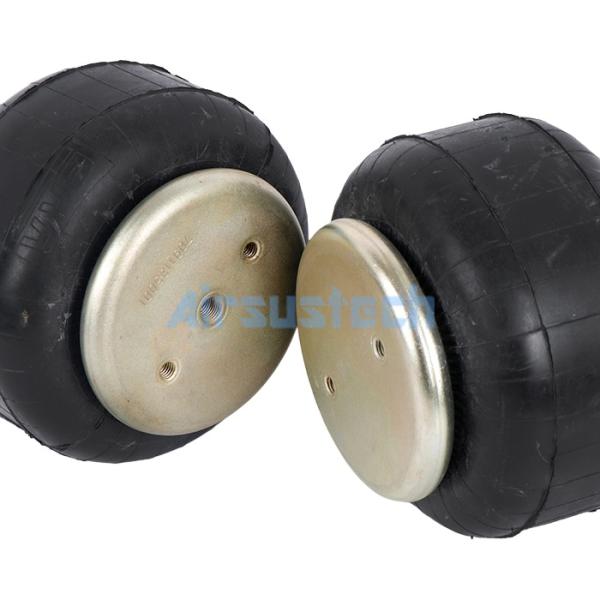

Product Images
Firestone W01-358-7598 1/4NPT Single Convoluted Rubber Air Spring for Reduce Shock
Firestone W01-358-7598 1/4NPT Single Convoluted Rubber Air Spring for Reduce Shock
Manufacturing Facility
Firestone W01-358-7598 1/4NPT Single Convoluted Rubber Air Spring for Reduce Shock
AIRSUSTECH production facility overview
Firestone W01-358-7598 1/4NPT Single Convoluted Rubber Air Spring for Reduce Shock
Precision manufacturing equipment
Firestone W01-358-7598 1/4NPT Single Convoluted Rubber Air Spring for Reduce Shock
Quality control inspection process
