Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
G3014
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Model No. :
G3014
Air Fitting :
1/4NPT
Sample :
Available
Stroke :
1.8 Inches
Firestone :
W02-358-3001
Temperature Range :
-40℃+70℃
Warranty :
12 Months
Description
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Product Attributes
Attribute Value
Supplier AIRSUSTECH
Model No. G3014
Air Fitting 1/4NPT
Sample Available
Stroke 1.8 Inches
Firestone W02-358-3001
Temperature Range -40℃+70℃
Warranty 12 Months
Product Description

Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension

Product Corresponding Models

ContiTech SK37-6P02
ContiTech SK376P02
ContiTech SK37 6P02
Goodyear 1S3-013
Goodyear 1S3013
Goodyear 1S3 013
Firestone W02-358-3000
Firestone W023583000
Firestone W02 358 3000
Firestone W02-358-3001
Firestone W023583001
Firestone W02 358 3001
Prevost 95020

Product Specifications and Technical Data
[1] Minimum height: 1.5 in.
[2] Maximum height: 3.3 in.
[3] Total stroke: 1.8 in.
[4] Piston height: 0.98 in.
[5] Maximum outer width: 3.46 in.
[6] Installation space: 3.94 in.
[7] Piston diameter: 2.99 in.
[8] Top plate width: 2.40 in.
[9] Air fitting: 1/4 NPT, 5/8-11UNC
[10] Screw type: 5/16-18UNC
Vibration Isolation - Dynamic Characteristics Values
Pressure P [psi] 40 60 80 100 120 Vol. V[l]
Force (Load) [lbf] 231 327 439 553 677 9.15
Spring Rate [lbf/in.] 174 241 312 378 441
Natural Frequency [Hz] 2.8 2.7 2.7 2.6 2.6
Pneumatic Application - Static Characteristic Values
Pressure p [psi] 40 60 80 100 120 Vol.[l]
Height H [in.] 3.0 180 262 347 431 519 12
2.5 211 319 429 537 647 9.8
2.0 226 341 456 574 691 7.3
1.5 238 358 477 598 718 4.9
Ideal Applications
  • Ride springs for passenger cars and trucks
  • Isolators for truck cab suspensions
  • Seat springs and cab springs for trucks and buses
  • Actuators and isolators for industrial applications
Six Reasons to Choose Us
  • High stability
  • In situ installation
  • Ride comfort
  • Safe and durable
  • Effective shock absorption
  • Reduce the sound
We Have Other Sleeve Types Air Springs
Part Number Piston Number Cross Reference
1S3-011 ASB-06-7-014 FIRESTONE W02-358-4001
LES AUTOBUS G5006637
LINK CAB&SEAT SPRINGS 1101-0001
NOVABUS N12687
PREVOST 95-0208
1S3-013 ASB-06-7-017 FIRESTONE W02-358-3000
FIRESTONE W02-358-3001
PREVOST 950208
1S4-007 ASC-08-7-139 CONTI 67770
CONTI SC29-0001
FIRESTONE W02-358-7001
FIRESTONE W02-358-7002
FIRESTONE W02-358-7031
1S4-008 ASC-08-7-005 FIRESTONE W02-358-7010
LINK CAB&SEAT SPRINGS 1101-0021
Mac-k truck TRUCK 227QS39301
1S4-016 ASC-08-7-137 INT'L/NAVISTAR 1680378c1
1S4-030 ASC-08-7-093 FREIGHTLINER 20-12461
1S4-035 ASC-08-7-163 CONTI 62844
CONTI SZ70-5060P02
FIRESTONE W02-358-7003
FIRESTONE W02-358-7050
FIRESTONE W02-358-7055
1S4-042 ASC-08-7-219 VOL-VO 66003-0007
1S4-044 ASC-08-7-194 CONTI 62561
CONTI SZ70-5067
LINK CAB&SEAT SPRINGS 1101-0023
1S4-056 ASC-08-7-194 FIRESTONE W02-358-7040
LINK CAB&SEAT SPRINGS 1101-0024
1S4-058 ASC-08-7-139 CONTI 67858
CONTI SC29-0086
FIRESTONE W02-358-7086
1S4-067 ASC-08-7-137 FIRESTONE W02-358-7007
Mac-k truck TRUCK 227QS34B
1S4-074 ASC-08-7-134 VOL-VO 66003-3201
1S4-123 ASC-08-7-157 CONTI 67769
CONTI SC29-0046
CONTI SZ70-5060P02
FIRESTONE W02-358-7046
1S4-175 ASC-08-7-157 CONTI 67858
CONTI SZ29-0086
LINK CAB&SEAT SPRINGS 1101-0025
1S4-187 579-08-1-049 DANA/SPICER SR1VA103
Product Images

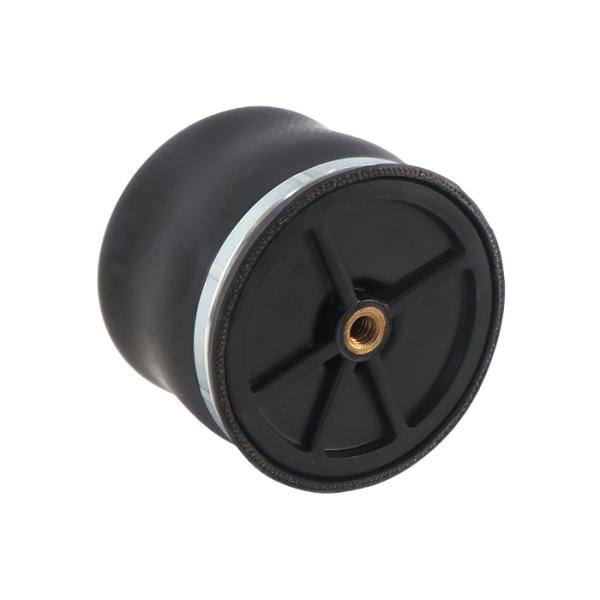

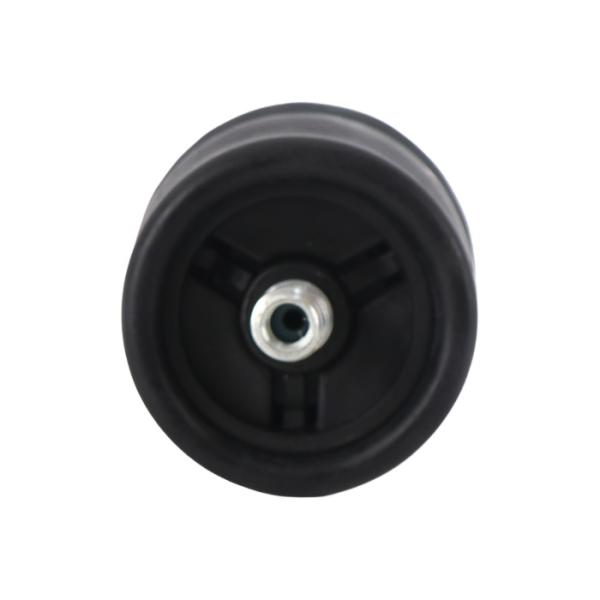

Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Manufacturing Facility
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
AIRSUSTECH production facility overview
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Precision manufacturing equipment
Continental Sleeve Type Air Spring SK37-6P02 1/4 NPT Actuator Seat Air Suspension
Quality control inspection process
