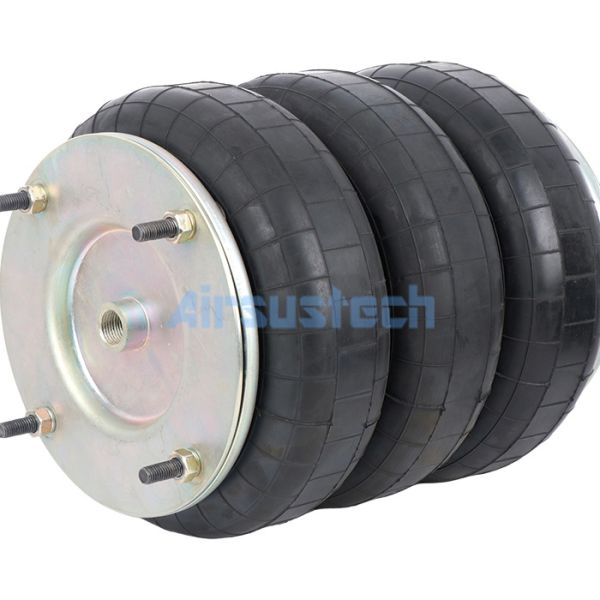

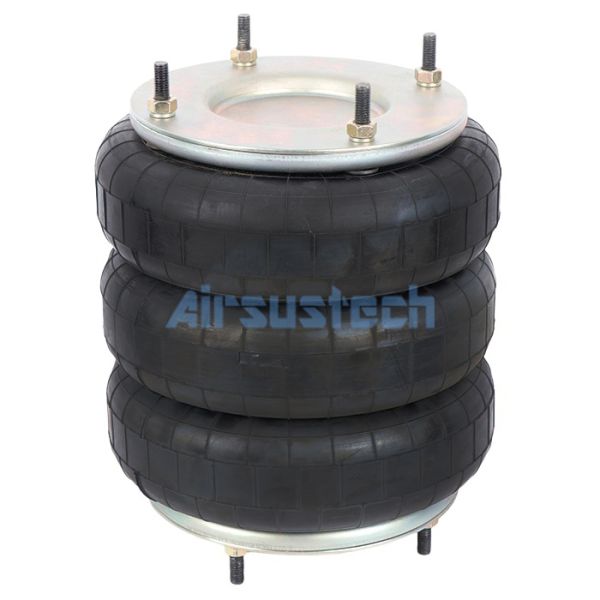

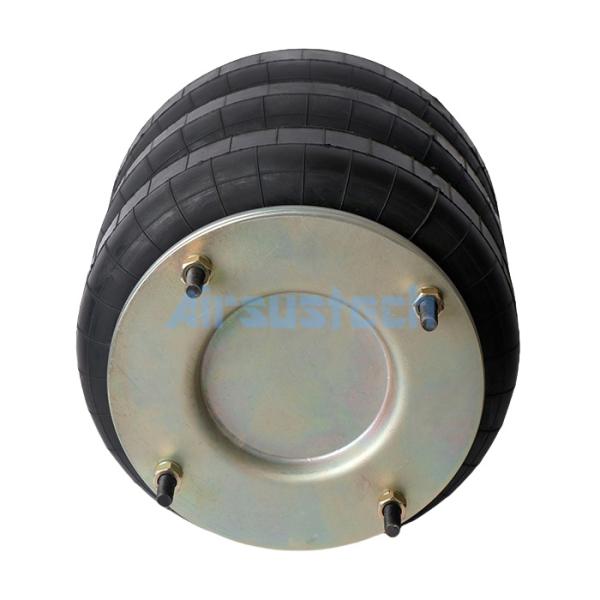

10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B10×3T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Product Number :
3B10×3T
Working Stroke :
265 MM
Minimum Usable Height :
100 MM
Norgren :
M/31103
Max Inflation Pressure :
7 Bar
Color :
Black
After-sales Service :
12 Months
Description
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
The Features of AIRSUSTECH 3B10 ×3T
  • AIRSUSTECH flange connection air spring 3B10×3T model has a G1/2 port size, the minimum usable height is 100 mm and the maximum usable height is 365 mm.
  • The stroke of 3B10×3T is 265 mm, working temperature is -30℃ to+70℃.
  • The center to center distance diameter is 171 mm, the cover plate width is 185 mm and the screw nuts type are 8-M6.
  • AIRSUSTECH 3B10×3T air bag cross Dunlop Pneuride 10''×3, Firestone W01-R58-4059, Contitech FT 210-32 DS and Norgren M/31103.
OEM Cross References
Dunlop Pneuride 10''×3 Dunlop Pneuride 10'×3 Dunlop Pneuride 10×3
Dunlop Springride SP1539
Firestone Style W01-R58-4059 Firestone Style W01R584059 Firestone Style W01 R58 4059
Contitech Part Number: FT 210-32 DS Contitech Part Number: FT 21032 DS Contitech Part Number: FT 210 32 DS
Norgren Air Actuator: M/31103 Norgren Air Actuator: M31103 Norgren Air Actuator: M 31103
Parker 9109031
Airkraft 3B-255 / 115055
The Specifications of Dunlop 10 ''×3
Maximum diameter 280 mm
Space required 295 mm
Minimum height 100 mm
Maximum height 365 mm
Total stroke 265 mm
Static height 235 mm
Air connection 1/2BSP
Screws type 4-M10
Center distance 181 mm
Cover plate diameter 210 mm
The Pros of AIRSUSTECH Air Bags
  1. 100% Brand New.
  2. Durable and long service life.
  3. Direct replacement for your old or broken one, easy installation.
  4. Built to meet standard specification, strictly follow factory quality control.
The Related Images of 3B10 ×3T
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
Factory Workshop
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
Air spring production facility
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
Quality control inspection
10'' Inches Air Spring Dunlop 10×3 Convoluted Air Suspension for Vibration Isolation
Air spring manufacturing process
