AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2H350255
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Product Number :
2H350255
Static Height :
255 MM
Screw Type :
14-M10
Material :
Rubber and Aluminum Flange
Sample :
Available
Operation :
Gas-Filled
Working Temperature :
-40℃+70℃
Description

AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator

Product Information

Brand Name AIRSUSTECH Part Number 2H350255
Convolutions two Warranty one year
Packaging cartons or as customers' request Condition 100% brand new

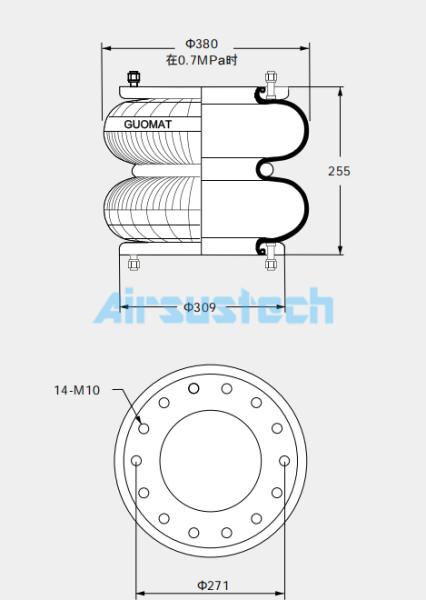

The Specifications of 2H350255 Air Bellows

Minimum height: 90 mm

Maximum height: 321 mm

Full stroke: 231 mm

Flange ring diameter: 309 mm

Center to center distance: 271 mm

Design height: 255 mm

Maximum outer diameter: 380 mm

Screw nuts type: 14×M10

2H350255 Technical Parameters

Load (kg) Installation Height Inflation Pressure 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa Volume at 0.7MPa (dm3)
90 (mm) 184 2722 3628 4538 5474 6381 7318 6.03
156 (mm) 1567 2355 3135 3944 4799 5605 6146 12.03
222 (mm) 1249 1877 2532 3187 3890 4570 5237 17.13
255 (mm) 1095 1679 2269 2851 3480 4098 4726 19.09
295 (mm) 892 1376 1883 2384 2902 3430 4000 20.62
320 (mm) 737 1162 1587 2010 2467 2920 3431 21.89
Stiffness and Frequency
at Design Height		 Vertical Stiffness (Kg/cm) 121 160 215 265 305 342 384
Natural Frequency Hz 1.66 1.55 1.54 1.53 1.48 1.45 1.43
cpm 100 93 92 92 89 87 86

Product Core Competitiveness


1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.


2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.


3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.


4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.

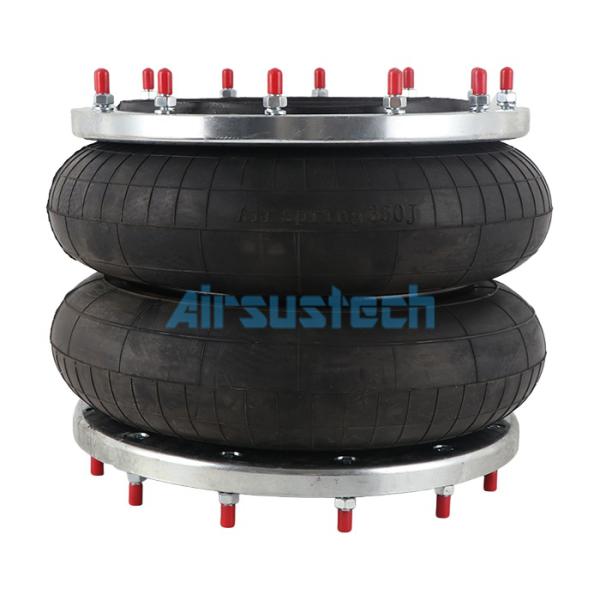

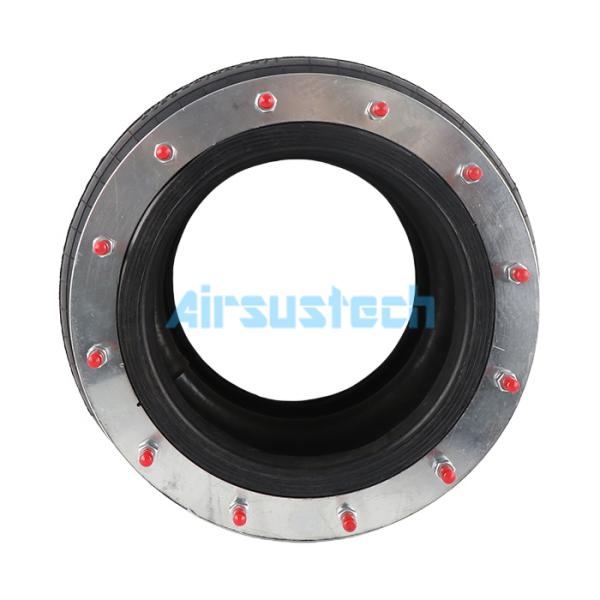

Product Images

AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air ActuatorAIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator

Factory Workshop

AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
AIRSUSTECH 2H350255 Flange Connection Air Spring with 14-M10 Screws Air Actuator
