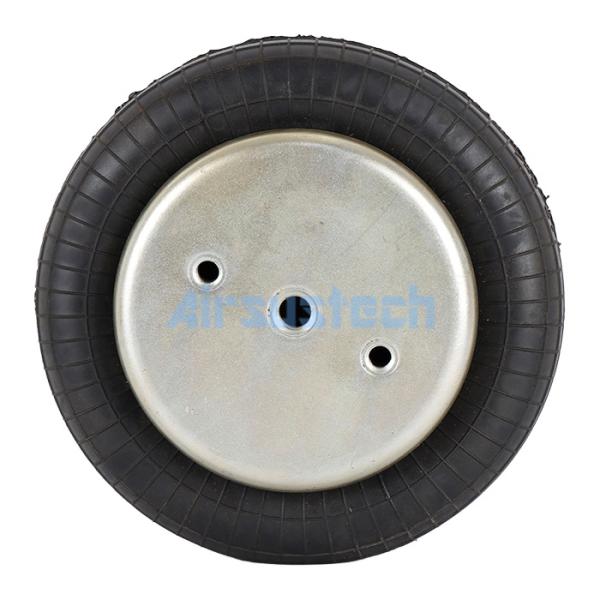

Goodyear 1B8-550 Air Spring 579-913-530 Convoluted Air Bag for Vibratory Conveyors

The Description of Air Spring

AIRSUSTECH air springs are engineered in single, double, and triple bellow configurations to meet various suspension and industrial requirements. These high-performance components are widely implemented across truck and trailer systems, as well as industrial facilities, delivering reliable operation in demanding environments. The unique design of AIRSUSTECH air springs enables both linear and angular motion capabilities while maintaining a significantly more compact form factor compared to conventional air cylinders. This space-efficient profile allows for easier integration in equipment where installation space is limited.

Product Details

Port size: 1/4NPTF

Threaded hole: 2×3/8-16UNC

Min. compressed height: 50 mm

Max. extended height: 140 mm

Stroke: 90 mm

Cover plate diameter: 135 mm

Center distance diameter: 70 mm

Maximum diameter: 230 mm

OEM Original Manufacturer

The Applications and Pros of AIRSUSTECH Air Bellows

These adaptable air spring solutions perform critical functions in numerous industrial processes, including:

1. Pressing operations
2. Tension control systems
3. Rolling applications
4. Conveying mechanisms
5. Lifting equipment
6. Packaging machinery

Beyond their mechanical functions, AIRSUSTECH air springs serve as highly effective vibration dampers, substantially reducing the transmission of harmful vibrations that can impact equipment performance and longevity. Their superior vibration isolation properties help maintain operational stability across various applications.

​​Key Advantages:​​

1. Multiple bellow configurations for different load requirements.
2. Space-saving design for compact installations.
3. Smooth, precise motion control.
4. Excellent vibration damping characteristics.
5. Durable construction for long service life.
