Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1H5081
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Product NO. :
1H5081
Color :
Black
Threaded Hole :
M8×1.25
Flange O.D. :
155 MM
Max Inflation Pressure :
7 Bar
Number of Ply Bellows :
1
Shippment :
By Sea, By Air, by DHL/Fedex/UPS
Description

Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole

The Technical Parameters of 1H5081

Center to center distance: 138 mm

Flange ring diameter: 155 mm

Threaded hole type: 10×M8×1.25

Max. outer diameter: 210 mm

Minimum height: 45 mm

Maximum height: 145 mm

Static height: 95 mm

Stroke: 100 mm

Cross References

Pirelli Torpress 89023
GART ARI.275
Pirelli Torpress 88540
Pirelli Torpress 88820
Pirelli Torpress 93079
Pirelli Torpress 89023

The Advantages of AIRSUSTECH'S Factory

  1. A Complete Production Capablity and Special Testing Facilities.
  2. German import WP GK-200A model of mixing machine and rubber mixing line.
  3. Italy technology and independent design improved cord breaking and bead wire production workishop.
  4. Air spring forming workshop.
  5. Air spring vulcanizing workshop.
  6. Pieces of metal processing workshop.
  7. Air spring crimping workshop.
  8. A first-class production technology and scientific production workshop, is to ensure that my company first-class product them in conditions.

Other AIRSUSTECH Single Types Air Springs

Product Number Nonimal Diameter (mm) 0.7Mpa Max.Diameter Load at Design Height 0.7Mpa
Natural Frequency		 Stroke Range
0.2Mpa 0.5MPa 0.7Mpa Min. Height Max. Height
1H086060 50 110 44 123 175 5.18 42 90
1H120060 80 130 122 313 444 3.79 42 65
1H150076 104 160 164 435 621 3.5 46 85
1H188102-A 120 210 208 587 862 3.05 52 115
1H215120 125 233 294 768 1109 2.83 42 140
1H235118 180 260 474 1205 1740 2.29 65 172
1H235150 180 260 441 1205 1740 2.29 65 172
1H260135 170 290 425 1150 1670 2.4 55 155
1H260126 195 300 643 1662 2370 2.46 50 144
1H320124 230 340 798 2071 2965 2.28 52 3.9

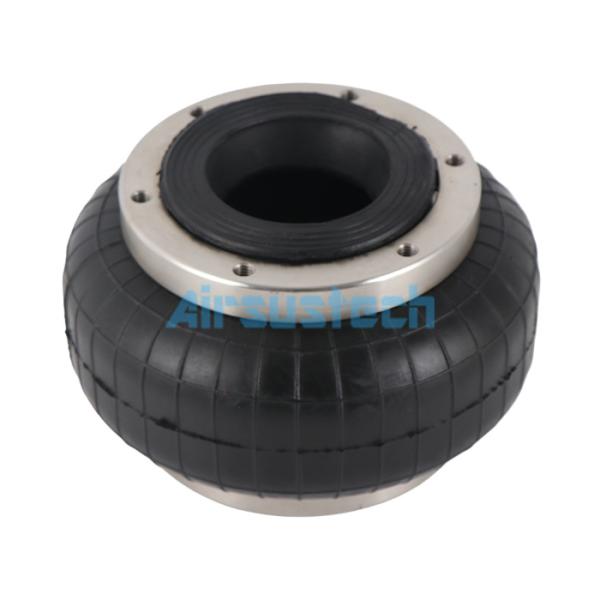

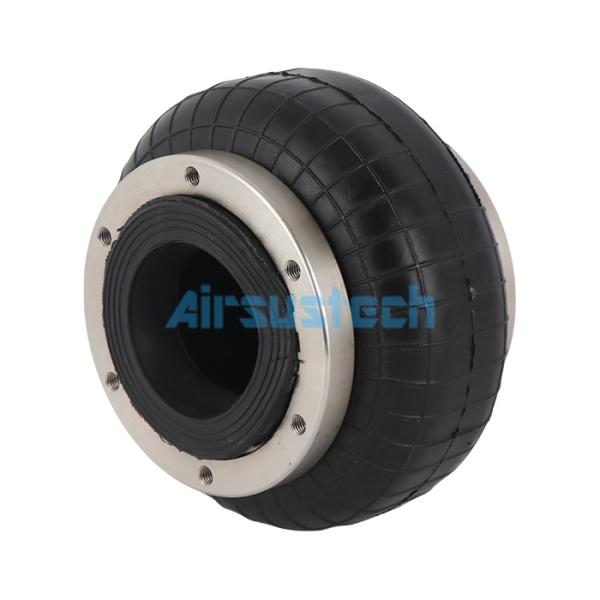

The Deatiled Photos

Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded HoleTorpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole

Factory Workshop
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
Torpress 110 Flange Ring Air Spring Pirelli Torpress 89023 with M8 Threaded Hole
