Specifications
Quality Assurance :
12 Months
Quality :
100% Inspected
Condition :
Brand New
Stroke :
90 MM
Brand Name :
AIRSUSTECH
Model Number :
1B8X4
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Part Number :
1B8X4
Material :
Steel and Rubber
Oria :
M-30-E
Air Connection :
1/4 NPTF
Description
Suspension Air Spring AIRSUSTECH 1B8X4 Air Actuator 1/4'' Air Inlet Air Bag Supplier
Direct OEM Replacement For
  • Replace Firestone W01-358-7564
  • Replace Firestone W01 358 7564
  • Replace Firestone W013587564
  • Replace Firestone WO1-358-7564
  • Replace Firestone WO1 358 7564
  • Replace Firestone WO13587564
  • Replace Contitech FS 120-10 CI
  • Replace Contitech FS 120 10 CI
  • Replace Contitech FS 12010 CI
  • Replace Contitech 62828
  • Replace Contitech 75229
  • Replace Contitech 75248
  • Replace Goodyear 1B8-550
  • Replace Goodyear 1B8550
  • Replace Goodyear 1B8 550
  • Replace Goodyear Bellows No. 579-913-530
  • Replace Goodyear Bellows No. 579913530
  • Replace Goodyear Bellows No. 579 913 530
1B8X4 Cross Oria M-30-E Specification
Cover Plate O.D.: 135 mm
C-to-C Center Distance: 70 mm
Compressed Height: 50 mm
Max. Usable Height: 140 mm
Gas Filled: 1/4 NPTF
Threaded Hole: 2X3/8-16 UNC
Maximum Width: 230 mm
Key Advantages of AIRSUSTECH 1B8X4 Air Spring
  • Excellent and Stable Shock Absorption: 1B8X4 industrial air spring offers consistent, high-performance damping that effectively isolates vibrations and manages dynamic loads.
  • Precise Height Control: 1B8X4 air bag maintains accurate ride or operational height, adjustable according to load or specific requirements.
  • Wide Range of Sizes: Available in multiple configurations to fit diverse installation spaces and performance needs.
  • Extended Equipment Life: By absorbing shock and minimizing vibration transfer, 1B8X4 suspension air spring protects machinery and structures from wear, reducing maintenance and downtime.
  • Effective Noise Reduction: Their operation significantly lowers transmitted noise, contributing to a quieter working environment.
Customer Feedback

We will strive for excellent customer service on every order. Once you have received your product and you are satisfied with it, please leave positive feedback and we will do the same within minutes. Please do not leave Neutral or Negative without contacting us first. We will do our best to fix the problem.

1B8X4 Product Images
Suspension Air Spring AIRSUSTECH 1B8X4 Air Actuator 1/4'' Air Inlet Air Bag Supplier

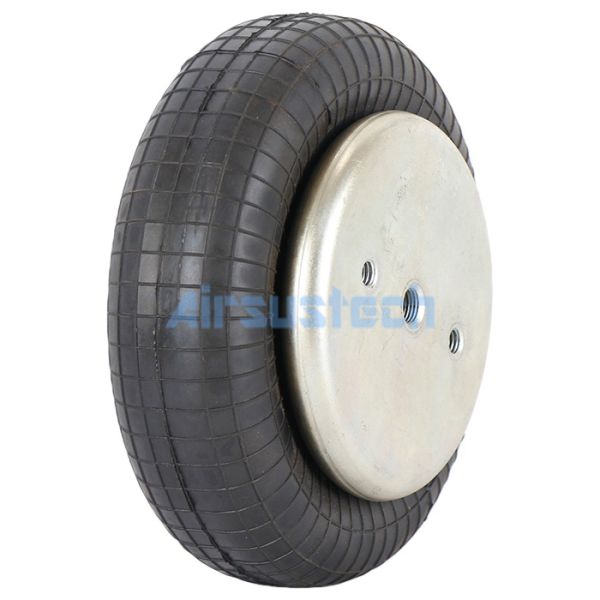

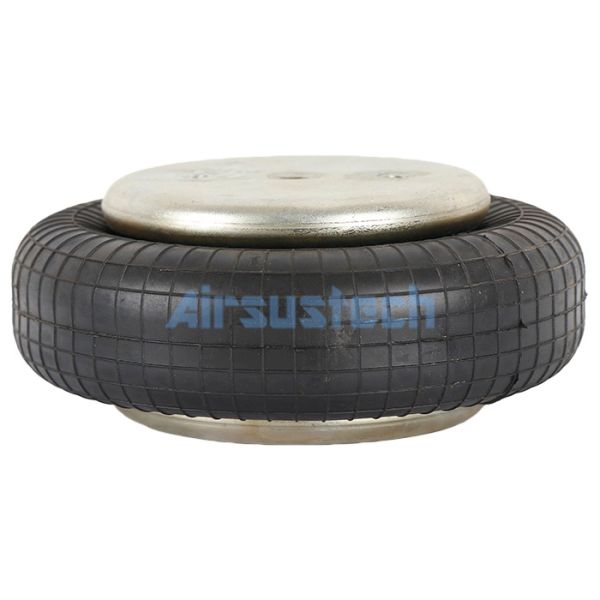

Detailed view of AIRSUSTECH 1B8X4 Air Spring
Suspension Air Spring AIRSUSTECH 1B8X4 Air Actuator 1/4'' Air Inlet Air Bag Supplier

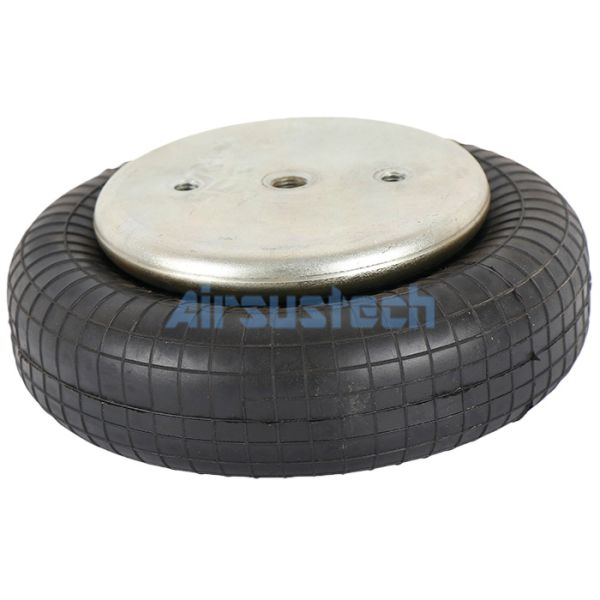

Close-up view showing air inlet and mounting details
Suspension Air Spring AIRSUSTECH 1B8X4 Air Actuator 1/4'' Air Inlet Air Bag Supplier
Quality control: technicians measuring air spring dimensions
Suspension Air Spring AIRSUSTECH 1B8X4 Air Actuator 1/4'' Air Inlet Air Bag Supplier
Advanced production equipment for manufacturing
