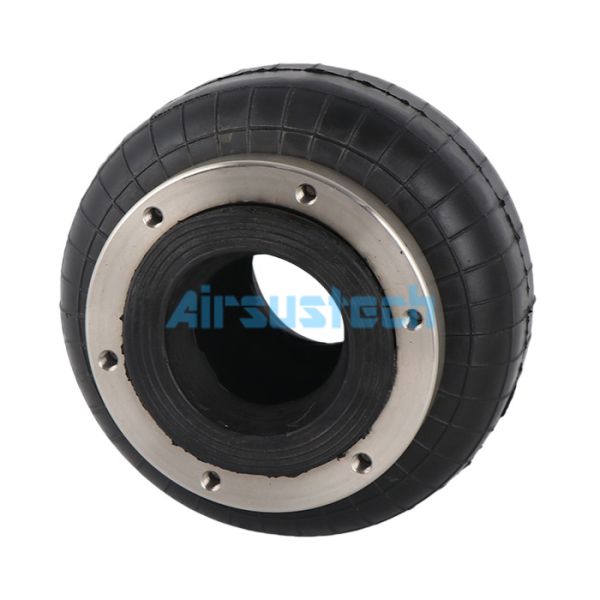

Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Specifications
Center Distance Diameter :
118 MM
Number of Ply Bellows :
1
Function :
Reduce Shock
Fitment Type :
Direct Replacement
Flange Type :
Aluminum Alloy
Sample :
Available
Brand Name :
AIRSUSTECH
Model Number :
1H5081
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Mounting Thread :
6×M8
OEM Number :
Model 110
Description
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Product Specifications
AIRSUSTECH 1H5081 GART 275.1.121
Threaded Hole: 6×M8
Center-to-Center Distance: 118 mm
Flange Ring O.D.: 135 mm
Inner Diameter of Flange: 80 mm
Natural Diameter: 188 mm
Static Height: 117 mm		 Mounting Hole: 6×M8
C to C Distance: 118 mm
Flange Ring Diameter: 136 mm
The Length of Threaded Hole: 13 mm
1H5081 Cross OEM Numbers
Model 110 Model 93113 93114 Model 88540 93079 Model 88820 89023 Gart 275.1.121 T275
CF gomma 88540 Blacktech 1C 181-120 F01 BARTOLETTI 91621110 ZORZI 1006508
Air Springs Applications in Agriculture

AIRSUSTECH Industrial Rubber Air Springs have indeed found wide application in modern agriculture, primarily utilizing their adjustable cushioning and support properties:

  • Agricultural Machinery Seat Suspension: Used in driver seats for high-performance tractors and harvesters, air springs effectively reduce bumps during long-distance operations, significantly improving driving comfort.
  • Agricultural Machinery Suspension Systems: In the suspension systems of heavy agricultural machinery such as combine harvesters and large tractors, air bags are a core component. By adjusting air pressure, they adapt to different terrains and operating loads, effectively protecting the machinery and ensuring stable operation.
  • Specialized Trailers and Equipment: On agricultural trailers, seeders, fertilizer applicators, and other equipment, rubber suspension air actuators are used to balance the load, maintain uniform tillage depth, and prevent excessive soil compaction.
We Have Other Rubber Air Bellows
Model Standard Code High-temp Code Maximum OD (mm) Minimum Height (mm) Maximum Height (mm) Design Height (mm)
16 93029 93086 153 46 91 70
131 94047 - 165 50 110 85
110 93113 93114 210 51 151 101
88540 93079 210 45 145 95
88820 89023 210 45 145 95
116 93027 - 231 46 152 100
19 94016 95015 325 51 151 127
94014 - 325 43 143 127
23B 202665 - 165 65 205 150
26 84181 89422 220 85 245 165
20 86600 88538 255 80 265 170
245 93740 202344 270 85 310 185
22 94091 - 325 88 288 183
88544 89425 325 80 280 175
21 BR 89457 - 380 80 290 180
21 A BR 97300 - 435 85 315 190
21B BR 92154 - 440 85 385 200
28 BR 92527 445 80 310 185
29 93056 - 570 90 330 195
31 93166 - 570 80 320 185
95210 - 700 85 700 300
325 203332 - 400 80 500 250
322 92615 310 133 408 265 450
89413 - 310 125 400 257
321 88110 - 380 125 400 257
1H5081 Single Convolution Air Bag Real Pictures
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Technicians Measure the Dimensions of AIRSUSTECH Air Springs
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
Advanced Production Equipment
Gart 275.1.121 T275 Industrial Bellows Air Spring 88540 93079 Pneumatic Air Actuator
