G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Design Height :
160 MM
Warranty :
One Year
Color :
Black
Festo :
EB-165-125
Mounting Hole :
2XM8
Structure :
Double Convolutions
Material :
Steel and Rubber
Maintenance :
Low
Description

G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag

AIRSUSTECH 2B7070 Characteristics

  1. This double convolution air suspension unit is constructed from premium natural rubber and incorporates sturdy steel mounting plates. It maintains a static height of 160 mm and achieves a maximum outer diameter of 165 mm.
  2. For the specific model AIRSUSTECH NO. 2B7070, the mounting plate diameter is 107 mm, with a precise center-to-center distance of 44.5 mm.
  3. Operating on the principle of pneumatic pressurization, this industrial air spring is equipped with a standard G1/4 air port and features mounting holes sized at 2×M8.

2B7070 Refer Numbers

Contitech 2682015000 Contitech Bellows No. 60513
Contitech FD 70-13 Contitech FD 70 13
Contitech FD 7013 Festo 36494
Festo EB-165-125 Festo EB 165 125
Festo EB165125 Oria M-70
Oria M 70 Oria M70

Functions and Applications of Industrial Air Springs in Wood Peeling Machinery


1. Vibration Damping and Machinery Protection
As wood passes through the blade or peeling section, the pneumatic actuator is inflated via the air system, generating substantial supporting force. During the debarking process, these air bags effectively absorb the shocks produced by the cutting action. This significantly reduces wear on the equipment and extends the service life of blades and other critical mechanical components.

2. Delivering Consistent Cutting Force
The flexible nature of the air suspension spring allows them to maintain a uniform cutting pressure when processing wood of varying diameters and hardness levels. This ensures precision and consistency throughout the peeling operation, making the system highly efficient for both large logs and smaller wood pieces.

3. Enhanced Operational Productivity
Air spring enable quick adjustments through pneumatic control, removing the need for complex mechanical setups. This responsive and high-efficiency regulation considerably boosts the equipment's production output while simultaneously lowering energy consumption during operation.

AIRSUSTECH Double Convoluted Air Spring OEM Chart

AIRSUSTECH CONTITECH AIRSUSTECH CONTITECH
2B6926 FD 200-19 504 / 61299 2B6910 FD 200-19 / 2682 045000
2B6884 FD 200-19 724 2B6890 FD 200-19 539
2B6897 FD 200-19 505 / 161300 2B6900 FD 200-19 319 / 161017
2B6902 FD 200-19 310 2B6905 FD 200-19 315
2B6908 FD 200-19 362 / 161294 2B6910 FD 200-19 320
2B6926 FD 200-19 504 / 161299 2B6932 FD 200-19 452
2B6935 FD 200-19 499 2B6940 FD 200-19 450 / 161296
2B6941 FD 200-19 448 / 161295 2B6949 FD 200-19 506 / 161301
2B7788 FD 200-19 510 2B7795 FD 200-22 524
2B7894 FD 200-19 P04 1/4 M10 2B6905 FD 200-19 315
2B12020 FD 120-20 2B7325 FD 120-20 509
2B7326 FD 120-20 509 2B6951 FD 200-25
2B6945 FD 200-25 427 2B6944 FD 220-25 454 / 161337
2B20025 FD 200-25 2B6891 FD200-19
2B6927 FD 200-25 453 / 161336 2B6943 FD 200-25 426 / 161332
2B6945 FD 200-25 427 2B6946 FD 200-25 463 / 161338
2B6948 FD 200-25 429 / 161335 2B6960 FD 200-25 507 / 161339
2B6962 FD 200-25 511 / 161340 2B20025 FD 200-25 717
2B6330 FD 330-22 363 2B7181 FD 330-22 472
2B7183 FD 330-22 471 2B7344 FD 330-22 500
2B7400 FD 330-22 313 2B7401 FD 330-22 337
2B7403 FD 330-22 318 2B7404 FD 330-22 346
2B7405 FD 330-22 364 2B7406 FD 330-22 365
2B7408 FD 330-22 366 2B7409 FD 330-22 367
2B7410 FD 330-22 331 2B7423 FD 330-22 368
2B7424 FD 330-22 327 2B7429 FD 330-22 343
2B7437 FD 330-22 334 2B7180 FD 330-22 363
2B7136 FD 530-22 321 2B7472 FD 330-30-371
2B7545 FD 331-26 514 2B7550 FD 331-26 541
2B7555 FD 331-26 480 2B7781 FD 530-35 545
2B6779 FD 530-35 543 2B7557 FD 530-35 530
2B7781 FD 530-35 545 2B53035 FD 530-35 720
2B7325 FD 120-17 509 2B7070 FD 70-13
2B12017 FD 120-17 2B6883 FD 200-22 510
2B6886 FD 200-22 706

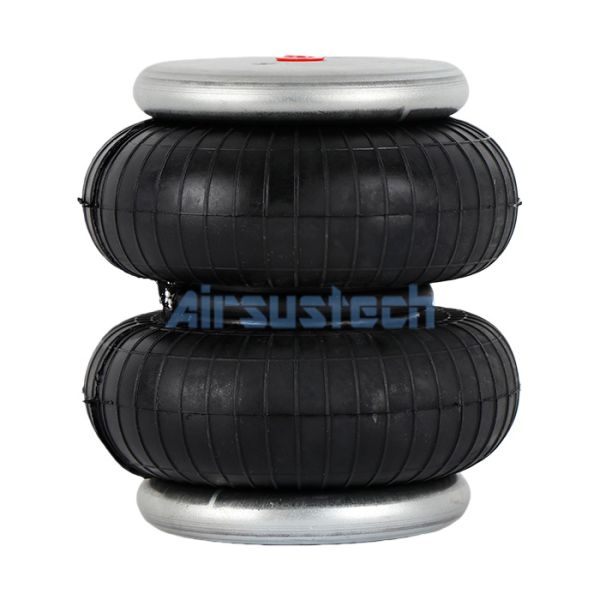

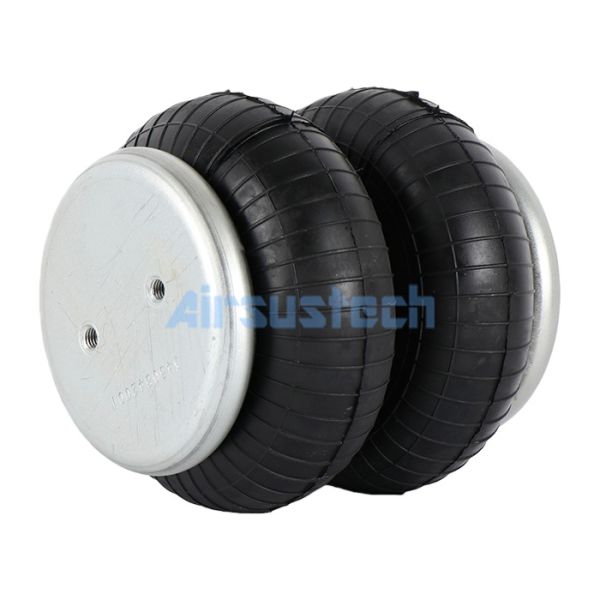

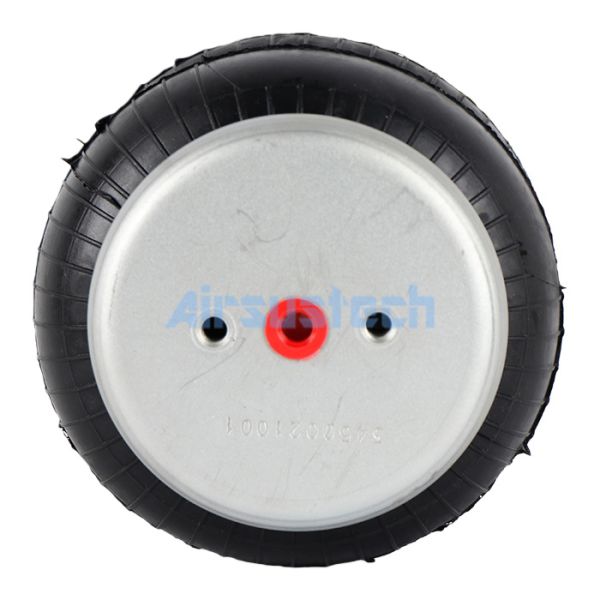

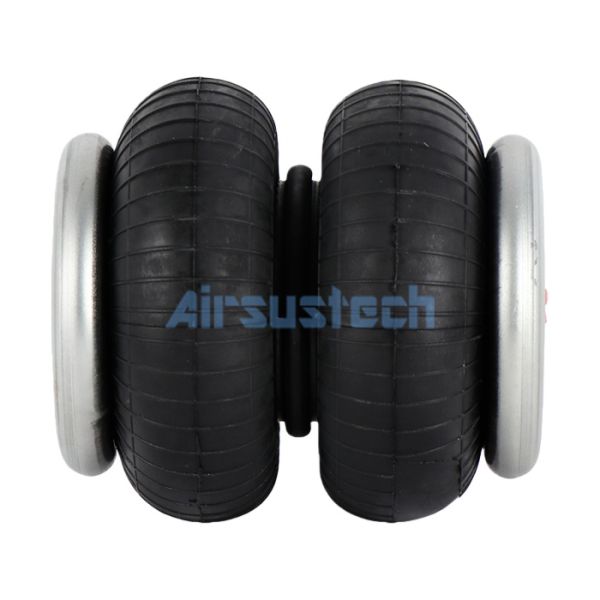

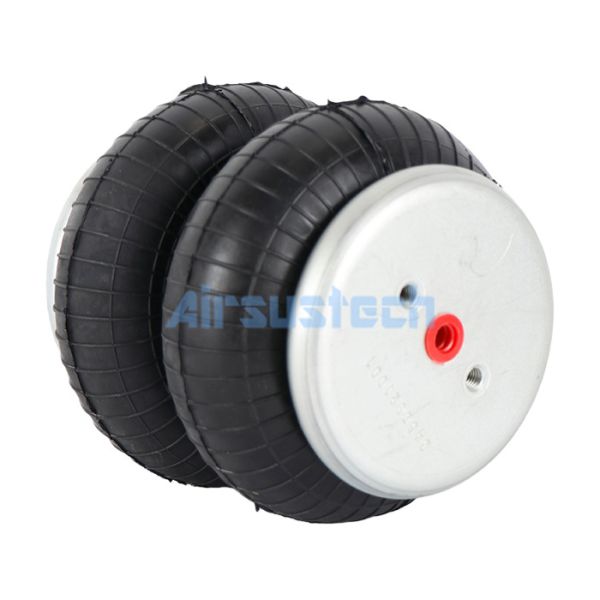

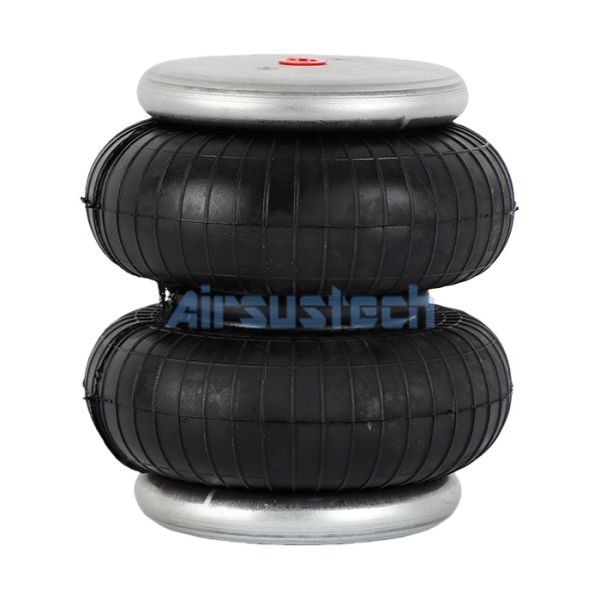

The Real Pictures of AIRSUSTECH 2B7070 Air Spring

G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air BagG1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag

Advanced Production Equipment

G1/4 Contitech FD 70-13 Industrial Bellows Air Spring 2682015000 Continental Air Bag
