Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B5330
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Steel and Rubber
Color :
Black
Warranty :
1 Year
Applications :
Industrial Machines Or Others
Model No. :
Orial M-40
Maintenance :
Low
Advantages :
Serviceable
Temperature Rating :
-40℃+70℃
Description

Orial M-40 Single Convoluted Air Bellows FS 330-11 Continental Air Shock Spring

Cross References

Orial M-40

Contitech FS 330-11

Contitech Bellows No. 72539

Contitech 60424 with G1/4 air inlet

Contitech 62743 with G3/4 air inlet

Contitech 2681060000 with G1 air inlet

Contitech 69583 with stainless steel crimped plates, G3/4 air inlet

Contitech FS 330-11 474

Firestone W01-358-7008

Firestone W01 358 7008

Firestone W013587008
Goodyear 1B12-300 / 1B12-313
Triangle 6374 4474
Holland (Neway) 90557226

1B5330 Cross Oria M-40 Technical Data

Gas Hole / Air Inlet / Air Fitting / Port Size
Pneumatic Connection 1/4 NPTF
Cover Plate
Top Cover Plate Diameter 231 mm
Screw Center Distance of Top Cover Plate 73 mm
Bottom Cover Plate Diameter 231 mm
Screw Center Distance of Bottom Cover Plate 73 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth 2X3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth 2X3/8-16 UNC
Rubber Bellow
Min. Usable Height 55 mm
Max. Usable Height 160 mm
Max. Outer Diameter 325 mm


AIRSUSTECH Air Springs in Wood Processing Machinery

Air springs (also referred to as rubber actuators or air bellows) are crucial pneumatic components in wood piling and debarking machinery. They primarily function as efficient shock absorbers and actuators, significantly enhancing the machines' performance, durability, and operational efficiency.

1. Shock Absorption & Equipment Protection

Inflates to create a support force, absorbing intense vibrations and shocks generated when blades contact wood. This reduces wear on blades and mechanical parts, extending the overall equipment lifespan.

2. Providing Stable Cutting Force

The flexible bellows maintain consistent and even pressure on the cutting blade. This ensures precision and consistency in the peeling process, effectively handling wood of varying sizes and hardness levels.

3. Improved Operational Efficiency

Allows for rapid adjustments via the pneumatic system, eliminating the need for complex mechanical setups. This responsiveness increases production rates and can lower energy consumption during operation.

4. Environmental Adaptability

Designed to withstand harsh conditions typical in wood processing, including high humidity, wood dust, and temperature fluctuations. Their durable, corrosion-resistant construction ensures reliable performance.

5. Actuation and Material Handling

Used as actuators to tilt wood pieces after processing, allowing water and debris to fall away. This improves the final product quality and protects downstream equipment.

We Have Contitech Other Type Air Bags

FS 40-6 CI FD 40-10 CI FT 330-29 CI
FS 50-5 CI FD 70-13 CI FT 430-32 CI
FS 70-7 CI FD 110-15 CI FT 530-32 CI
FS 100-10 CI FD 120-17 CI FT 530-35 CI
FS 120-10 CI FD 120-20 CI FT 960-34 CI
FS 120-12 CI FD 200-19 CI FT 1330-35 CI
FS 200-10 CI FD 200-22 CI
FS 310-12 CI FD 200-25 CI
FS 330-11 CI FD 330-22 CI
FS 330-14 CI FD 330-30 CI
FS 530-11 CI FD 530-22 CI
FS 530-14 CI FD 530-35 CI
FS 960-12 CI FD 960-22 CI
FS 1330-11 CI FD 1330-25 CI

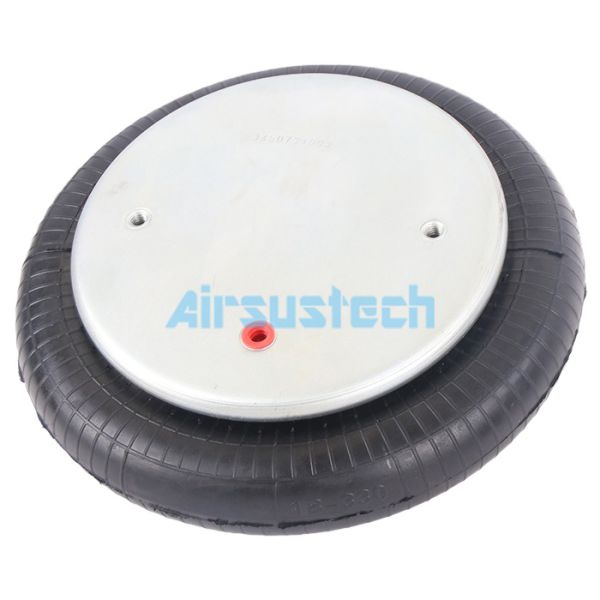

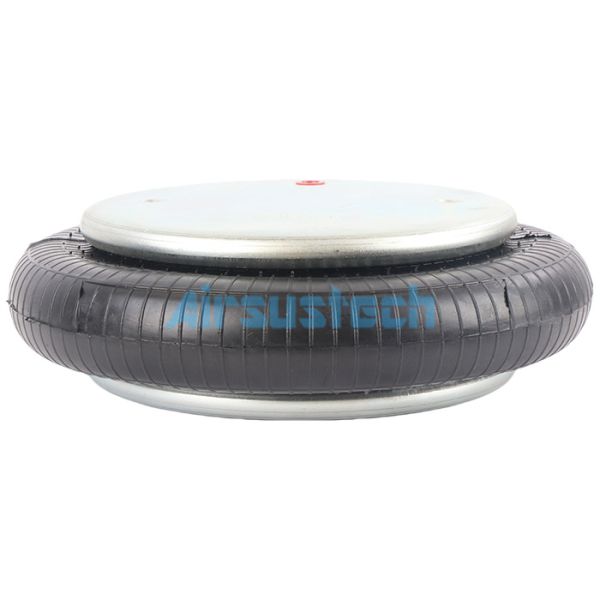

AIRSUSTECH 1B5330 Industrial Air Spring Pictures

Orial M-40 Single Convoluted Air Bellows FS 330-11 Continental Air Shock SpringOrial M-40 Single Convoluted Air Bellows FS 330-11 Continental Air Shock Spring

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Orial M-40 Single Convoluted Air Bellows FS 330-11 Continental Air Shock Spring

Advanced Production Equipment

Orial M-40 Single Convoluted Air Bellows FS 330-11 Continental Air Shock Spring
