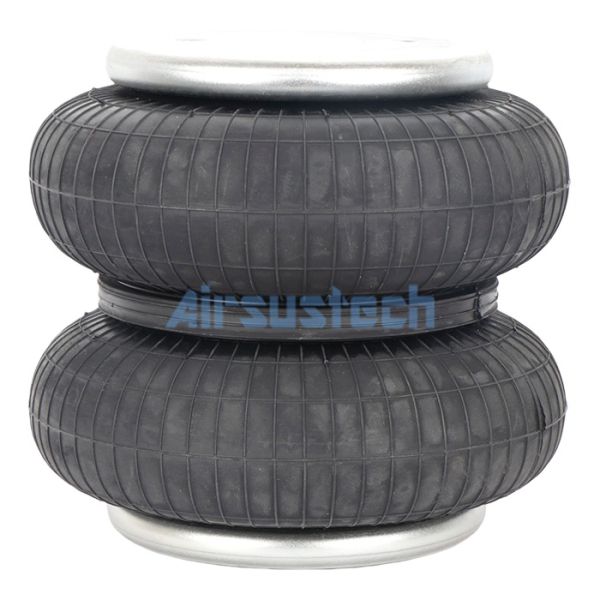

M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows

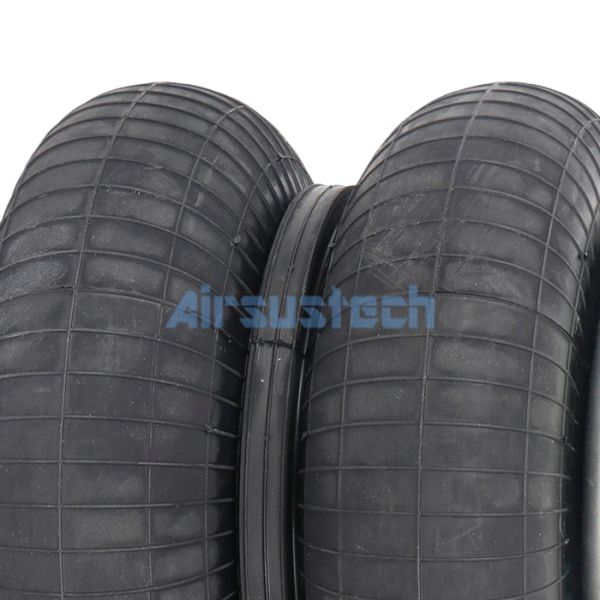

M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Max. Diameter :
251 MM
Color :
Black
Sample :
Available
Temperature :
-40℃+70℃
Contitech :
FD 200-19 320
Durability :
High Quality
Advantage :
Excellent Material
Condition :
Brand-new
Description
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
AIRSUSTECH 2B6910 Reference Numbers
Manufacturer Part Numbers
Oria M-85-E, M 85 E, M85E
Firestone WO1-358-6910, WO1 358 6910, WO13586910
W01-358-6910, W01 358 6910, W013586910
Contitech FD 200-19 320, FD 200 19 320, FD 20019 320
Goodyear 2B9-200, 2B9 200, 2B9200, 2B9-202, 2B9 202, 2B9202, 2B9-216, 2B9 216, 2B9216
Goodyear Flex No. 578423202, 578 42 3 202, 578-42-3-202
Triangle 6325 4320
Taurus KF218-6910
Other OEM No. Brake & Wheel M3501, Dina A812719/AZ812719, Dayton 3546910, Leland Sc2011, Navistar 554783C1, Hendrickson S8768/458433, Ridewell 1003586910C, SAF Holland 57006910, Trailers De 133128, Tuthill 1371, Watson & Chalin AS-0001/AS-0156G
AIRSUSTECH 2B6910 Technical Data
Diameter of the Top Plate 160 mm
Center-to-Center Distance of Hole on the Top Cover Plate 89 mm
Diameter of the Bottom Cover Plate 160 mm
Center-to-Center Distance of Hole on the Bottom Cover Plate 89 mm
Mounting Hole for the Top Cover Plate 2X3/8-16UNC
Mounting Hole for the Bottom Cover Plate 2X3/8-16UNC
Pneumatic Connection 1/4NPTF
Max. External Diameter of the Rubber Bellow 251 mm
Natural Width of Rubber Bellow 224 mm
Min. Usable Height 75 mm
Max. Extended Height 260 mm
AIRSUSTECH Industrial Air Spring in Industrial Washing Machines
  • Industrial air springs can be also used in laundries. Big industrial washing machines are often working with strong vibrations and shocks. In addition, noise could also be an issue for the operators that are in charge of starting up and turning off the equipment.
  • AIRSUSTECH industrial bellows air bag is an elastomer that could be an excellent problem solver for these cases, as it can reduce up to a 99% of the vibrations coming from the washing machine. Moreover, noises will be also reduced as well as the vibrations transmitted to the floor, without affecting the operators. Machine components are protected due to the high performance convoluted air spring, increasing the life cycle of the machinery.
  • When the suspension air actuators located in the front of the machine are contracted, while the others located in the back are expanded, we can bend the washing machine forwards enabling to take out the cleaned wear easily, helping the personnel to have a better access to the inside of the machine. Consequently, the process is more efficient and the operator has a more ergonomic position to gather all the clothes from inside the washing machine.
Firestone Style 274 Air Bellows Cross References
Configuration Part Numbers
Blind nuts, 1/4 NPT W01-358-6910 / W01 358 6910 / W013586910
WO1-358-6910 / WO1 358 6910 / WO13586910
Blind nuts, 1/4 NPT, bumper W01-358-6911 / W01 358 6911 / W013586911
WO1-358-6911 / WO1 358 6911 / WO13586911
Blind nuts, 3/4 NPT W01-358-6900 / W01 358 6900 / W013586900
WO1-358-6900 / WO1 358 6900 / WO13586900
Blind nuts, 3/4 NPT, bumper W01-358-6901 / W01 358 6901 / W013586901
WO1-358-6901 / WO1 358 6901 / WO13586901
Countersunk steel bead rings, 13/4 bolts, nuts, washers W01-358-6923 / W01 358 6923 / W013586923
WO1-358-6923 / WO1 358 6923 / WO13586923
Rubber bellows only W01-358-0138 / W01 358 0138 / W013580138
WO1-358-0138 / WO1 358 0138 / WO13580138
The Related Images of AIRSUSTECH 2B6910 Air Actuator
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
Technicians Measure the Dimensions of AIRSUSTECH Air Springs
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
Advanced Production Equipment
M-85-E Oria Convoluted Air Spring 1/4NPTF Port Size Firestone W013586910 Air Bellows
