Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B6X1P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Aluminum Plate and Rubber
Maximum Stroke :
55 MM
Cover Plate Width :
152 MM
Firestone :
W01-R58-4078
Port Size :
G1/2
Color :
Black
Quality :
100% Inspected
Compatibility :
Easy to Replace
Description
M8 Hole Air Bellows Suspension Oria 6''X1 Pneumatic Air Spring Parker 9109004A
Product Overview

M8 Hole Air Bellows Suspension Oria 6''X1 Pneumatic Air Spring Parker 9109004A

AIRSUSTECH Air Spring Introduction

AIRSUSTECH air springs deliver smooth, frictionless operation and require no maintenance or lubrication, ensuring reliable performance with minimal downtime. Their design makes them ideal for applications requiring short-stroke, high-force actuation, while providing excellent vibration isolation in demanding environments. Simple and quick to install, these air springs integrate easily into existing systems, offering a practical and efficient solution for a wide range of industrial needs.

1B6X1P Technical Specifications
H [Min.]55 mm
H [Max.]110 mm
Stroke [Max.]55 mm
Plate Width152 mm
Maximum Outer Diameter170 mm
Air FittingG1/2
Mounting Hole4XM8
Design Height155 mm
Static Height85 mm
Cross-Reference OEM Numbers
Manufacturer Original Part No.
Oria6''X1
FirestoneW01-R58-4078
Dunlop Pneuride6''X1
Dunlop SpringrideSP2913
ContitechFS 76-7 DI
NorgrenPM/31061
Parker9109004A
Key Advantages of AIRSUSTECH Air Springs
  • Air spring shock absorbers provide distinct performance benefits compared to traditional mechanical springs, making them a versatile solution for industries requiring precision, durability, and comfort.
  • These components deliver excellent and consistent shock absorption, effectively isolating vibrations and managing dynamic loads. Their design allows for precise control over the operating height, which can be adjusted to suit specific load or alignment requirements. Available in a wide range of sizes, they can be integrated into diverse system layouts and space constraints.
  • By significantly reducing the transmission of shock and vibration, air spring shock absorbers help extend the operational life of machinery and vehicles while effectively lowering noise levels for a quieter working environment. Their combination of reliability, adaptability, and protective performance has led to widespread use in sectors such as transportation, industrial automation, and precision manufacturing.
Industrial Rubber Air Spring Specifications
Type Plate Diameter (mm) Max. Diameter (mm) Min. Height (mm) Max. Height (mm) Total Stroke (mm) Static Height (mm) Center Distance (mm) Space Installation (mm)
6X115316845904580127180
8X1184230471207390156240
10X1210280501358595181295
12X1260330501459595232345
14 1/2X131039547165118105283410
6X21531687317097120127180
8X218423072225153150156240
10X221028070240170160181295
12X226033074240166160232345
14 1/2X231039570280210180283410
16X231043077320243180283445
6X3153168105255150180127180
8X3184215100350250230156240
10X3210280100365265235181295
12X3260330100430330222232345
14 1/2X3310395100476376280283410
16X3310430125500375280283445
Product Images
M8 Hole Air Bellows Suspension Oria 6''X1 Pneumatic Air Spring Parker 9109004A

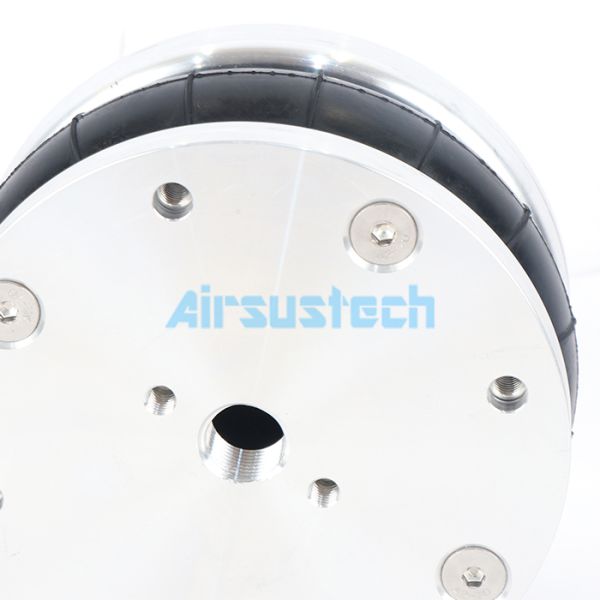

AIRSUSTECH 1B6X1P Air Bellows Spring
M8 Hole Air Bellows Suspension Oria 6''X1 Pneumatic Air Spring Parker 9109004A

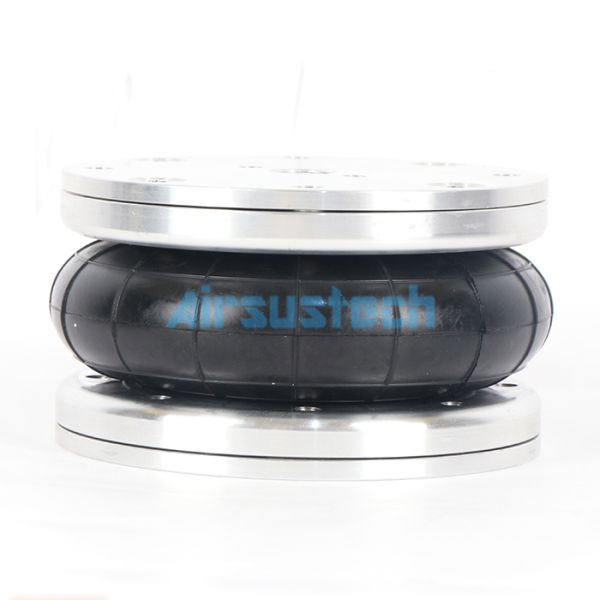

AIRSUSTECH 1B6X1P Air Bellows Spring
M8 Hole Air Bellows Suspension Oria 6''X1 Pneumatic Air Spring Parker 9109004A
Technicians Measure the Dimensions of AIRSUSTECH Air Springs
M8 Hole Air Bellows Suspension Oria 6''X1 Pneumatic Air Spring Parker 9109004A
Advanced Production Equipment
