Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B5330
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Part Number :
1B5330
Stroke :
105 MM
Color :
Black
Max. O.D. :
325 MM
Application :
For Industrial Machines
Warranty :
One Year
Purpose :
Reduce Shock
Description

W013587008 Firestone Style 19 Air Spring Actuator 1B12-313 Goodyear Air Bag


The Specification of AIRSUSTECH 1B5330

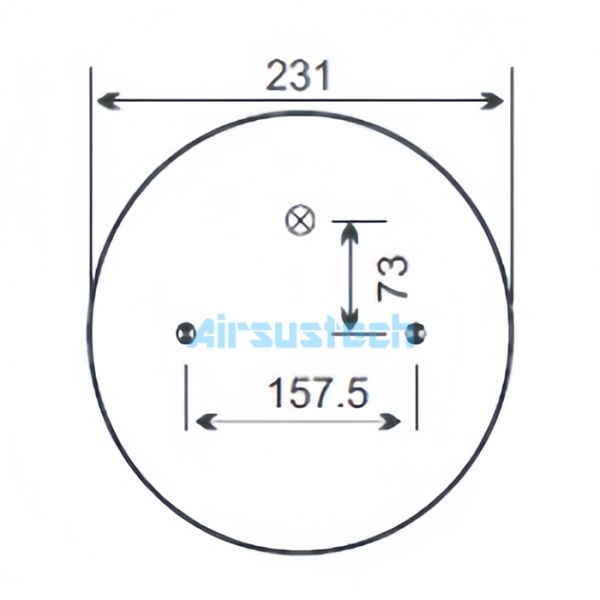

Cover Plate O.D.: 231 MM
Center Distance of Cover Plate: 157.5 mm
The Distance Diameter Between Gas Hole and Hole: 73 mm

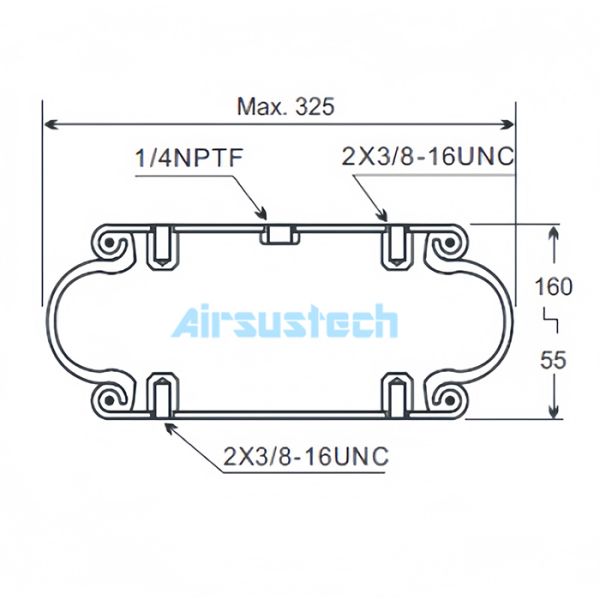

Minimum Usable Height: 55 mm
Maximum Usable Height: 160 mm
Pneumatic Connection: 1/4NPTF
Threaded Hole: 2×3/8-16UNC
Max. Diameter: 325 mm



The Technical Datas of Firestone W01-358-7008

Cover Plate Diameter: 9 inches
Maximum Outer Diameter: 12.9 inches
Min. Height: 2 inches
Max. Height: 6 inches
Center Distance Diameter: 6.20 inches
The Distance of Air Inlet and Hole: 2.88 inches
Gas Hole: 1/4 NPT
Threaded Hole: 2×3/8-16UNC



Direct OEM Replacement For

Fits Firestone W01-358-7008
Fits Firestone W013587008
Fits Firestone W01 358 7008
Fits Firestone WO1-358-7008
Fits Firestone WO13587008
Fits Firestone WO1 358 7008
Fits Contitech FS 330-11 474
Fits Contitech FS 33011 474
Fits Contitech FS 330 11 474
Fits Goodyear 1B12-300/1B12-313
Fits Goodyear 1B12300/1B12313
Fits Goodyear 1B12 300/1B12 313
Fits Triangle 6374 4474
Fits Holland (Neway) 90557226


Air Springs Are Integrated into a Wide Range of Material Handling Equipment

  1. Conveyor Systems: They minimize vibrations and shocks in conveyors, ensuring smooth material flow and reducing wear on components.
  2. Lifting Equipment: In scissor lifts and pallet lifters, air springs act as pneumatic actuators for smooth elevation, allowing workers to raise items to optimal heights safely.
  3. Dock Levelers: They enable height adjustment between docks and trucks, creating secure bridges for forklifts and preventing accidents during loading/unloading.
  4. Automated Handling Systems: Air springs provide vibration isolation in automated guided vehicles (AGVs) and robotics, ensuring precision in assembly or packaging tasks.


Other Convoluted Rubber Air Bags with 231 MM Cover Plate

AIRSUSTECH Number1B53301B70091B6994
Other Part Numbers

Firestone W01-358-7008
Contitech FS 330-11 474
Goodyear 1B12-300/313
Triangle 6374 4474
Holland (Neway) 90557226

Firestone W01-358-7009
Contitech FS 330-11 468
Goodyear 1B12-301
Goodyear 578913301
Triangle 6374/4468
SAF Holland 90557002/AR741
Ridewell 1003587009C
Firestone W01-358-6994
Firestone W01-358-6919
Contitech FS 330-11 647
Triangle 6374/4467

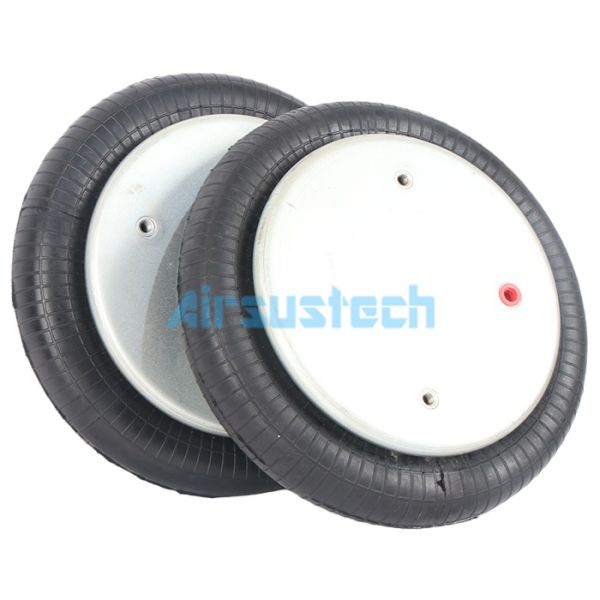

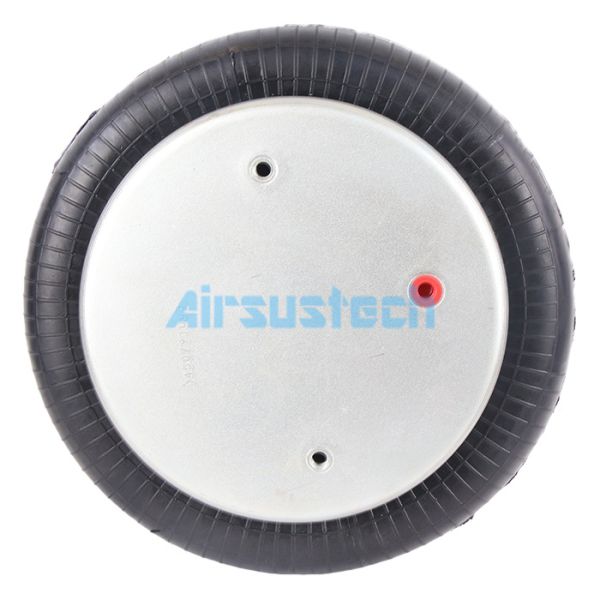

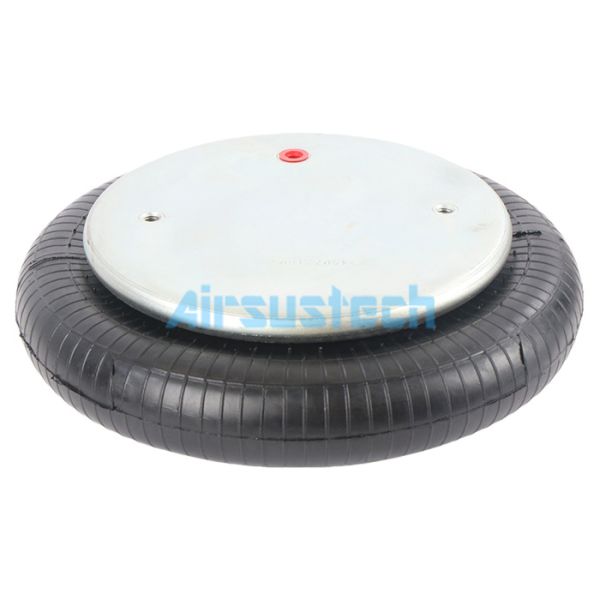

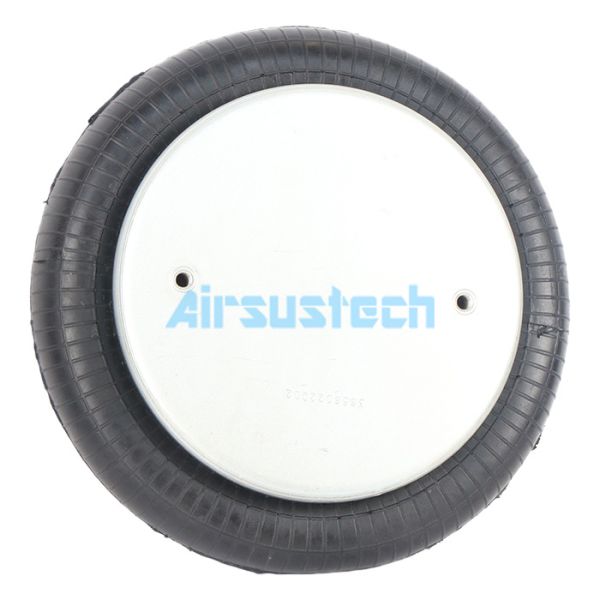

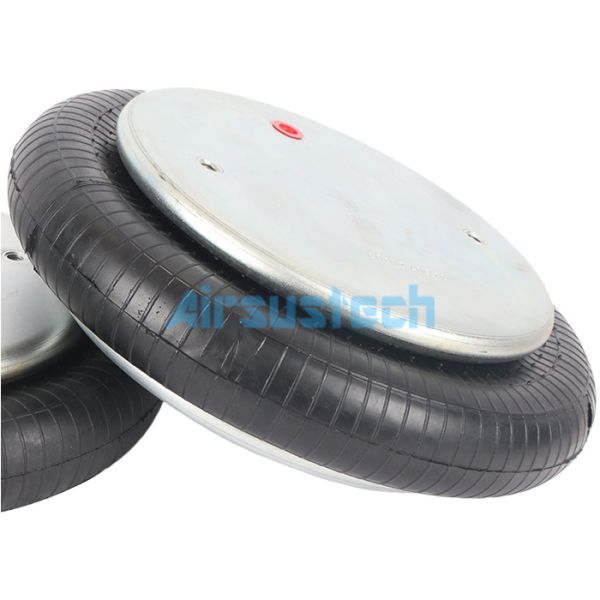

Industrial Style 1B5330 Cross Firestone W01-358-7008 Real Pictures
