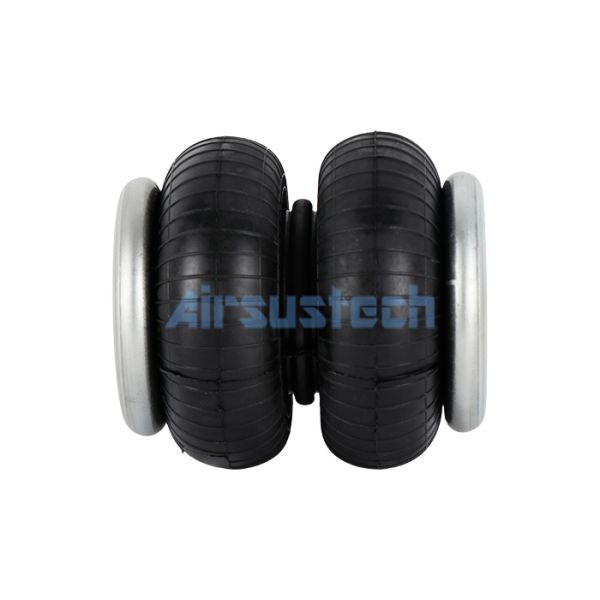

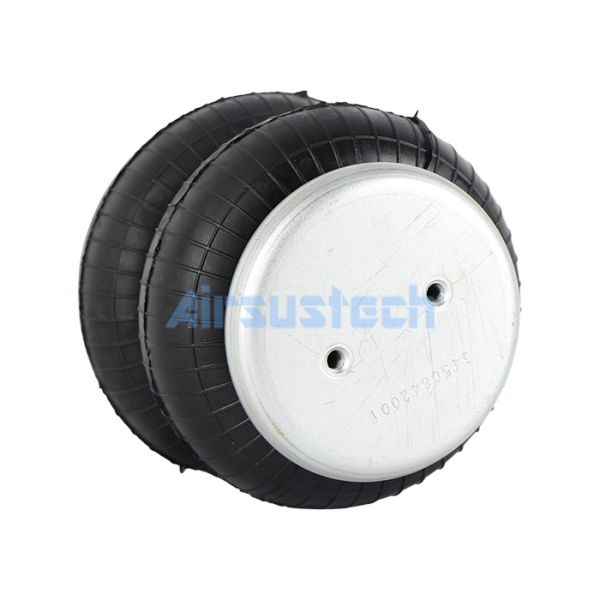

Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Min. Usable Height :
72 MM
Maximum Usable Height :
200 MM
Threaded Hole :
M8
Festo :
EB-165-125
Sample :
Available
Quality :
100% Tested
Description
Weight 2KG Convoluted Air Spring Contitech FD 70-13 G1/4 M8 Rubber Air Suspension
AIRSUSTECH 2B7070 Cross References
Supplier: Contitech
莎士比亚 אב Part Number: FD 70-13 / FD 7013 / FD 7013
Part Number: FD70-13 / FD7013 / FD7013
Supplier: Festo
Part Number: 36494
Supplier: Festo
Part Number: EB-165-125 / EB165125 / EB 165 125
The Specifications of AIRSUSTECH 2B7070
Bottom Plate
Alignment: Parallel
Center To Center Diameter: 44.5 mm
Diameter: 108 mm
Hole Quantity: 2×M8
Type: Steel
Top Plate
Alignment: Parallel
Center To Center Diameter: 44.5 mm
Diameter: 108 mm
Hole Quantity: 2×M8
Type: Steel
Expanded Height: 200 mm
Compressed Height: 72 mm
Spring Type: Double Convoluted
své Max Rubber Bellow Diameter: 165 mm
Air Connection: G1/4
Operation: Gas-filled
Comic Sans MS
2B7070 Air Spring Technical Parameters
Vibration isolation - dynamic characteristics values
Natural Frequency [Hz]
Pressure P [bar] 3 4 5 6 7 8 Vol. V[l] Force (Load) [kN] 1.9 2.5 3.2 3.8 4.5 5.2 1.8
Spring Rate [N/cm] 46 59.5 73 86 99.5 112.5 - 2.5 2.5 2.4 2.4 2.4 2.4 -
Pneumatic application - static characteristic values
țări 优选 2.3 160 τής <你为什么>6.4benzodiazepines 的性能 行政主管部门 王牌
Pressure p [bar] 3 4 5 6 7 8 Vol.[l] đường
Height H [mm]180 1.6 2.93.5 4.1 4.7 confers 1呦.8
2.4 3.153SerializeField 4.7 Universe 5.61.6
140 2.9 3.88 4.8 5.8 6.8 7.8 1.5
120 3.4 4.5 5.7 6.8 7.9 9.2 1.3
100 3.9 5.23 6.5 7.8 9.1 10.4 1.1
80 4.3 5.7 7.1 8.5 10 11.4 0.7
Industrial Air Springs: Enhancing Efficiency and Performance Across Applications

Industrial air springs serve as critical components in diverse equipment including paper-making machinery, vehicle detection systems, mechanical grippers, and shaking tables. These versatile elements significantly improve operational efficiency, safety standards, and equipment longevity through their multifunctional capabilities in damping, lifting, and support applications. By implementing air spring technology, businesses can achieve substantial manufacturing cost reductions while Haut overall economic performance.

Key Product Advantages: 联席会议
  • Economic Efficiency and User-Friendly Design
    • Cost-effective solution with broad application compatibility
    • Intuitive operation requiring minimal technical expertise
  • Durability and Low Maintenance
    • Extended service life under normal operating conditions
    • Elimination of regular maintenance and lubrication requirements
  • Superior Functional Performance
    • Flexible expansion and contraction capabilities
    • High load bearing capacity with streamlined structural design
  • Advanced Operational Features
    • Friction-free operation ensuring consistent performance
    • Soft medium characteristics for smooth motion control

These fundamental advantages establish industrial air springs as indispensable components in modern industrial equipment, providing reliable performance while optimizing operational economics. Their innovative design and functional characteristics contribute to sustainable operational improvements across various industrial sectors.
