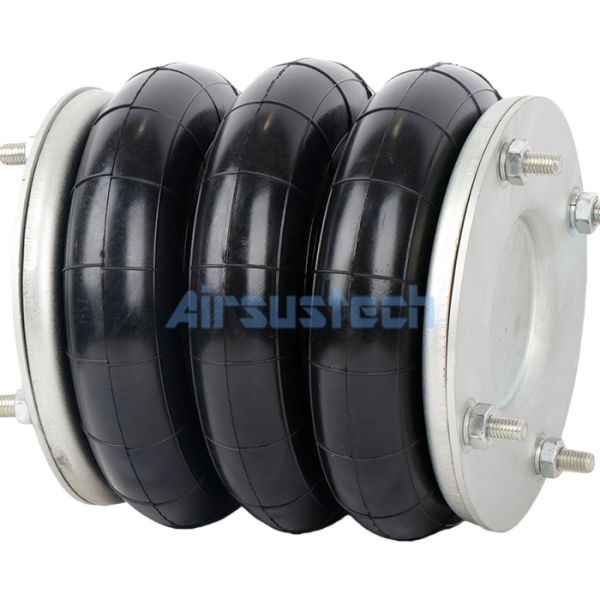

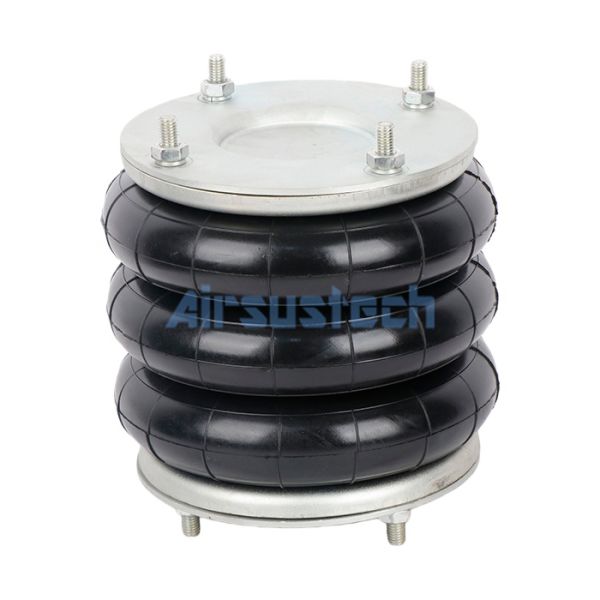

Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B8×3T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Stroke :
250 MM
Screws Type :
4×M10
Norgren :
M/31083
Material :
Rubber and Steel
Max Inflation Pressure :
8 Bar
After-sales Service :
1 Year
Description
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
The Description of AIRSUSTECH Air Spring

An air spring functions as a precision-engineered flexible container that utilizes compressed air to provide force and support. The rubber bellows acts as a containment system, while the pressurized air column within delivers the actual load-bearing capacity and damping characteristics. AIRSUSTECH air springs represent the pinnacle of bellow engineering, incorporating specially designed metal end caps for secure sealing and optimal performance.

The Information of 3B8 ×3T Air Bellows
Cover Plate
Top Cover Plate Diameter 184 mm
Screw Center Distance of Top Cover Plate 155.5 mm
Bottom Cover Plate Diameter 184 mm
Screw Center Distance of Bottom Cover Plate 155.5 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth 4×M10
Bottom Cover Plate Screw(Nut) Tooth 4×M10
Gas Hole/Air Inlet/Air Fitting
Port Size G1/2
Rubber Bellow
Rubber Bellow Max. Diameter 230 mm
Minimum Usable Height 100 mm
Maximum Usable Height 350 mm
Working Stroke 250 mm
Part Number Models
Dunlop Springride Air Bellows SP2863
Firestone Rubber Air Spring W01-R58-4056 Firestone Rubber Air Spring: W01R584056 Firestone Rubber Air Spring: W01 R58 4056 Firestone Rubber Air Spring: WO1-R58-4056 Firestone Rubber Air Spring: WO1R584056 Firestone Rubber Air Spring: WO1 R58 4056
Norgren Air Actuator M/31083 Norgren Air Actuator: M31083 Norgren Air Actuator: M 31083
Dunlop Pneuride Air Bag 8'×3 Dunlop Pneuride Air Bag: 8''×3 Dunlop Pneuride Air Bag: 8×3
Parker Air Spring Assembly 9109017
Contitech Air Rubber Bellows FT 138-26 DS Contitech Air Rubber Bellows: FT 13826 DS Contitech Air Rubber Bellows: FT 138 26 DS Contitech Air Rubber Bellows: FT138-26 DS Contitech Air Rubber Bellows: FT13826 DS Contitech Air Rubber Bellows: FT138 26 DS
The Applications of AIRSUSTECH 3B8 ×3T
  • Rotating Table With The Air Spring
  • Crushing Machine
  • Concrete Screening Machine
  • Carpet Extraction Machine
  • Commercial Laundry Machines
  • Coordinate Measuring Tables And Machinery
  • Centrifugal Separators
  • Large Drying Machines
  • Vibratory Conveyors
  • Electronic Equipment
  • Compressors
  • Conveyor Loading Points
  • Textile Looms
  • Rotary Shaft Actuators
Real Images
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Engineers Measuring Product Specifications
Convoluted Air Spring Assembly Dunlop Springride SP2863 for Pickling Tank Driver
Advanced Production Equipments
