Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B7451
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Max. Extended Height :
90 MM
Material :
Steel and Rubber
Compatibility :
Easy to Replace
Firestone :
W01-358-7451
Operating Pressure :
0 Bar ... 8Bar
Temperature Range :
-40℃+70℃
Description
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly

Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly

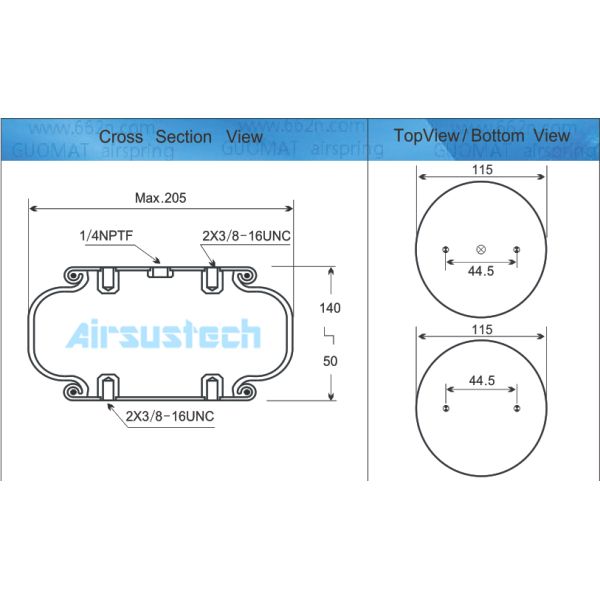

AIRSUSTECH 1B7451 Technical Data
Specification Value
Minimum usable height 50 mm
Maximum usable height 140 mm
Full stroke 90 mm
Air connection 1/4NPTF
Threaded hole 2×3/8-16UNC
The diameter of center distance 44.5 mm
The width of cover plate 115 mm
The max. diameter of rubber bellows 205 mm
Material rubber and steel
Air spring type single convolution
Firestone Style 110 Cross References
  • Blind nuts, 1/4 NPT
    W01-358-7451, W013587451, W01 358 7451
    WO1-358-7451, WO13587451, WO1 358 7451
  • Blind nuts, 3/4 NPT
    W01-358-7484, W013587484, W01 358 7484
    WO1-358-7484, WO13587484, WO1 358 7484
  • Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)
    W01-358-0112, W013580112, W01 358 0112
    WO1-358-0112, WO13580112, WO1 358 0112
  • Rubber bellows only
    W01-358-0100, W013580100, W01 358 0100
    WO1-358-0100, WO13580100, WO1 358 0100
Manufacturing Process of AIRSUSTECH Air Springs

The production involves sophisticated fabric-rubber integration where rubber compound penetrates fabric interstices during processing. This creates a strong bond between the rubber matrix and reinforcement fibers, achieved through precise calendering operations. Special three-roller machinery is typically employed to ensure dimensional stability and surface smoothness of the rubber-fabric composite.

Performance Advantages:
  • Lightweight construction with excellent comfort characteristics.
  • Superior fatigue resistance and extended service life.
  • Effective vibration damping and noise reduction capabilities.
  • Maintains stable dimensions under pressure variations.
AIRSUSTECH Air Bag Quality Considerations:

Proper manufacturing controls minimize rubber elasticity variations, ensuring consistent performance. The production methodology provides comprehensive protection to the air spring structure, significantly enhancing durability. These technical advantages make air springs ideal for precision applications in industrial machinery and instrumentation systems where reliable performance is critical.

The Related Photos of 1B7451
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Engineers Measuring Product Specifications
Stroke 90 MM Single Rubber Bellows for Firestone W01-358-7451 Air Spring Assembly
Advanced Production Equipment
