Specifications
Supplier :
AIRSUSTECH
Model Number :
2B12020
Natural Diameter :
193 MM
Port Size :
1/2-14NPT
Advantages :
Excellent Materials
Factory Warranty :
1 Yeear
Original No. :
Firestone Bellow 26C
Working Temperature :
-40℃+70℃
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Description
Black Double Convoluted Air Spring by Contitech FD 120-20 736 for Reduce Noise

The Black Double Convoluted Air Spring by Contitech FD 120-20 736 is designed for effective noise reduction and vibration isolation in industrial applications.

Detailed Specifications of 2B12020 Air Bag
  • The diameter of top plate: 135 mm
  • The center distance diameter of top plate: 70 mm
  • The distance between air inlet and hole on top plate: 35 mm
  • The width of bottom cover plate: 135 mm
  • The center distance of bottom plate: 70 mm
  • Pneumatic connection: 1/2-14NPT
  • Bolts type: 2×3/8-24UNF
  • The natural height of rubber bellows: 205 mm
  • The static diameter of rubber bellows: 193 mm
OE Manufacturer/Part No.
Manufacturer Original Part No.
Contitech FD 120-20 736
Firestone Bellow 26C
Contitech 67667
Automann SP2B08RA-C736
MAC 2380 Z7
Advantages of The Rubber Bellows In Relation To Coil Springs
  • Best isolation degree in the market: The rubber bellow isolator is able to absorb up to 99% of the vibrations.
  • Uniform isolation properties: The rubber air isolators maintain constant natural frequency values with changing loads.
  • Long life cycle: The rubber bellow has a very low cost, as there is no friction between metal components, avoiding wear, and consequently being maintenance free.
  • Extension of the life of the machinery: Air bellows extend the life cycle of the equipment, due to their outstanding isolation properties.
  • Effective noise reduction: The rubber air bellow's natural frequency reduces structurally transmitted noise.
  • Compact installation height: The rubber bellow has a very low design height.
  • Height Control: The air pressure can be regulated guarantying a uniform operating height with alternating loads.
  • Wide size range: The bellows are able to isolate loads up to 450 kN for each elastomer.
We Have Other Double Convolution Rubber Air Actuators
AIRSUSTECH No. Other Part No.
2B6905 Firestone : W01-358-6905
Contitech : FD 200-19 315
Goodyear : 2B9-206/209
Hendrickson : 458431, 578923200/2, 3546905
Dayton: Sc2071
Leland 1685175C1
Navistar: 8030120
EZ Ride: 57006905
SAF Holland: 6389
Tuthill Ridewell : 1003586905C, As0020
Watson&Chalin Silent Drive: As6882
Triangle: 6325/4315
2B6283 Airtech : 113004(2B-220FB)
Bos-ch: 822419043
Festo : EB-250-185
2B7894 Firestone : W01-M58-7894
Contitech : FD 200-19 P04 1/4 M10
Goodyear : 2B9-287, S09208
Phoenix: SP 2B12R5
Airkraft : 113549, 4.229.1004.00
SAF: T2086660
Pirelli: Kf216
Taurus: 113549
2B7325 Firestone : W01-358-7325/26
Contitech : FD 120-20 509
Goodyear : 2B8-150/153/550
Hendrickson: S14395, 579923530, 227QS32
Mack: 57QK1113, Na1821, 800 3006
American Carrier: 57007325
SAF Holland: P10754
Sauerl: 1398567
E.R.F Ridewell : 1003587325C, 21065660
Terberg: 21065660

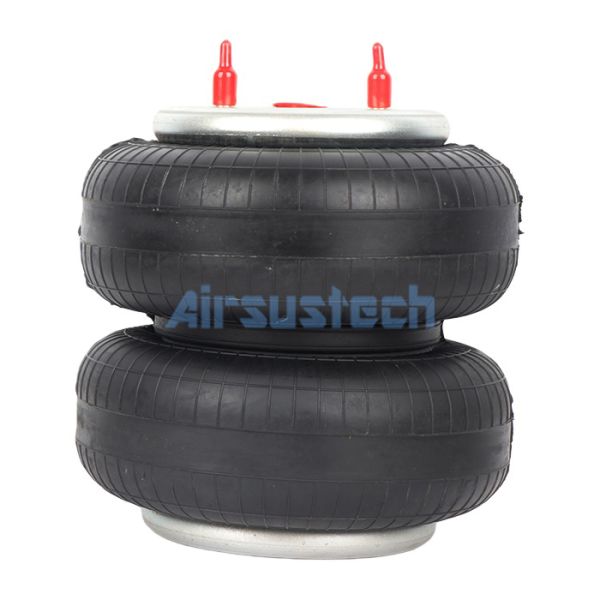

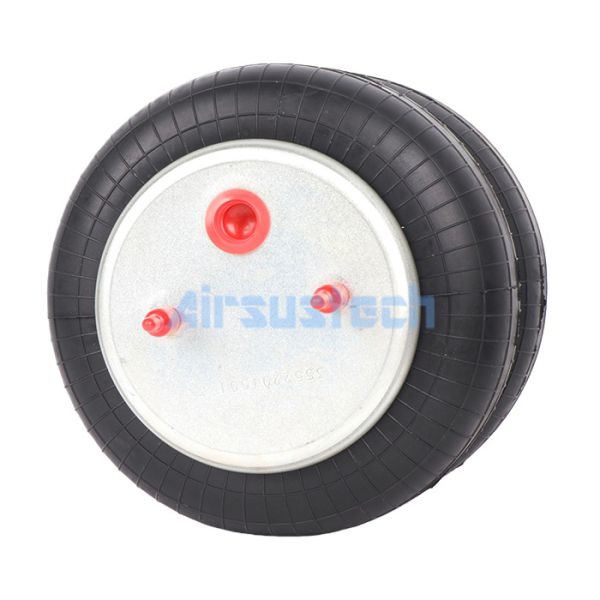

Industrial Rubber Air Bellows 2B12020 Real Pictures
Black Double Convoluted Air Spring by Contitech FD 120-20 736 for Reduce Noise
Black Double Convoluted Air Spring by Contitech FD 120-20 736 for Reduce Noise
Black Double Convoluted Air Spring by Contitech FD 120-20 736 for Reduce Noise
Engineers Measuring Product Specifications
Black Double Convoluted Air Spring by Contitech FD 120-20 736 for Reduce Noise
Advanced Production Equipments
