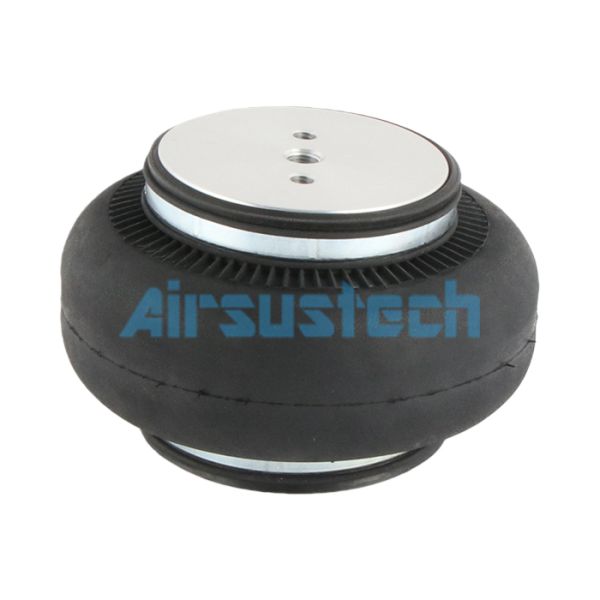

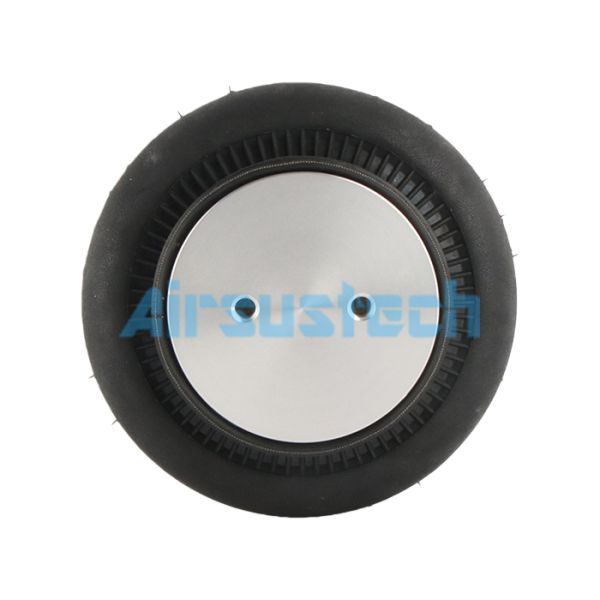

579-912-544 Goodyear Industrial Type Pneumatic Air Spring for Vibration Isolation

AIRSUSTECH 1K176120 Cross Code

The Information of 1K176120 Single Convoluted Air Bag

Diameter of the Top Cover Plate: 105 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 70 mm
Diameter of the Bottom Cover Plate: 105 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 70 mm
Screw (Nut) Thread Count for the Top Cover Plate: 2×M8
Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M8
Pneumatic Connection: ZG1/4''
Max Diameter of the Rubber Bellow: 195 mm
Design Height: 120 mm
Maximum Usable Height: 130 mm
Minimum Usable Height: 55 mm

Applications of Air Spring Technology

1. Material Handling Industry
Air springs are utilized in conveyor systems, lifting equipment, and automated handling machinery to provide vibration damping and precise load leveling, ensuring smooth material transfer and reduced equipment wear.

2. Lumber Industry
In sawmills and wood processing equipment, air bags offer effective vibration isolation for cutting machinery and sorting systems, improving operational stability while reducing maintenance requirements.

3. Paper Industry
Air suspension springs support paper manufacturing equipment by providing vibration control in rollers, cutting mechanisms, and processing lines, enhancing product quality and production efficiency.

4. Press Manufacturing
For various press types (mechanical, hydraulic, pneumatic), pneumatic air actuatos deliver crucial shock absorption and vibration isolation, maintaining precision while extending equipment service life.

These applications demonstrate the versatility of air springs in providing reliable vibration control, shock absorption, and operational stability across multiple industrial sectors.
