Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1T5716
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Max. Height :
505 MM
Max. Diameter :
231 MM
Gas Hole :
1/4
Firestone :
W01-358-5712
Warranty Special :
12 Months
Shipment :
By Sea, By Air, by DHL/Fedex/UPS
Description

Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly

Firestone Style 1T14C-7 Other Part Numbers

Manufacturer: Firestone

Model Number: W01-358-5712 / W013585712 / W01 358 5712

Model Number: WO1-358-5712 / WO13585712 / WO1 358 5712

Manufacturer: Firestone

Model Number: W01-358-5708 / W013585708 / W01 358 5708

Model Number: WO1-358-5708 / WO13585708 / WO1 358 5708

Manufacturer: Firestone

Model Number: W01-358-5716 / W013585716 / W01 358 5716

Model Number: WO1-358-5716 / WO13585716 / WO1 358 5716

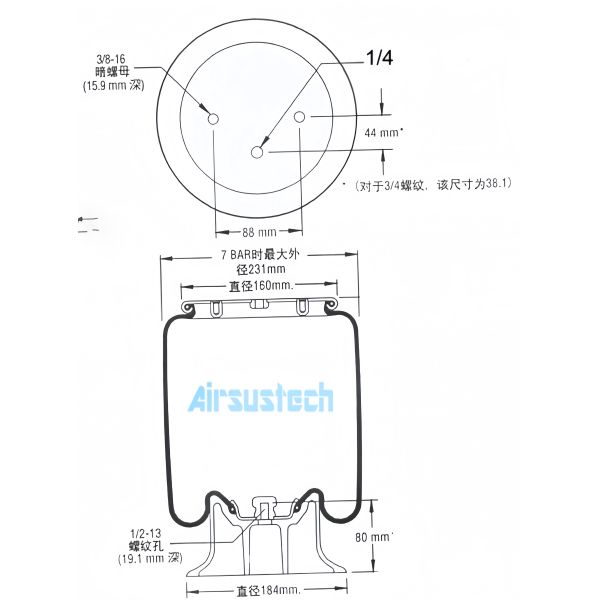

Firestone W01-358-5712 Technical Datas

[1] Top Cover Plate Diameter: 160 mm

[2] Piston Width: 184 mm

[3] Compressed Height: 205 mm

[4] Maximum Extended Height: 505 mm

[5] The Lenght of Piston: 80 mm

[6] The Center Distance Diameter of Top Plate: 88 mm

[7] The Distance Between Gas Fitting and Holes: 44 mm

[8] Air Inlet Standard: 1/4

[9] Threaded Holes Type: 3/8-16UNC

[10] The Max. Usable Diameter of Rubber Bellows: 231 mm

Why Choose AIRSUSTECH Air Springs?

1. Stable Vibration Damping Performance

A unique feature of AIRSUSTECH air spring dampers is that the system's natural frequency does not change significantly with load variations. This characteristic, combined with precise height control, makes them particularly suitable for installation at various mounting points in equipment with unbalanced loads.
2. Wide Size Range
AIRSUSTECH air spring dampers offer vibration isolation loads ranging from 0.44 kN to over 577 kN per mounting point.
3. Extended Equipment Lifespan
AIRSUSTECH air spring dampers significantly extend the lifespan of equipment due to their superior vibration isolation capabilities.
4. Effective Noise Reduction
Air spring dampers reduce noise transmitted through structures. AIRSUSTECH air spring dampers themselves do not generate noise because they do not have the flutter problems of traditional coil springs.
5. Versatile Applications
AIRSUSTECH air spring dampers can be used not only to protect vibrating mechanical structural parts but also extensively to isolate vibrations transmitted through structures to precision machinery.

AIRSUSTECH Supports and Services

  • Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
  • We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
  • Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

Firestone W01-358-5712 Related Images

Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring AssemblyPlastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly

Engineers Measuring Product Specifications

Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
Advanced Production Equipments
Plastic Piston Firestone Air Bag W01-358-5712 Rolling Lobe Air Spring Assembly
