Specifications
Model Number :
2H350255
Refer :
21 BR
Operation :
Gas-filled
Material :
Rubber and Aluminum Flange
Stroke :
231 MM
Manufacturer Warranty :
12 Months
Trademark :
AIRSUSTECH
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Center Distance :
287 MM
Description
Model 21 BR 89457 Double Convoluted Air Spring 2H350255 Industrial Air Bag
AIRSUSTECH 2H350255 Cross Model 21 BR Specifications
Center Distance of Flange Rings: 287 MM
Cover Plate Diameter: 309 MM
Minimum Usable Height: 90 MM
Maximum Extended Height: 321 MM
Natural Height: 255 MM
Max. Outer Diameter of Rubber Bellows: 380 MM
Working Stroke: 231 MM
2H350255 Air Spring Cross References
Model 21 BR 89457
Model 21 BR
Model 89457
Model 21A BR 97300
Model 21B BR 92154
The Characteristics of AIRSUSTECH Air Springs
  • Constructed from a rubber or fabric diaphragm, with open flanges or perforated metal plates at both ends, and equipped with threaded bushings or screws for mounting.
  • It can be used as an actuator for pneumatic or hydraulic cylinders, or as a resilient damping bearing with high vibration isolation performance.
  • It requires no expensive control unit and typically operates even in low-pressure pneumatic circuits, suitable for dry and lubricated environments. It has a compact size. It can operate even between non-parallel or misaligned plates. It has a long service life and requires no maintenance. There is no friction due to the absence of sliding elements. It operates quietly.
We Have Other Rubber Air Bags
Model Standard Code Hightemp Code Maximum OD (mm) Minimum Height (mm) Maximum Height (mm) Design Height (mm)
16 93029 93086 153 46 91 70
131 94047 - 165 50 110 85
110 93113 93114 210 51 151 101
88540 93079 210 45 145 95
88820 89023 210 45 145 95
116 93027 - 231 46 152 100
19 94016 95015 325 51 151 127
94014 - 325 43 143 127
23B 202665 - 165 65 205 150
26 84181 89422 220 85 245 165
20 86600 88538 255 80 265 170
245 93740 202344 270 85 310 185
22 94091 - 325 88 288 183
88544 89425 325 80 280 175
21 BR 89457 - 380 80 290 180
21 A BR 97300 - 435 85 315 190
21B BR 92154 - 440 85 385 200
28 BR 92527 445 80 310 185
29 93056 - 570 90 330 195
31 93166 - 570 80 320 185
95210 - 700 85 700 300
325 203332 - 400 80 500 250
322 92615 310 133 408 265 450
89413 - 310 125 400 257
321 88110 - 380 125 400 257

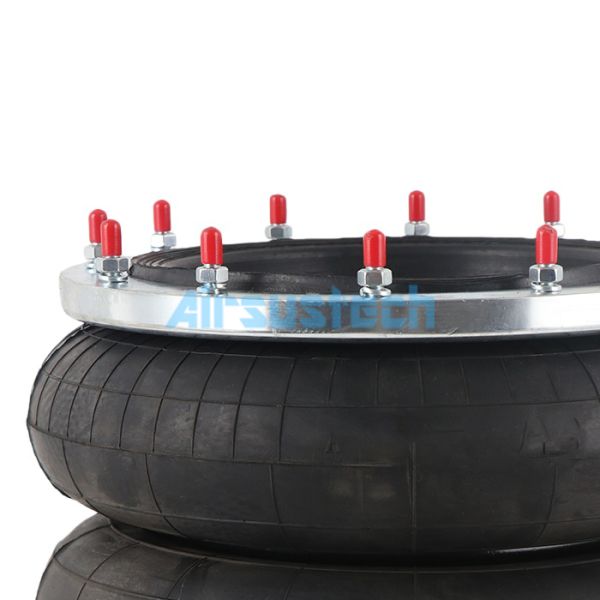

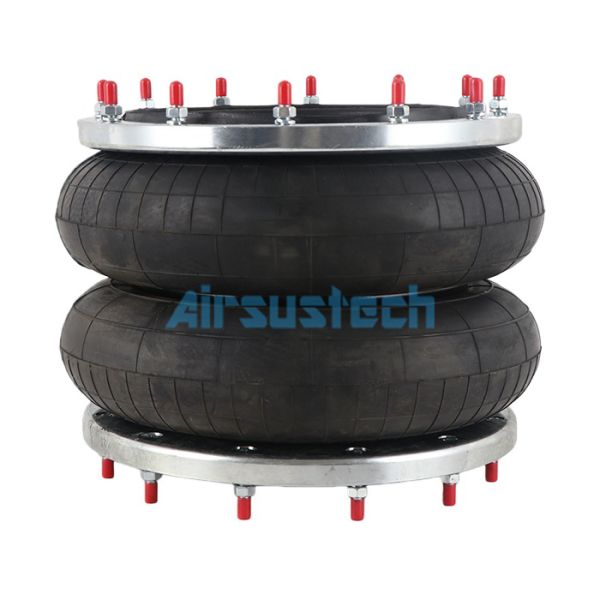

AIRSUSTECH 2H350255 Cross Model 21 BR Real Pictures
Model 21 BR 89457 Double Convoluted Air Spring 2H350255 Industrial Air Bag Model 21 BR 89457 Double Convoluted Air Spring 2H350255 Industrial Air Bag
Our Technicians Measured The Specifications of Air Springs
Model 21 BR 89457 Double Convoluted Air Spring 2H350255 Industrial Air Bag
Factory Workshop
Model 21 BR 89457 Double Convoluted Air Spring 2H350255 Industrial Air Bag
