1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
Specifications
Model Number :
G3014
Maintenance :
Low
Certification :
ISO/TS16949:2009
Air Port Size :
1/8 NPT
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Cross :
Firestone W02-358-3001
Material :
Rubber and Plastic Stud
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Full Travel :
2 In.
Price :
Negotiable
Color :
Black
Supply Ability :
1000 PCS/Week
Compatibility :
Universal
Brand Name :
AIRSUSTECH
Spscification :
Imperial Size
Place of Origin :
Guangzhou, China
Type of Goods :
Reversible Sleeve Air Spring
Packaging Details :
Strong Carton Box or as Customers Requirement
Origin :
China
Description
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
Product Specifications
Minimum Height 1.5 inch
Maximum Height 3.5 inch
Threaded Hole on Bottom Plate 5/16-18
Bottom Plate Diameter 2.88 inch
Maximum Outer Diameter 3.4 inch
Upper Plate Diameter 2.4 inch
Air Fitting 1/8 NPT
Screws Type on Top Plate 5/8-11
Design Height 2.5 inch
Stroke 2 inch
OEM Replacement Compatibility
  • Firestone W02-358-3001, WO2-358-3001, W023583001, WO23583001
  • Firestone W02-358-3000, WO2-358-3000, W023583000, WO23583000
  • Goodyear 1S3-013, 1S3013, 1S3 013
  • ContiTech SK37-6P02, SK376P02, SK37 6P02
  • Prevost 950208
  • Endyne Bellow TI-1S3-013, TI1S3013, TI 1S3 013
Why Choose AIRSUSTECH G3014 as Firestone Replacement
The AIRSUSTECH G3014 sleeve air spring provides a reliable, cost-effective alternative to Firestone W02-358-3001. Both products feature similar sleeve-type air spring design with comparable mounting configurations and vibration isolation performance.
  • Identical sleeve air spring design principles
  • Compatible mounting configuration
  • Reliable vibration isolation performance
  • Versatile application compatibility
  • Cost-effective replacement solution
Firestone 1M1A-0 Two Ply Bellows Air Spring Variants
Description Assembly Order Numbers
Blind nut, 1/8NPT, plastic stud

W02-358-3000, W023583000, W02 358 3000

WO2-358-3000, WO23583000, WO2 358 3000
Blind nut, 1/8NPT, brass stud

W02-358-3001, W023583001, W02 358 3001

WO2-358-3001, WO23583001, WO2 358 3001
Blind nut, 1/8NPT, brass stud, stainless steel ring

W02-358-3005, W023583005, W02 358 3005

WO2-358-3005, WO23583005, WO2 358 3005

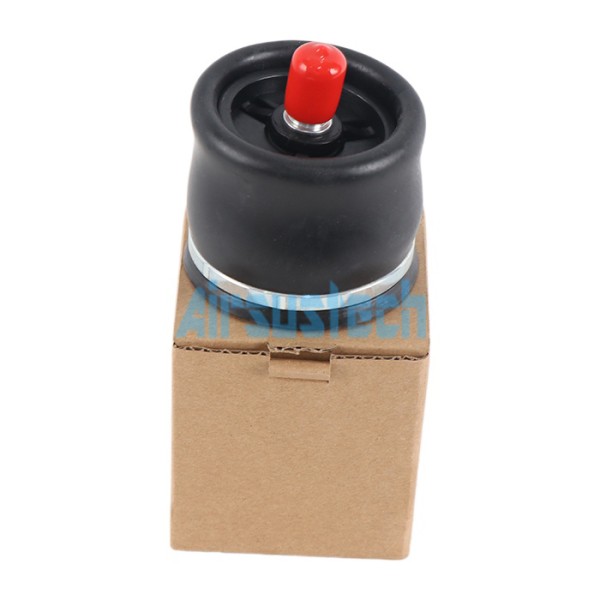

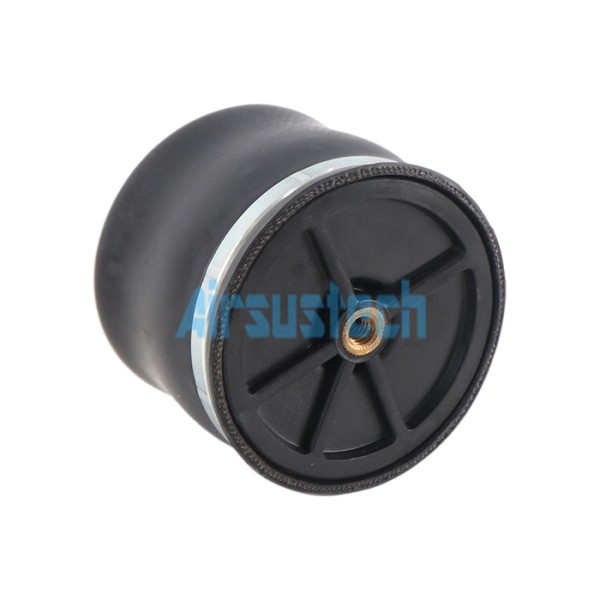

Product Images
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud 1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
AIRSUSTECH Air Spring Product Range
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
Advanced Manufacturing Capabilities
1M1A-0 Firestone Reversible Sleeve Air Actuator W023583001 1/8 NPT Brass Stud
