Specifications
Model Number :
1H1710-12
Type of Goods :
Flange Connection
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Full Stroke :
4 Inch
Flange Diameter :
20.36 Inch
Price :
Negotiable
Manufacturer :
AIRSUSTECH
Supply Ability :
1000 PCS/Week
PCD :
19 Inch
Part Number :
1H1710-12
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Firestone :
W01-358-7727
Place of Origin :
Guangzhou, China
Origin :
China
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Certification :
ISO/TS16949:2009
Brand Name :
AIRSUSTECH
Bolts Type :
24 (3/8-24)
Description
W01-358-7727 Firestone Single Convoluted Rubber Air Spring
19 Inch PCD Style 126 industrial air spring designed for heavy-duty applications with superior performance and durability.
Product Specifications
Compressed height2 inch
Maximum height6 inch
PCD19 inch
Flange ring diameter20.36 inch
Bolts type24 (3/8-24)
Maximum outer diameter22.4 inch
Stroke4 inch
Design height5 inch
Compatible Reference Numbers
  • Contitech FT 1710-38 VP
  • Contitech FT 171038 VP
  • Contitech FT 1710 38 VP
  • Contitech Bellows Number 61782
  • Firestone W01-358-0987
  • Firestone WO1-358-0987
  • Firestone W013580987
  • Firestone WO13580987
  • Firestone W01 358 0987
  • Firestone WO1 358 0987
  • Firestone W01-358-7727
  • Firestone WO1-358-7727
  • Firestone W013587727
  • Firestone WO13587727
  • Firestone W01 358 7727
  • Firestone WO1 358 7727
Firestone Style 126 Air Spring Assembly OEM Numbers
Description Assembly Order No.
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers W01-358-7727, W013587727, W01 358 7727
WO1-358-7727, WO13587727, WO1 358 7727
Rolled Plate Assembly, 1/2 blind nuts, 3/4 NPT W01-358-7726, W013587726, W01 358 7726
WO1-358-7726, WO13587726, WO1 358 7726
Rubber bellows only W01-358-1026, W013581026, W01 358 1026
WO1-358-1026, WO13581026, WO1 358 1026
Product Technical Parameters
Dynamic Characteristics at 5.0 in. Design Height
Volume @ 100 PSIG = 1315 in³
Gage Pressure (PSIG) LOAD (lbs.) Spring Rate (lbs./in.) CPM HZ
408,6305,8691552.59
6013,8705,2441442.42
8018,45010,1071392.32
10023,20012,4031372.29
Force Table
Assembly Height (in.) Volume @ 100 PSIG (in³) Pounds Force @ 20 PSIG @ 40 PSIG @ 60 PSIG @ 80 PSIG @ 100 PSIG
6.016941800400071001090015000
5.0147342208630138701845023200
4.01196520010840166302246028070
3.0875601012040190202596032000

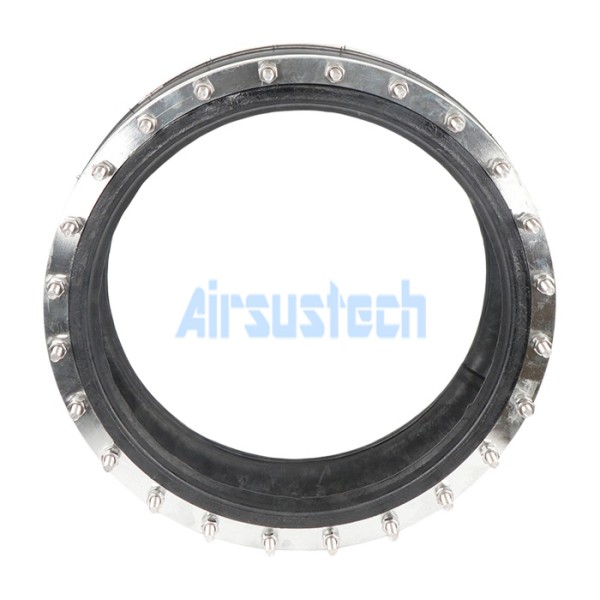

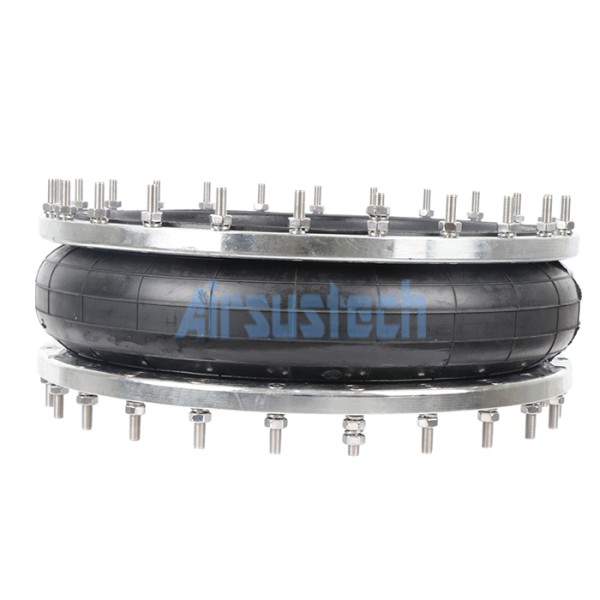

Product Images
W01-358-7727 Firestone Single Convoluted Rubber Air Spring 19 Inch PCD Style 126 W01-358-7727 Firestone Single Convoluted Rubber Air Spring 19 Inch PCD Style 126
AIRSUSTECH Air Spring Types
W01-358-7727 Firestone Single Convoluted Rubber Air Spring 19 Inch PCD Style 126
Advanced Manufacturing Capabilities
W01-358-7727 Firestone Single Convoluted Rubber Air Spring 19 Inch PCD Style 126
